Product Details

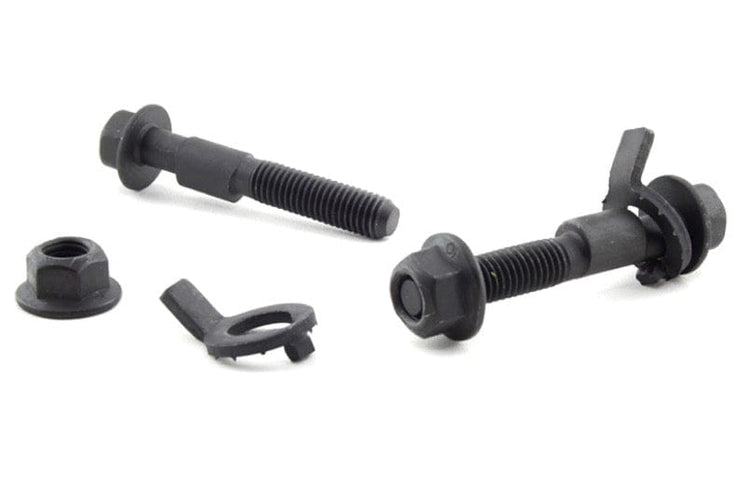

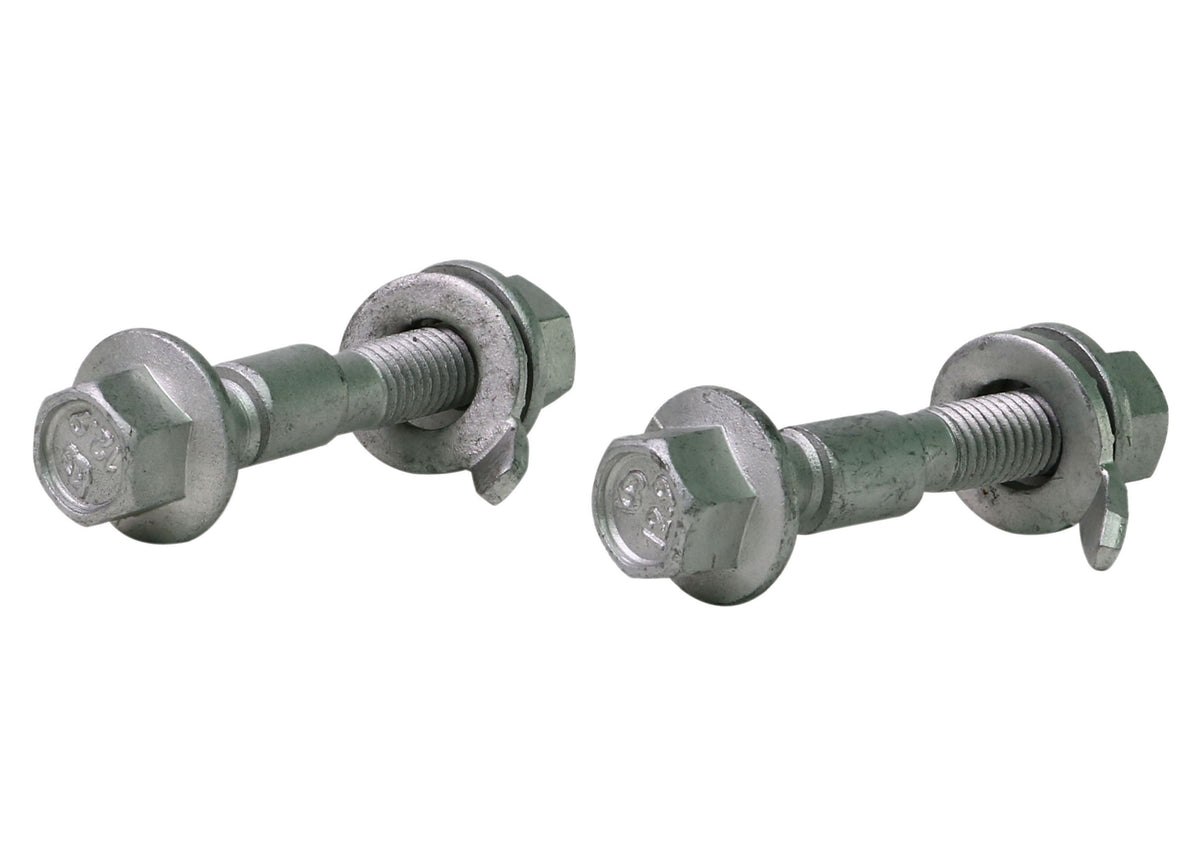

These Whiteline 12mm Adjustable Front Camber Bolts fit the 2007-2009 Suzuki Grand Vitara Luxury (JT). Whiteline's note for this fit: Adds +/- 0.75 degrees Camber. It goes on the front of the vehicle. The part number is KCA412. Included: 2 bolts. Chassis code: JT.

Alignment problems often come down to one angle the factory settings cannot reach. After a car is lowered, fitted with different wheels, or simply gets older, camber can drift outside the range a shop is able to correct. These bolts swap in for the originals and give the technician the extra movement needed.

Whiteline rates the install as difficult and lists about 1 hour. An alignment is required after installation.

Features

  • Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
  • Install guide: Whiteline packs an install guide with it.
  • Hardware: The matching nuts are included.
  • Locking washer: A toothed lock washer secures the adjustment.
  • Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
Part Number KCA412
Part Name Camber Bolt
Vehicle 2007-2009 Suzuki Grand Vitara Luxury
Chassis Code JT
Adjustable Yes
Bolt Thread Diameter 12 mm
Color Gray
Installation Difficulty Difficult
Installation Time (hrs) 1
Kit Contents 2 Bolts
Nut Included Yes
Vehicle Placement Front
Wheel Alignment Required Yes
Notes Adds +/- 0.75 Degree Camber

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2007SuzukiGrand VitaraAdds +/- 0.75 Degree Camber
2008SuzukiGrand VitaraAdds +/- 0.75 Degree Camber
2009SuzukiGrand VitaraAdds +/- 0.75 Degree Camber
