Product Details

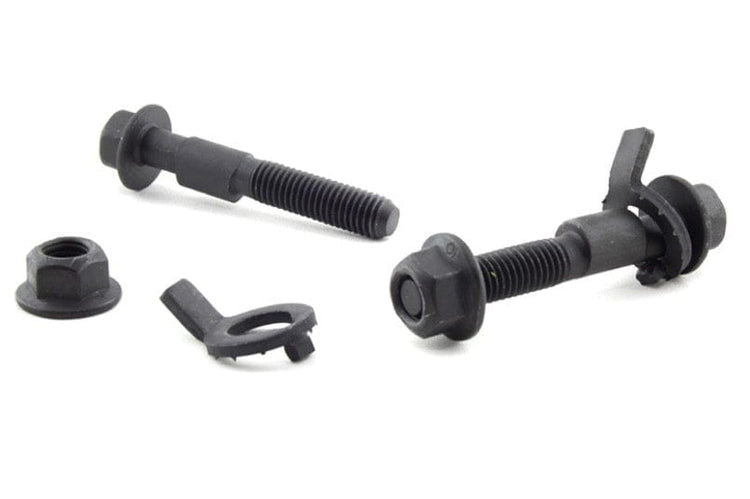

Looking for front camber bolts for your 1999-2002 Suzuki Grand Vitara JLX (FT)? The Whiteline 12mm Adjustable Front Camber Bolts are made for it. Order it as part number KCA412. Trim named on the listing: JLX. The kit contains 2 bolts. Position: front. Application note: Adds +/- 0.75 degrees Camber.
Alignment problems often come down to one angle the factory settings cannot reach. After a car is lowered, fitted with different wheels, or simply gets older, camber can drift outside the range a shop is able to correct. These bolts swap in for the originals and give the technician the extra movement needed.
Installation is rated difficult, with about 1 hour of work listed. An alignment is required after installation.
Features
- Hardware: Nuts are supplied with the bolts.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Locking washer: The toothed lock washer keeps the adjustment from slipping once it is tightened.
- Install guide: An install guide comes in the box.
- Camber adjustment: Helps keep camber in range so the tire holds its footprint through a corner.
Specifications
| Part Number | KCA412 |
| Part Name | Camber Bolt |
| Vehicle | 1999-2002 Suzuki Grand Vitara JLX |
| Chassis Code | FT |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Color | Gray |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bolts |
| Nut Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.75 Degree Camber |
