Product Details

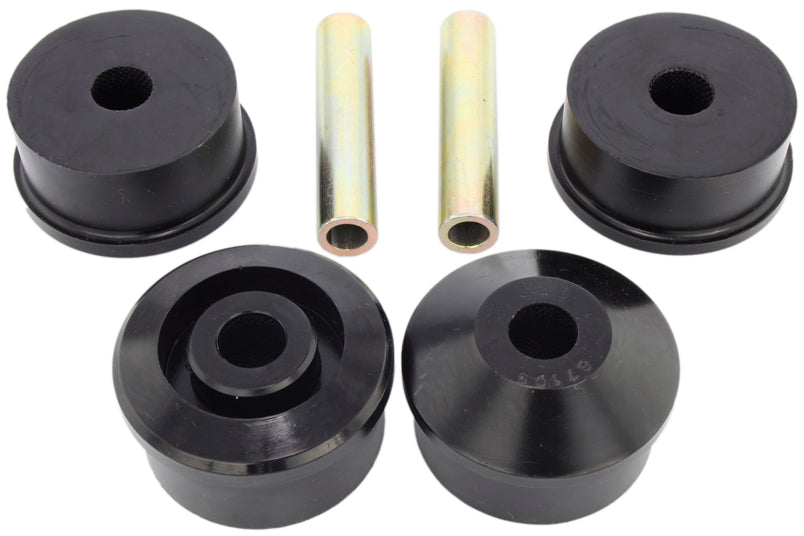

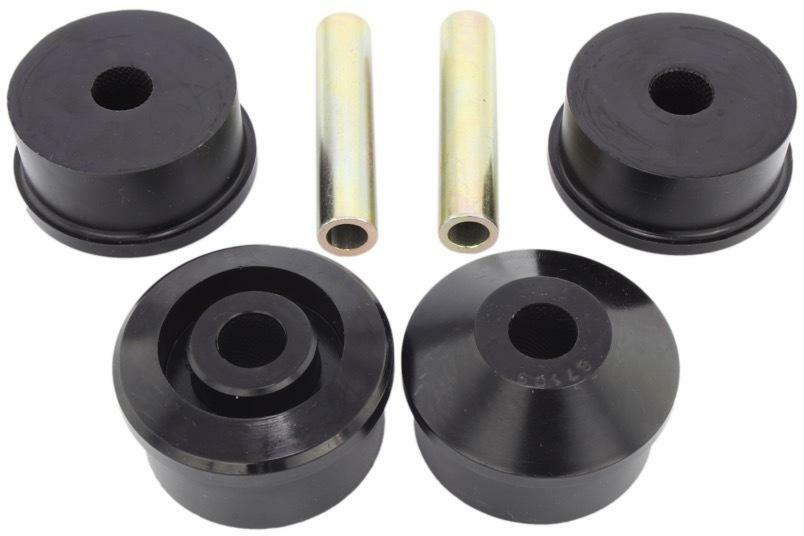

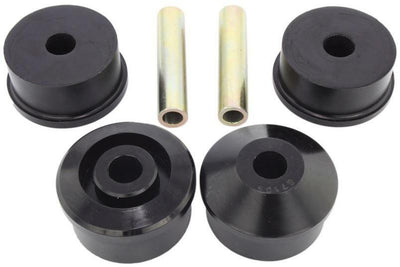

This Whiteline Rear Beam Axle Front Bushing Kit fits the 2002-2004 Volkswagen Beetle Turbo S (A4). Chassis code: A4. Part number W63205. The kit contains 4 bushings and 2 tubes. It goes on the rear of the vehicle.

On many front-wheel-drive cars the axle at the rear is a beam that attaches to the body through pivot bushings. Those bushings take the cornering and braking loads, and soft or worn ones let the rear end move and steer slightly on its own. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 4 hours. Get the car aligned once it is back on the ground. We also list Front Control Arm Lower Inner Front Bushing, Heavy Duty Blade Adjustable 24mm Rear Sway Bar, and Heavy Duty 22mm Front Sway Bar for the Beetle.

Features

  • Finish: The metal parts are powder coated for durability.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number W63205
Part Name Beam Axle Bushing
Vehicle 2002-2004 Volkswagen Beetle Turbo S
Chassis Code A4
Bushing 1 Inner Diameter 12.6 mm
Bushing 1 Outer Diameter 69.2 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002VolkswagenBeetleFWD
2003VolkswagenBeetleFWD
2004VolkswagenBeetleFWD
