Product Details

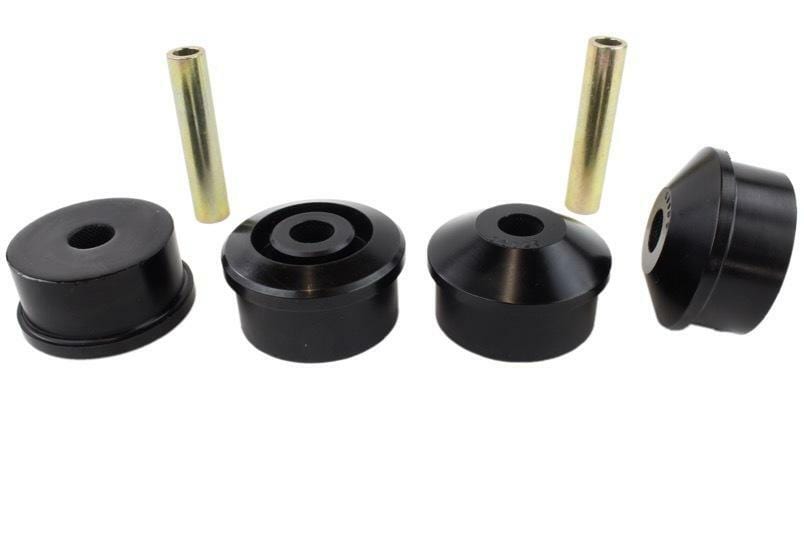

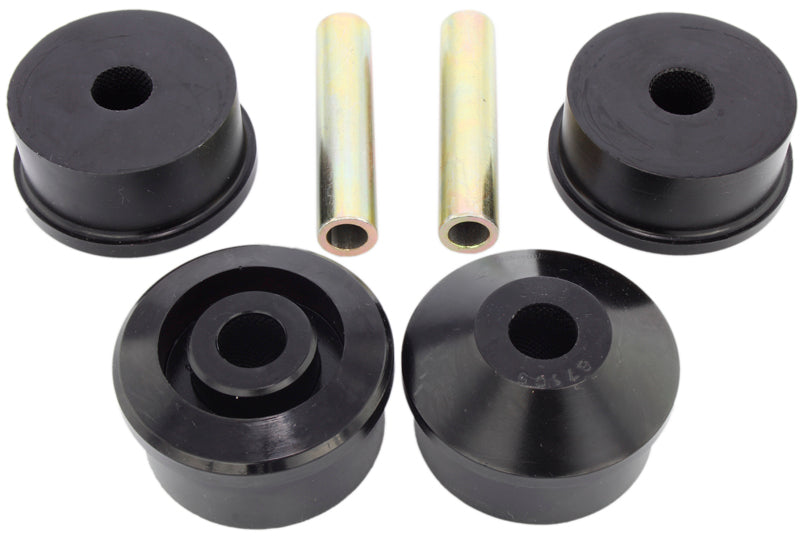

This Whiteline Rear Beam Axle Front Bushing Kit fits the 2001-2002 Volkswagen Beetle Sport (A4). Part number W63205. In the box: 4 bushings and 2 tubes. This part is for the rear of the vehicle.

Beam axle bushings take loads from braking and cornering together. Replacing worn ones restores the axle's location and takes out the slack that builds up with age. Polyurethane resists deflection far better than the soft rubber it replaces.

Installation is rated moderate, with about 4 hours of work listed. An alignment is required after installation. To go with it on the Beetle, see Front Control Arm Lower Inner Front Bushing, Heavy Duty Blade Adjustable 24mm Rear Sway Bar, and Heavy Duty 22mm Front Sway Bar.

Features

  • Finish: The metal parts are powder coated for durability.
  • Install guide: Written install instructions are included with the part.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number W63205
Part Name Beam Axle Bushing
Vehicle 2001-2002 Volkswagen Beetle Sport
Chassis Code A4
Bushing 1 Inner Diameter 12.6 mm
Bushing 1 Outer Diameter 69.2 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001VolkswagenBeetleFWD
2002VolkswagenBeetleFWD
