Product Details

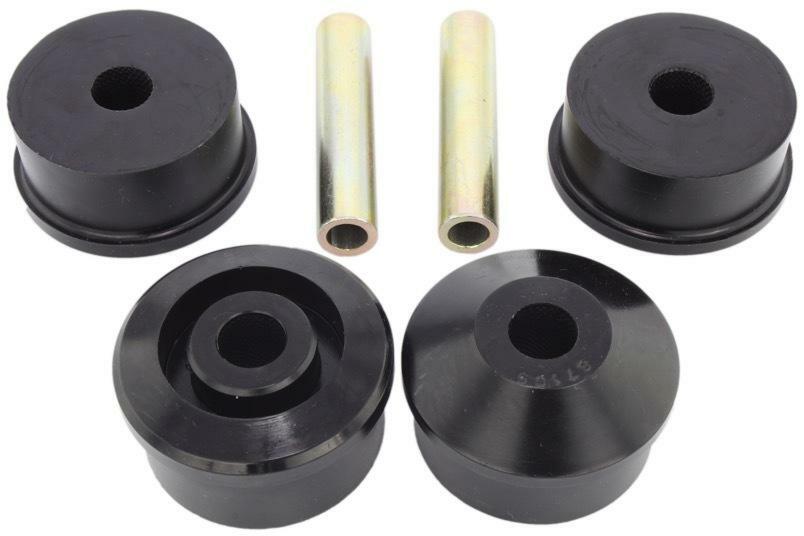

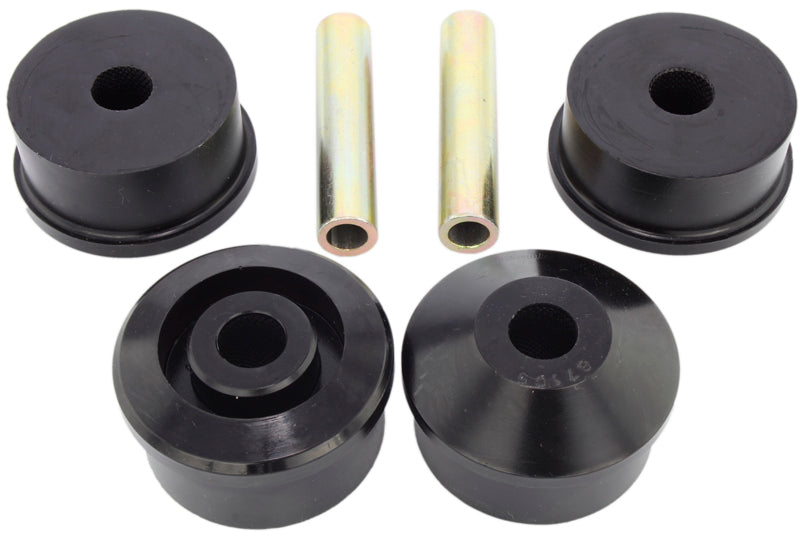

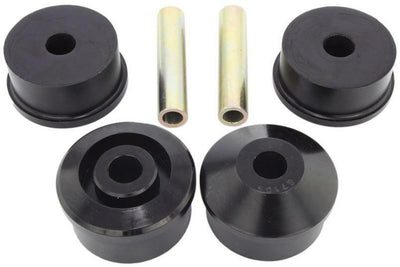

This Whiteline Rear Beam Axle Front Bushing Kit fits the 1999-2005 Volkswagen Beetle GL, GLS (A4). Included: 4 bushings and 2 tubes. Chassis code: A4. Order it as part number W63205. Placement: rear.

Beam axle bushings take loads from braking and cornering together. Replacing worn ones restores the axle's location and takes out the slack that builds up with age. Polyurethane resists deflection far better than the soft rubber it replaces.

Expect a moderate job of about 4 hours. Get the car aligned once it is back on the ground. To go with it on the Beetle, see Front Control Arm Lower Inner Front Bushing, Heavy Duty Blade Adjustable 24mm Rear Sway Bar, and Heavy Duty 22mm Front Sway Bar.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Finish: A powder coated finish resists corrosion and wear.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Install guide: An install guide comes in the box.
Specifications
Part Number W63205
Part Name Beam Axle Bushing
Vehicle 1999-2005 Volkswagen Beetle GL, GLS
Chassis Code A4
Bushing 1 Inner Diameter 12.6 mm
Bushing 1 Outer Diameter 69.2 mm
Bushing Quantity 4 Bushings
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Bushings, 2 Tubes
Material Polyurethane
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1999VolkswagenBeetleFWD
2000VolkswagenBeetleFWD
2001VolkswagenBeetleFWD
2002VolkswagenBeetleFWD
2003VolkswagenBeetleFWD
2004VolkswagenBeetleFWD
2005VolkswagenBeetleFWD
