Product Details

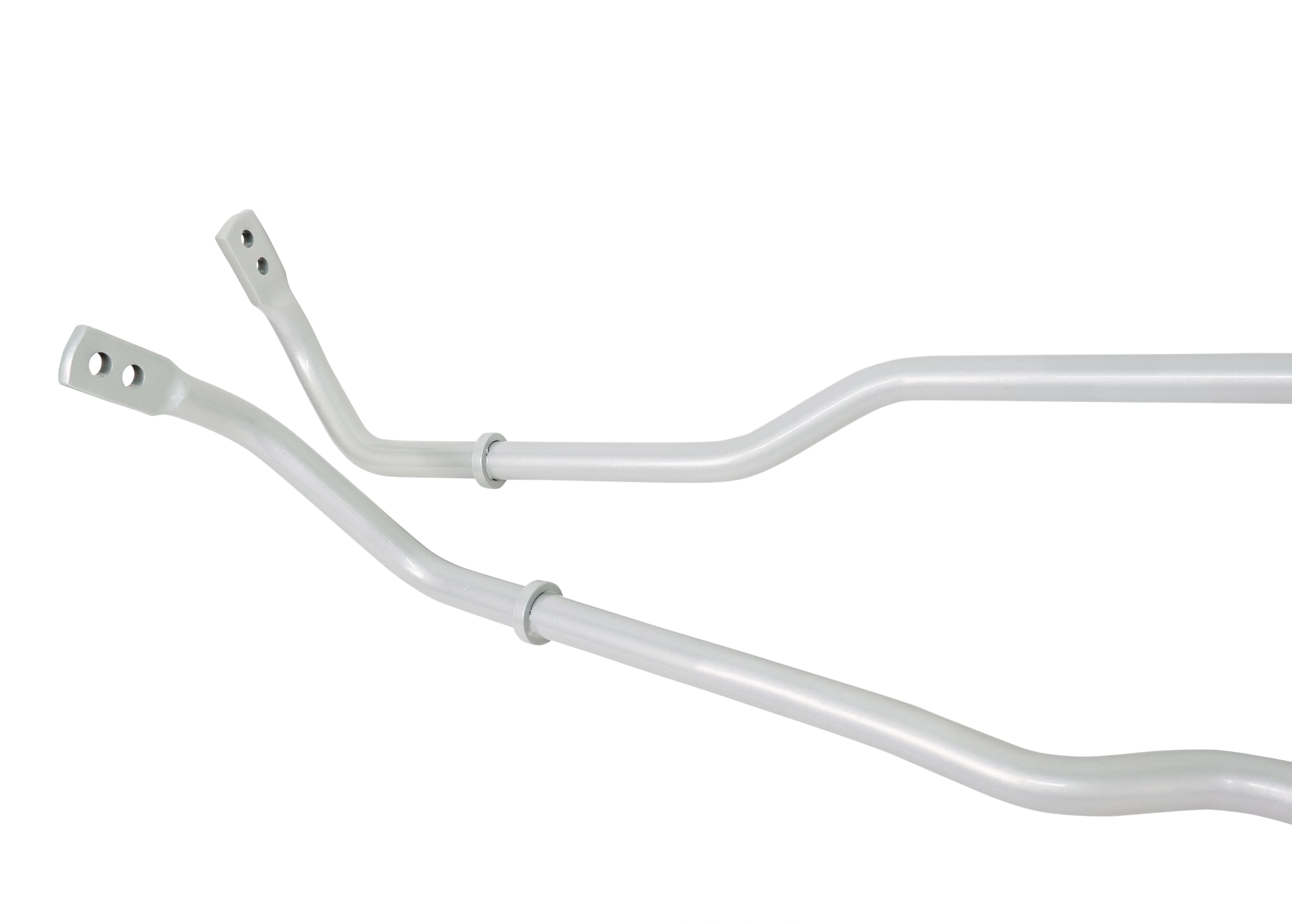

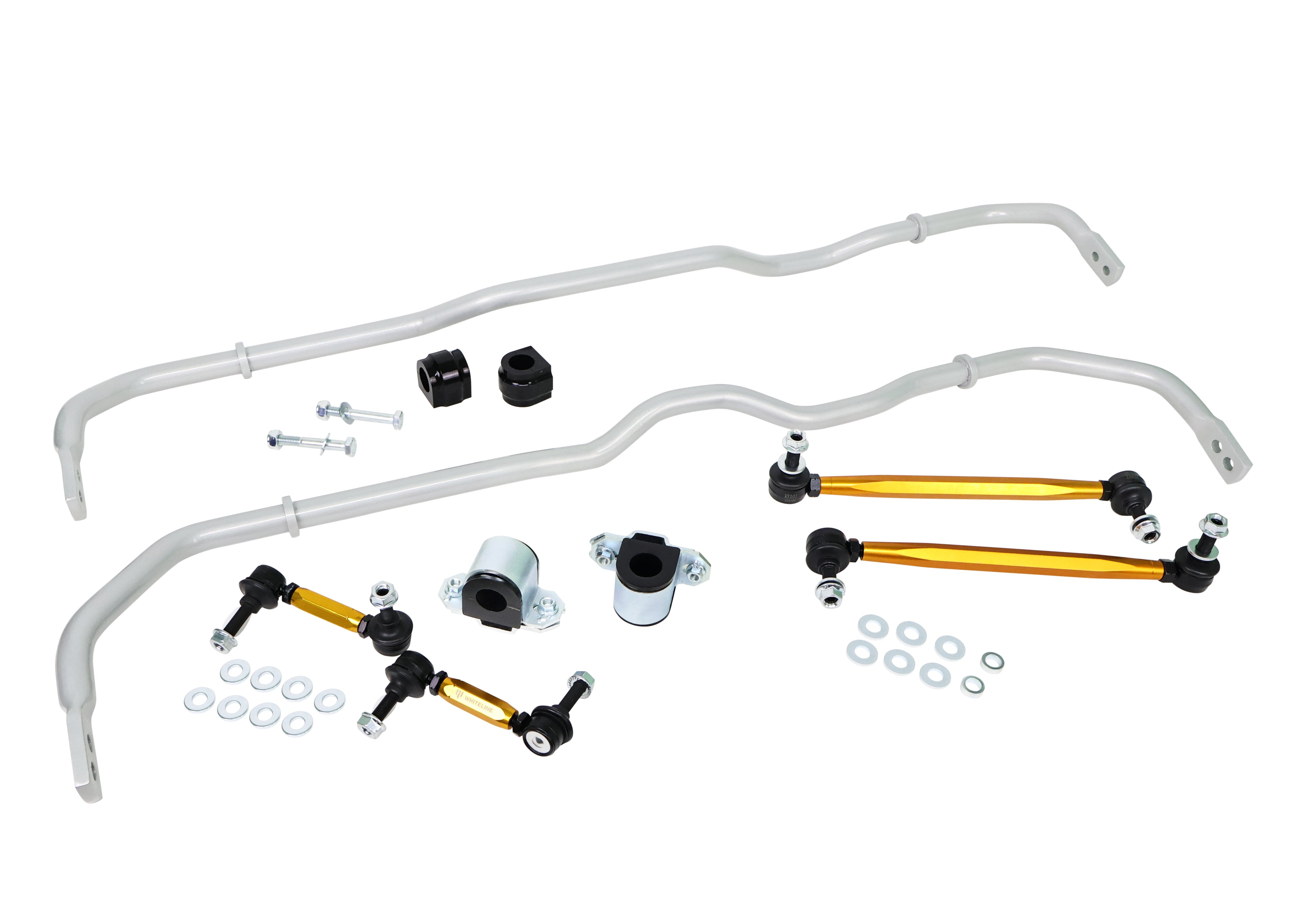

This Whiteline Front and Rear Sway Bar Kit fits the 2012-2013 Volkswagen Golf R (MK6). Part number BWK004. In the box: 2 sway bars, 4 links, 4 bushings, 4 saddles, 2 plates, 2 lateral locks, 6 bolts, 14 washers, and 4 nuts. It goes on the front and rear of the vehicle.

A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. A matched front and rear set lets you control not only how much the car rolls but also how its balance feels. Adjustable mounting points let you step the stiffness up or down without changing the bar.

Expect a moderate job of about 4 hours. Get the car aligned once it is back on the ground. We also list Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Rear Bushing for the Golf R.

Features

  • PTFE lined: A PTFE lining lowers friction so the bushing needs no lubrication.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Lateral locks: Built-in lateral locks hold the bar in position side to side.
  • Forged ends: Forged ends add strength at the point where the bar connects to the link.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
Specifications
Part Number BWK004
Part Name Sway Bars
Vehicle 2012-2013 Volkswagen Golf R
Chassis Code MK6
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 24 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 2 Sway Bars, 4 Links, 4 Bushings, 4 Saddles, 2 Plates, 2 Lateral Locks, 6 Bolts, 14 Washers, 4 Nuts
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 24 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Vehicle Placement Front and Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012VolkswagenGolf RAWD
2013VolkswagenGolf RAWD
