Product Details

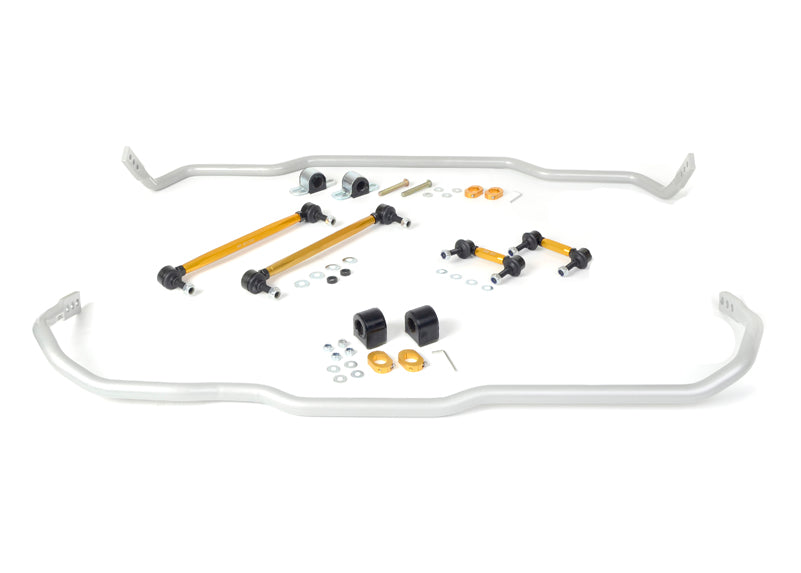

This Whiteline Front and Rear Sway Bar Kit fits the 2008-2014 Audi TT (8J). Whiteline's note for this fit: Suits models with rear control arm link mount: contains BWF19XZ, BWR20XZ, KLC167A and KLC141. Position: front and rear. Whiteline part number: BWK002. You receive 2 sway bars, 4 links, 4 bushings, 2 saddles, 4 lateral locks, 2 spacers, 2 bolts, 22 washers, and 4 nuts.

A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. A matched front and rear set lets you control not only how much the car rolls but also how its balance feels. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Expect a moderate job of about 4 hours. An alignment is required after installation. To go with it on the Audi TT, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Front Sway Bar Link.

Features

  • Lateral locks: Lateral locks keep the bar centered under cornering load.
  • Bushing compound: Bushings made of a low-compliance elastomer cut flex and movement in the suspension.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Preload-free setup: Setting the length on the car lets the bar rest without preload.
  • Install guide: Whiteline packs an install guide with it.
Specifications
Part Number BWK002
Part Name Sway Bars
Vehicle 2008-2014 Audi TT
Chassis Code 8J
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 24 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 2 Spacers, 2 Bolts, 22 Washers, 4 Nuts
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 24 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Vehicle Placement Front and Rear
Wheel Alignment Required Yes
Notes Sway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008AudiTT4WDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2008AudiTTFWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2009AudiTT4WDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2009AudiTTFWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2010AudiTT4WDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2010AudiTTFWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2011AudiTT4WDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2011AudiTTFWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2012AudiTT4WDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2012AudiTTFWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2013AudiTT4WDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2013AudiTTFWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2014AudiTT4WDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2014AudiTTFWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
