Product Details

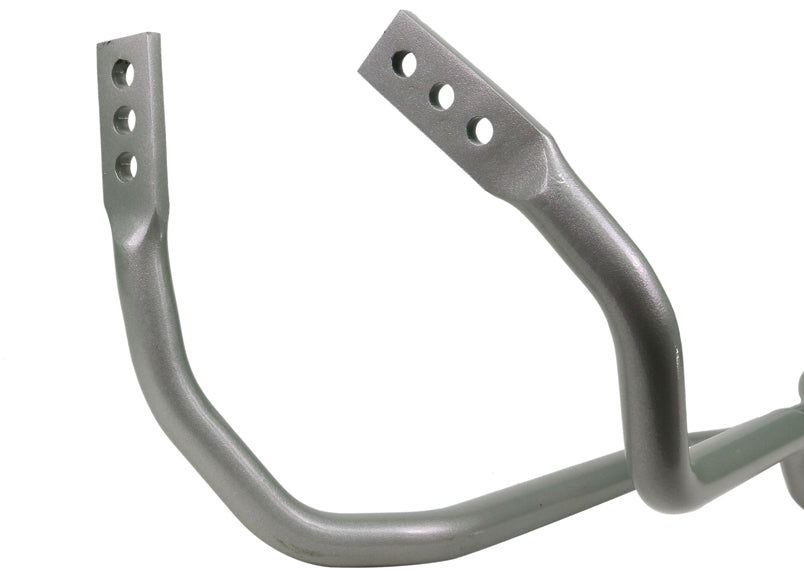

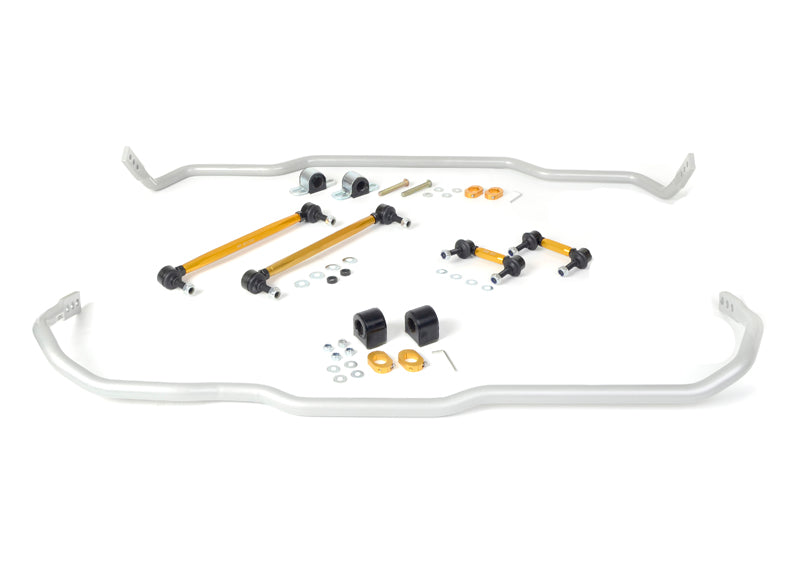

This Whiteline Front and Rear Sway Bar Kit fits the 2004-2014 Audi A3 (8P). Whiteline's note for this fit: Suits models with rear control arm link mount: contains BWF19XZ, BWR20XZ, KLC167A and KLC141. Whiteline part number: BWK002. The kit contains 2 sway bars, 4 links, 4 bushings, 2 saddles, 4 lateral locks, 2 spacers, 2 bolts, 22 washers, and 4 nuts. It goes on the front and rear of the vehicle.

Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 4 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Audi A3: Adjustable Rear Sway Bar Link, Adjustable Front Sway Bar Link, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Bar mounts: Internally knurled mount bushings with lips that hold grease keep the bar lubricated.
  • Rigid design: A stiffer design than the factory part gives a more immediate response.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Install guide: Written install instructions are included with the part.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Forged ends: Strength at the bar-to-link connection comes from forged ends.
Specifications
Part Number BWK002
Part Name Sway Bars
Vehicle 2004-2014 Audi A3
Chassis Code 8P
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 24 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 2 Sway Bars, 4 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 2 Spacers, 2 Bolts, 22 Washers, 4 Nuts
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 24 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Vehicle Placement Front and Rear
Wheel Alignment Required Yes
Notes Sway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2005AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2006AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2007AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2008AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2009AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2010AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2011AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2012AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2013AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
2014AudiA3FWDSway bar Front 24mm (3 point adjustable) and Rear 24mm (3 point adjustable). Suits models with rear control arm link mount - contains BWF19XZ, BWR20XZ, KLC167A and KLC141 - essential to Activate more grip
