Product Details

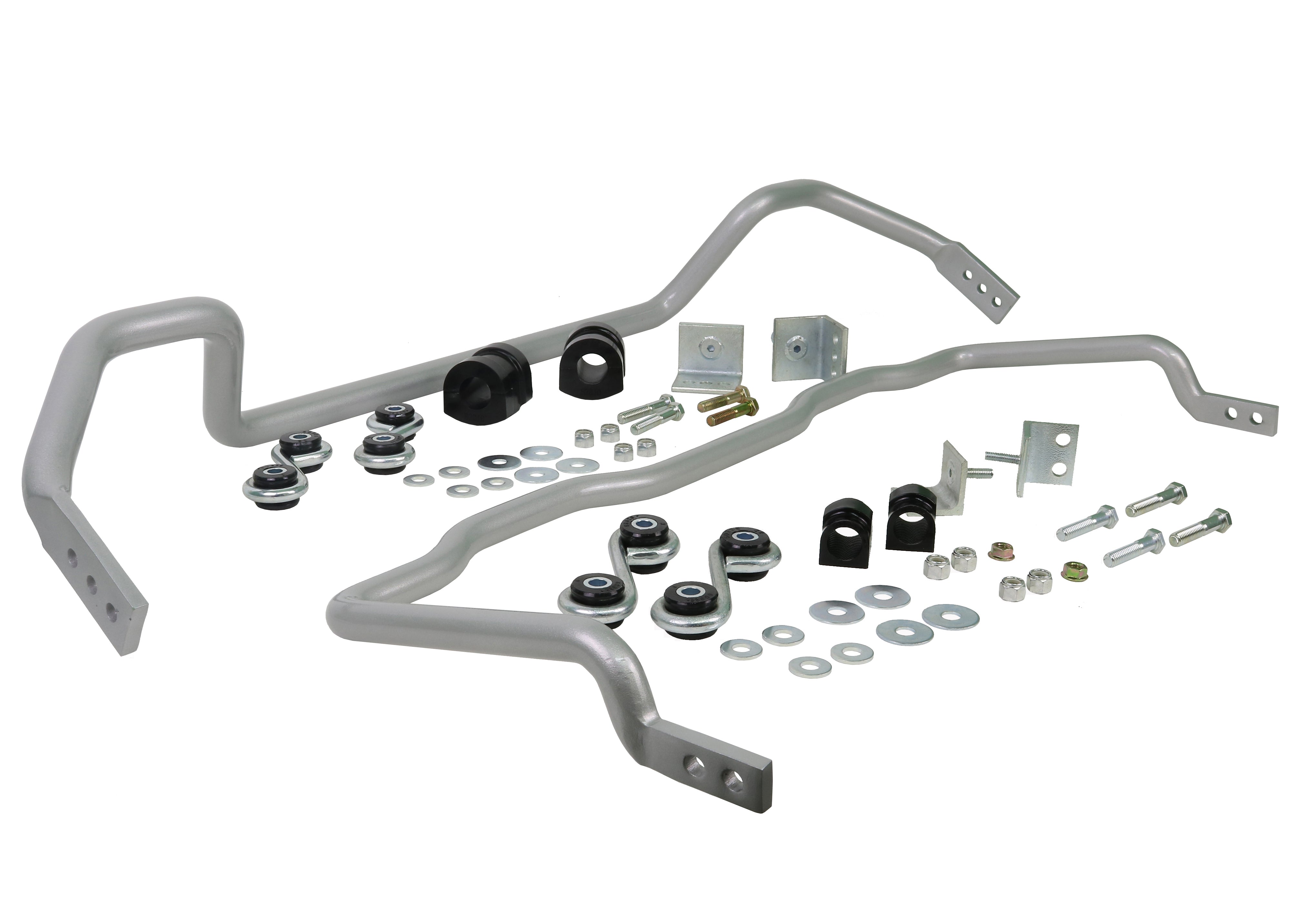

This Whiteline Front and Rear Sway Bar Kit fits the 1997-1998 BMW 323i. Included: 2 sway bars, 4 links, 4 bushings, 4 brackets, 8 bolts, 18 washers, and 10 nuts. Application note: Includes BBF39Z and BBR38Z, Front sway bar fits vehicles with control arm end link mounting. Placement: front and rear. The part number is BBK001.

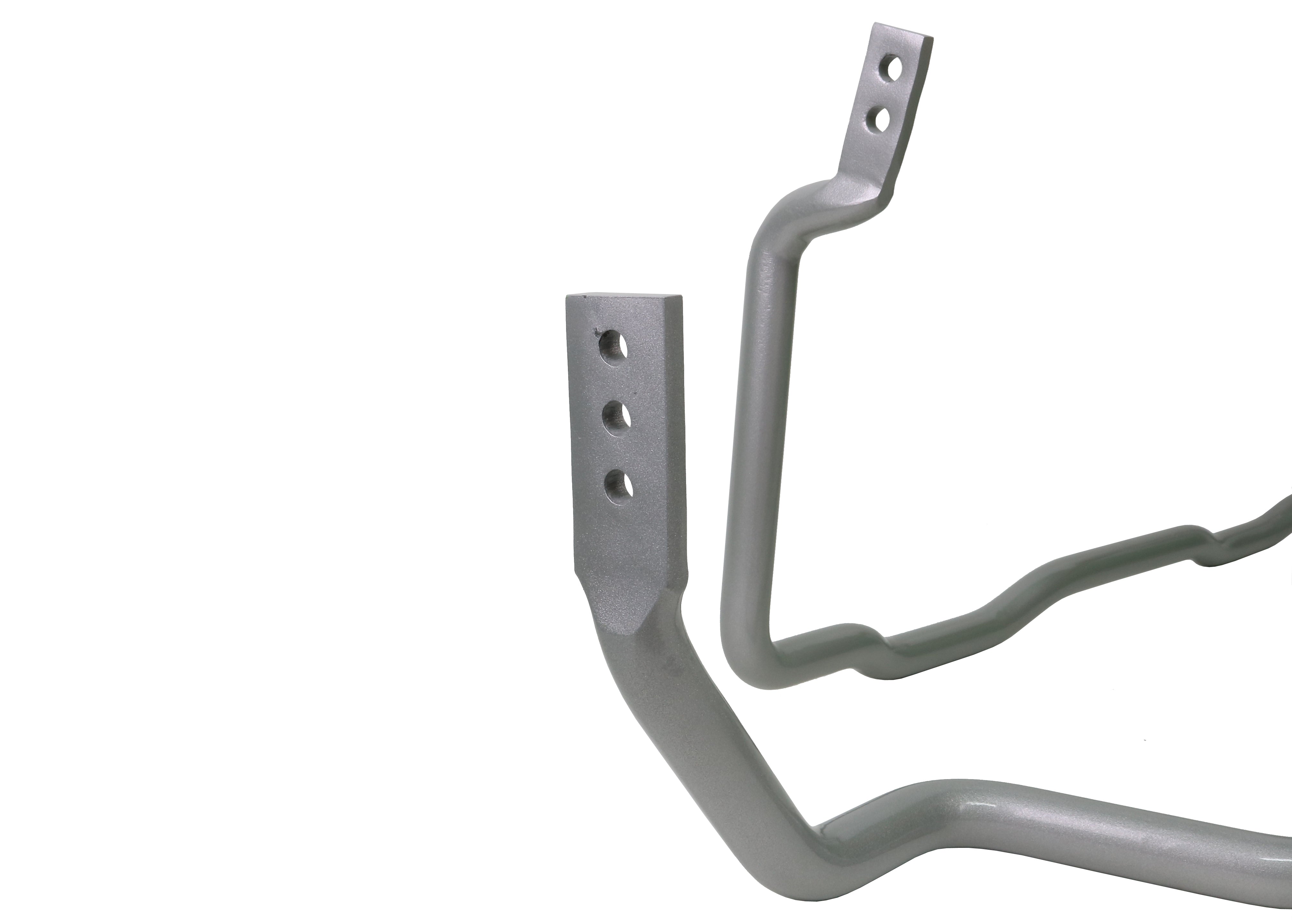

Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. The bar is adjustable, so the stiffness can be changed to suit the car and the road.
Expect a moderate job of about 3 hours. A wheel alignment is not required. To go with it on the 323i, see Front Lower Inner Rear Control Arm Bushing Kit, 22mm Rear Sway Bar Bushing Kit, and Rear Subframe Mount Bushing Kit.
Features
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Install guide: Whiteline packs an install guide with it.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Easy to fit: Designed for an easy install with ordinary shop equipment.
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
Specifications
| Part Number | BBK001 |
| Part Name | Sway Bar Kit |
| Vehicle | 1997-1998 BMW 323i |
| Chassis Code | E36 |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 35 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Sway Bars, 4 Links, 4 Bushings, 4 Brackets, 8 Bolts, 18 Washers, 10 Nuts |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 22 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | No |
| Notes | Includes BBF39Z and BBR38Z, Front sway bar fits vehicles with control arm end link mounting |
Fitment for 323i sway bar kits
Fits the 1997-1998 BMW 323i. Each model year is listed below.
