Product Details

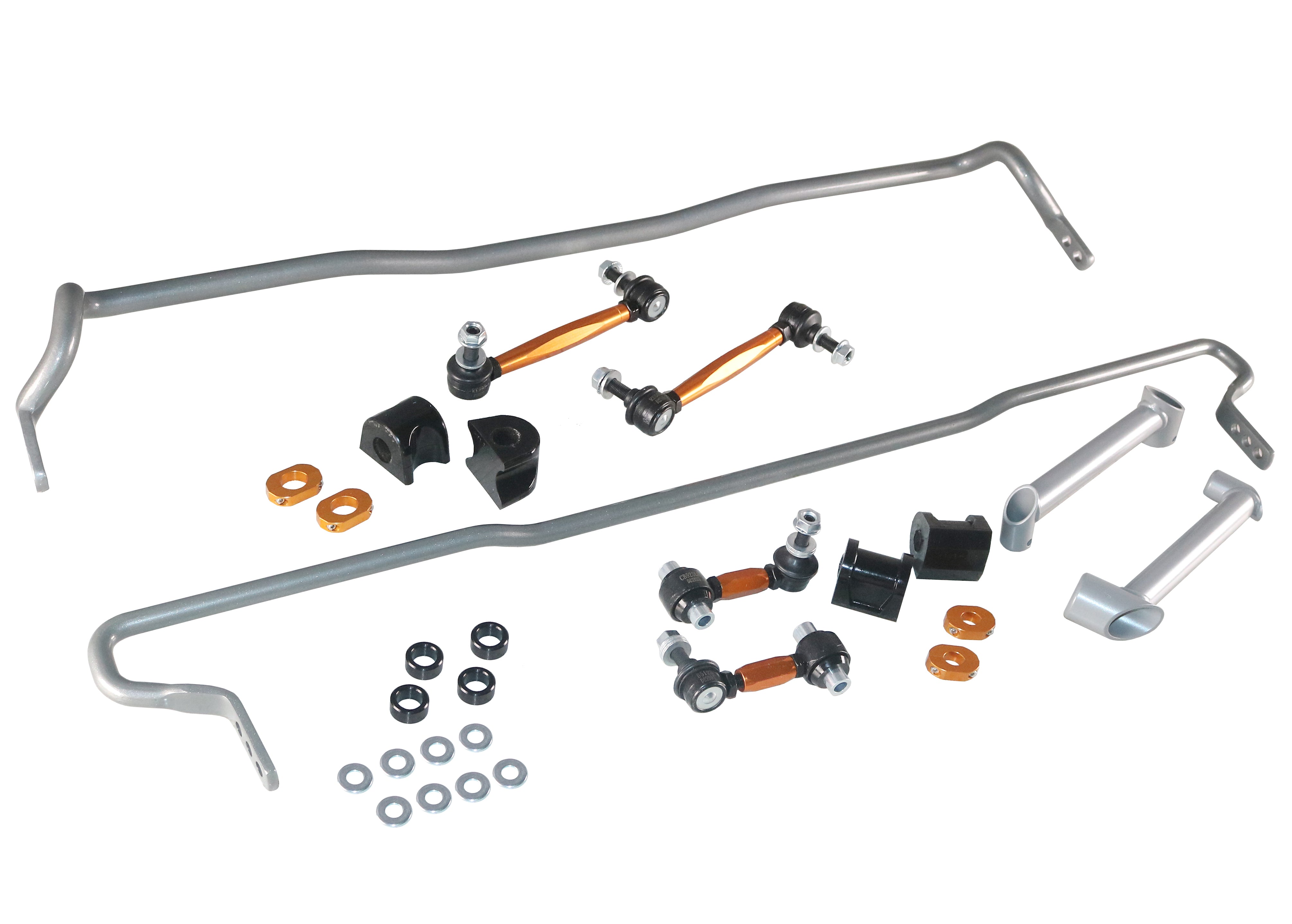

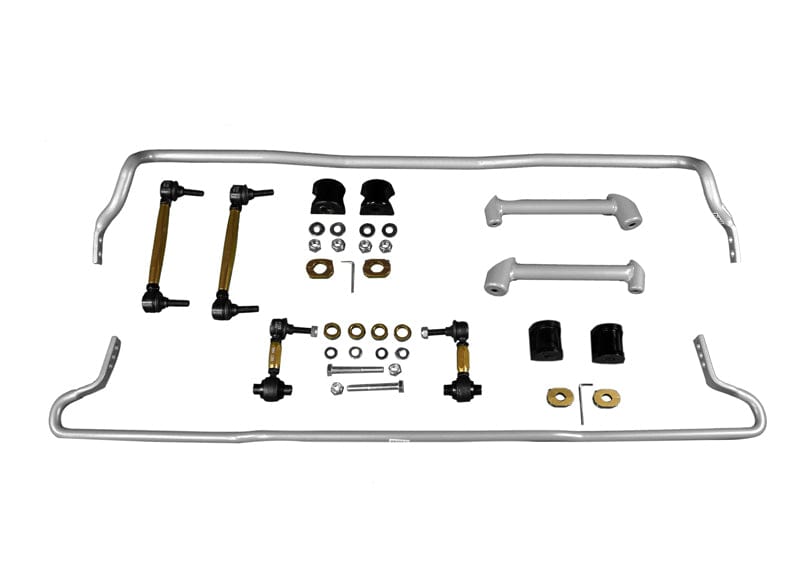

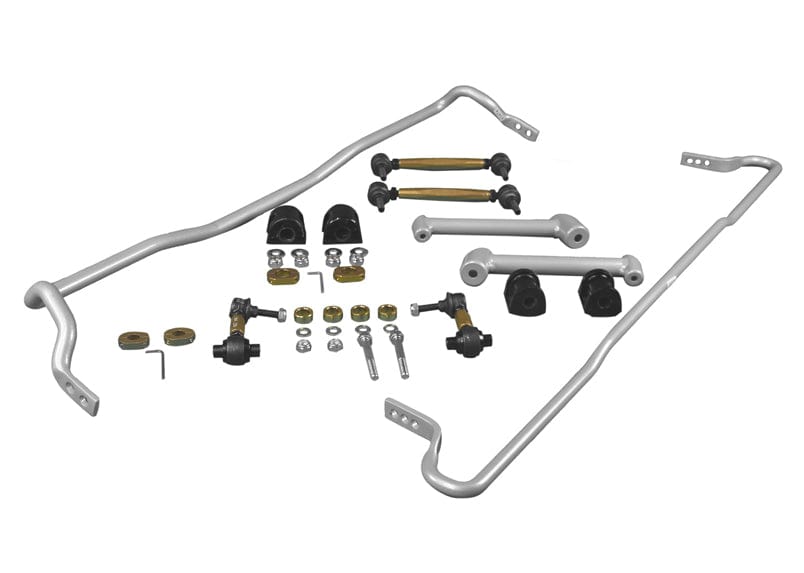

This Whiteline Front and Rear Sway Bar Kit fits the 2016 Subaru BRZ Series.HyperBlue (ZC6). Whiteline's note for this fit: Contains BSF45XZ and BSR54Z. Part number BSK020. Included: 2 sway bars, 4 links, 4 bushings, 2 braces, 4 lateral locks, 4 spacers, 2 bolts, 8 washers, and 6 nuts. Placement: front and rear.

A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. A matched front and rear set lets you control not only how much the car rolls but also how its balance feels. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 4 hours of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Subaru BRZ: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Anodized alloy: The alloy is anodized, adding a durable protective layer.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
Specifications
Part Number BSK020
Part Name Sway Bars
Vehicle 2016 Subaru BRZ Series.HyperBlue
Chassis Code ZC6
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 22 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 2 Sway Bars, 4 Links, 4 Bushings, 2 Braces, 4 Lateral Locks, 4 Spacers, 2 Bolts, 8 Washers, 6 Nuts
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 16 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Vehicle Placement Front and Rear
Wheel Alignment Required No
Notes Sway bar Front 22mm (2 point adjustable) and Rear 16mm (3 point adjustable). Contains BSF45XZ and BSR54Z - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016SubaruBRZRWDSway bar Front 22mm (2 point adjustable) and Rear 16mm (3 point adjustable). Contains BSF45XZ and BSR54Z - essential to Activate more grip
