Product Details

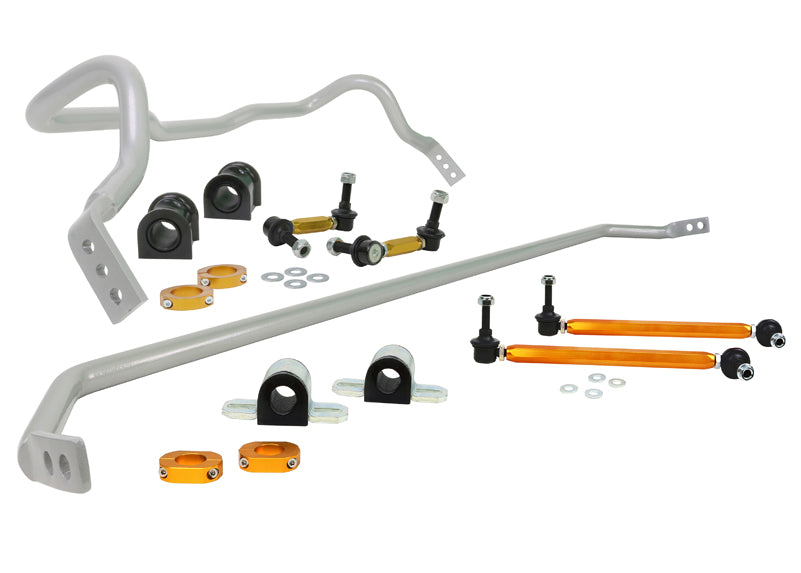

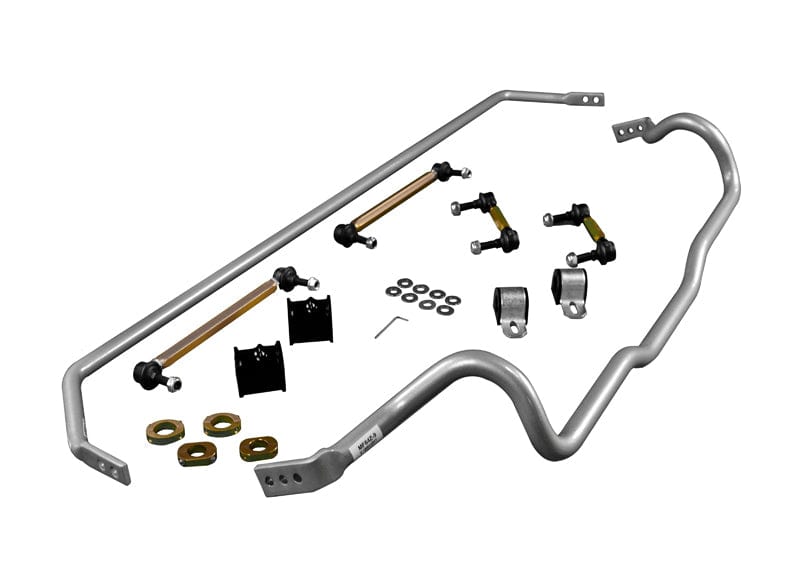

Engineered to 'Activate More Grip', BFK009 is a packaged solution to your 2016-2018 Ford Focus RS (C346) designed to improve performance and enhance the driving experience of your vehicle. Boasting a 26mm 3 point adjustable front sway bar and 22mm rear sway bar, the kit is completed with high quality Sway Bar Links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this Whiteline Sway Bar Kit.
Standard Features
- By eliminating flex associated with original equipment, these high strength links are engineered to improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
- Heavy duty ball joints adjust and rotate to any angular combination for ease of fitment and optimum performance.
- Internal grease reservoirs provide continual self lubrication for optimum friction management.
- Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
- Eliminate sway bar preload during installation and allow for on-car length adjustment of up to 25mm center to center.
- Featuring premium anodized alloy materials, Whiteline alloy products are anodized providing a long-lasting protective barrier to corrosion and wear but they look great too.
- Whiteline's latest technology synthetic elastomer formulation boasts resistance to oil, grease, ozone and weathering.
- Whiteline Sway Bars are principally designed to reduce body roll or sway while cornering.
- Install guide included providing detailed instructions on how to install your new Whiteline purchase.
- Whiteline Sway Bar Mounts utilize the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
- DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
- Forged ends ensure maximum strength and performance of the sway bar at the sway bar link mounting point.
- Manufactured from high quality alloy and include heavy duty steel ball joint ends ensuring maximum strength and durability.
Specifications
| Part Number | BFK009 |
| Part Name | Sway Bars |
| Vehicle | 2016-2018 Ford Focus RS |
| Chassis Code | C346 |
| Bushing Material | Polyurethane |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 26 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 3 |
| Kit Contents | 2 Sway Bars, 4 Links, 4 Bushings, 4 Lateral Locks, 8 Washers |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 22 mm |
| Sway Bar Included - Rear | Yes |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | Yes |
| Notes | Contains BMF64Z and BFR78Z |
Vehicle Fitment
- 2016 Ford Focus RS (C346)
- 2017 Ford Focus RS (C346)
- 2018 Ford Focus RS (C346)
