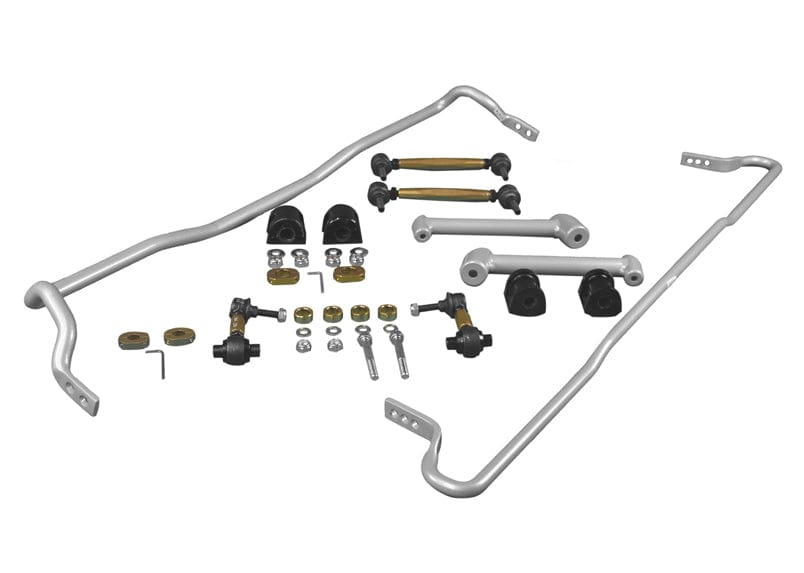

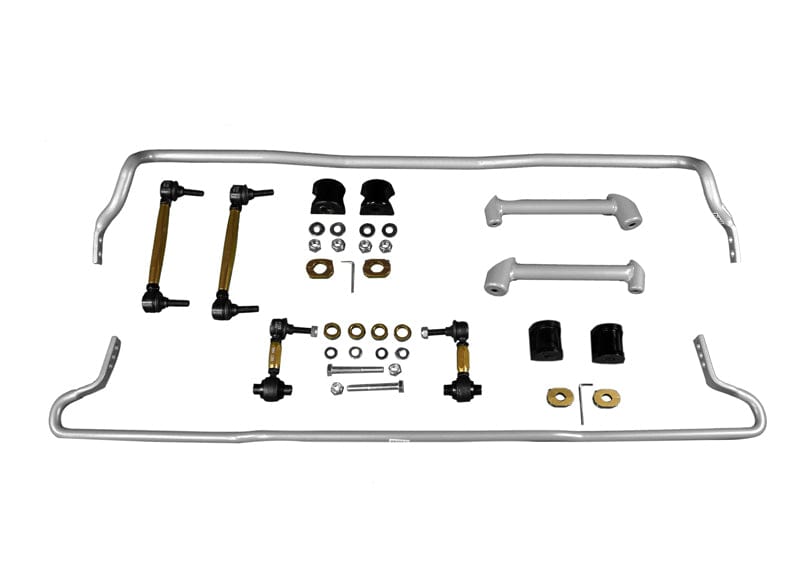

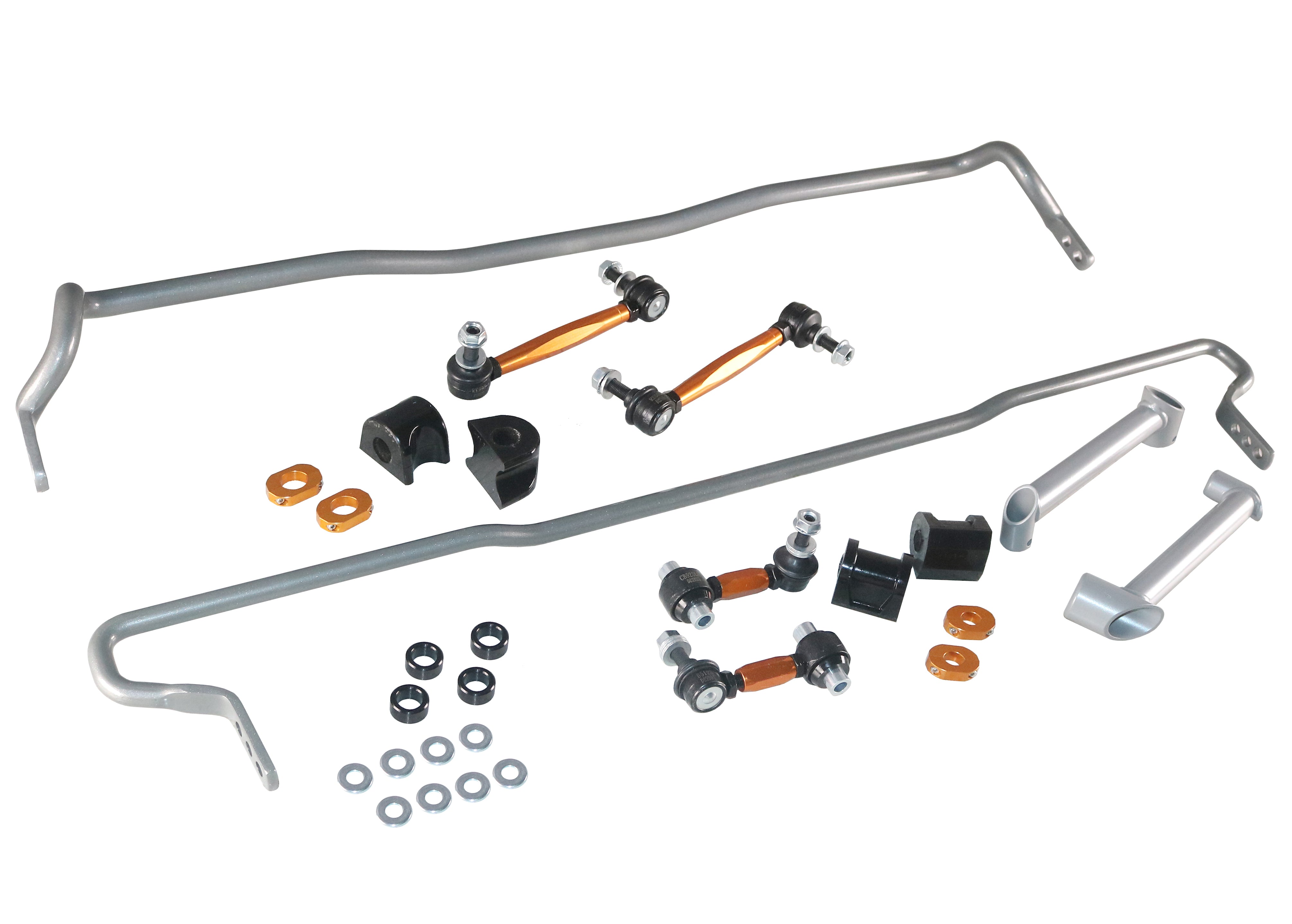

This Whiteline Front and Rear Sway Bar Kit fits the 2015 Subaru BRZ Series.Blue (ZC6). Application note: Contains BSF45XZ and BSR54Z. Placement: front and rear. Part number BSK020. In the box: 2 sway bars, 4 links, 4 bushings, 2 braces, 4 lateral locks, 4 spacers, 2 bolts, 8 washers, and 6 nuts.

Front and rear sway bars work as a team. The bars resist roll by twisting, and their relative stiffness shapes whether the car feels planted or loose at the limit. This kit supplies both ends so the balance stays under control. Adjustable mounting points let you step the stiffness up or down without changing the bar.

Whiteline rates the install as moderate and lists about 4 hours. A wheel alignment is not required. Other Whiteline parts we list for the Subaru BRZ: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Lateral locks: Lateral locks stop the bar sliding sideways under load.
  • Chassis stiffness: Helps keep alignment angles and spring rates consistent by cutting down flex.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
Specifications
Part Number BSK020
Part Name Sway Bars
Vehicle 2015 Subaru BRZ Series.Blue
Chassis Code ZC6
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 22 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 2 Sway Bars, 4 Links, 4 Bushings, 2 Braces, 4 Lateral Locks, 4 Spacers, 2 Bolts, 8 Washers, 6 Nuts
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 16 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Vehicle Placement Front and Rear
Wheel Alignment Required No
Notes Sway bar Front 22mm (2 point adjustable) and Rear 16mm (3 point adjustable). Contains BSF45XZ and BSR54Z - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015SubaruBRZRWDSway bar Front 22mm (2 point adjustable) and Rear 16mm (3 point adjustable). Contains BSF45XZ and BSR54Z - essential to Activate more grip
