Product Details

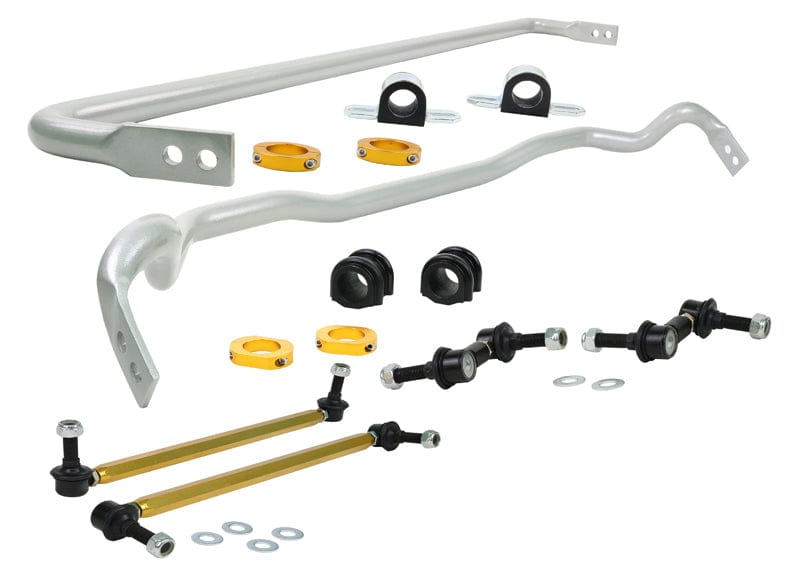

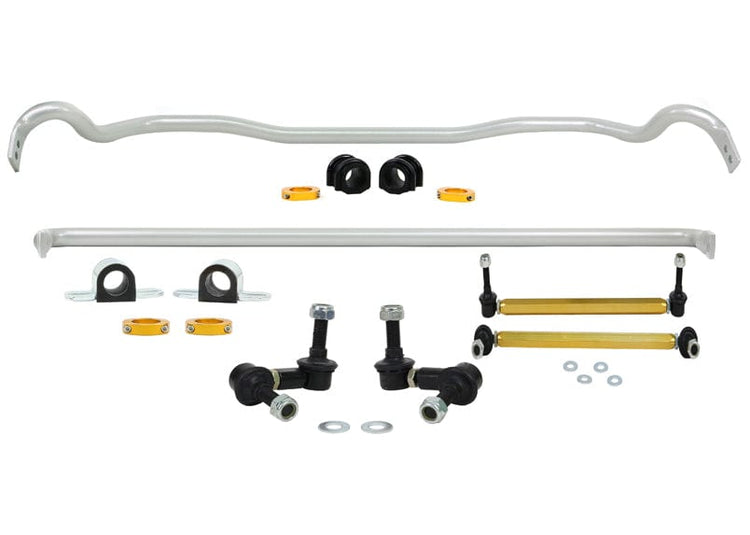

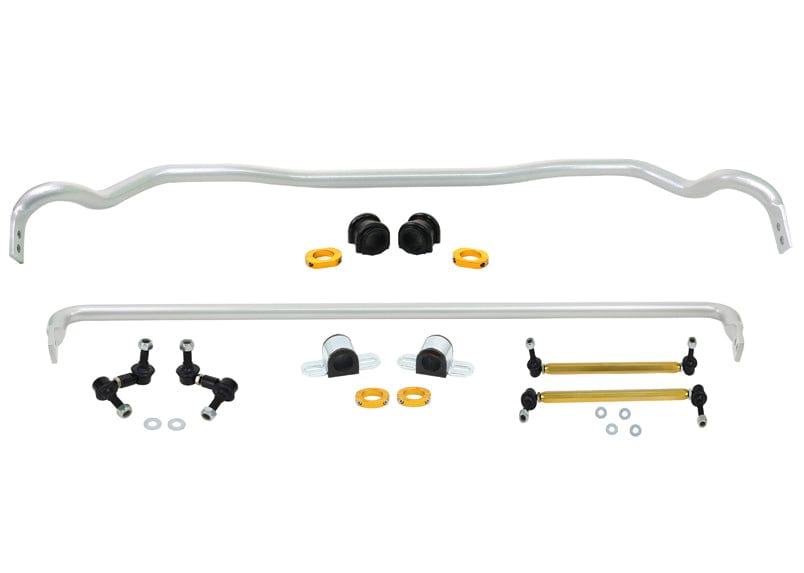

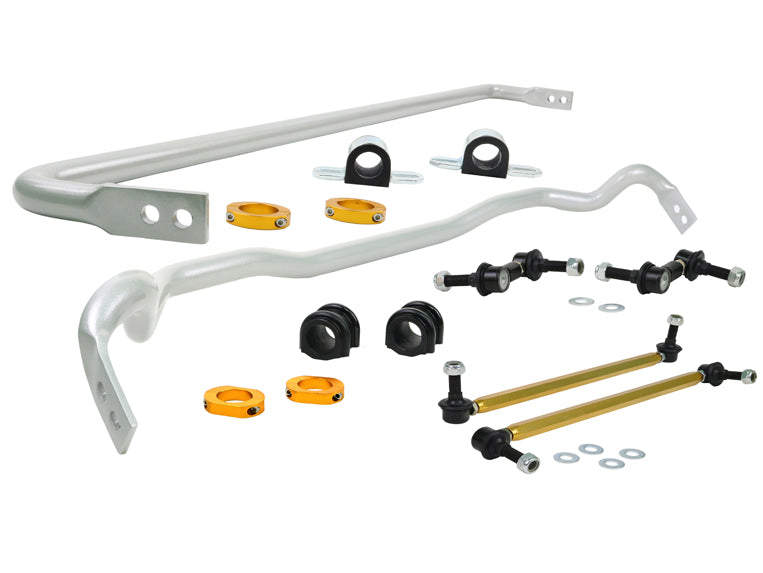

This Whiteline Front and Rear Sway Bar Kit fits the 2014-2016 Hyundai Genesis Coupe 3.8 Ultimate . This part is for the front and rear of the vehicle. Whiteline's note for this fit: Includes BHF89XZ, BHR88XZ, KLC201 and KLC172. The kit contains 2 sway bars, 2 links, 4 bushings, 2 saddles, 4 lateral locks, and 6 washers. The part number is BHK016M.

Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. Adjustable mounting points let you step the stiffness up or down without changing the bar.

Expect a moderate job of about 4 hours. It does not require a wheel alignment. Other Whiteline parts we list for the Genesis Coupe: 14mm Adjustable Front Camber Bolts, Adjustable Front Sway Bar Link, and Heavy Duty Blade Adjustable 26mm Rear Sway Bar.

Features

  • Forged ends: Forged ends add strength at the point where the bar connects to the link.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
  • Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
Specifications
Part Number BHK016M
Part Name Sway Bars
Vehicle 2014-2016 Hyundai Genesis Coupe 3.8 Ultimate
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 30 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 2 Sway Bars, 2 Links, 4 Bushings, 2 Saddles, 4 Lateral Locks, 6 Washers
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 26 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear Yes
Wheel Alignment Required No
Notes Includes BHF89XZ, BHR88XZ, KLC201 and KLC172

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2014HyundaiGenesis CoupeRWDIncludes BHF89XZ, BHR88XZ, KLC201 and KLC172
2015HyundaiGenesis CoupeRWDIncludes BHF89XZ, BHR88XZ, KLC201 and KLC172
2016HyundaiGenesis CoupeRWDIncludes BHF89XZ, BHR88XZ, KLC201 and KLC172
