Product Details

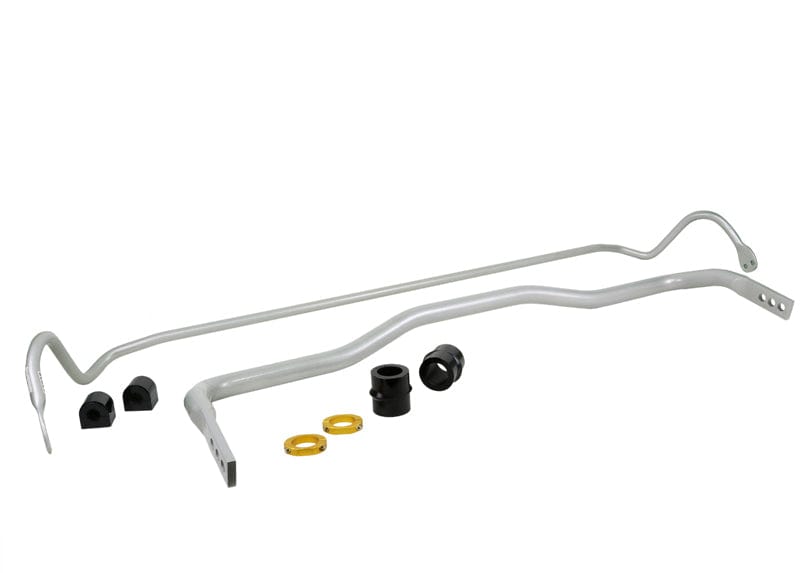

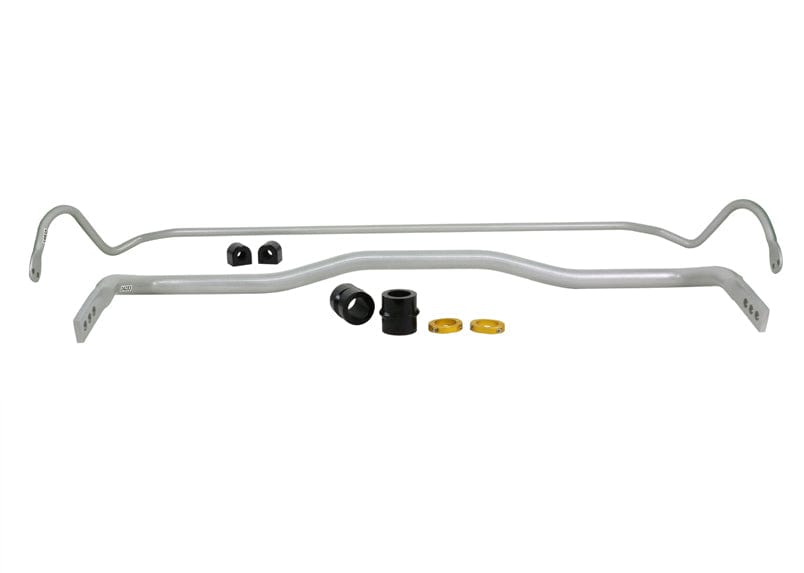

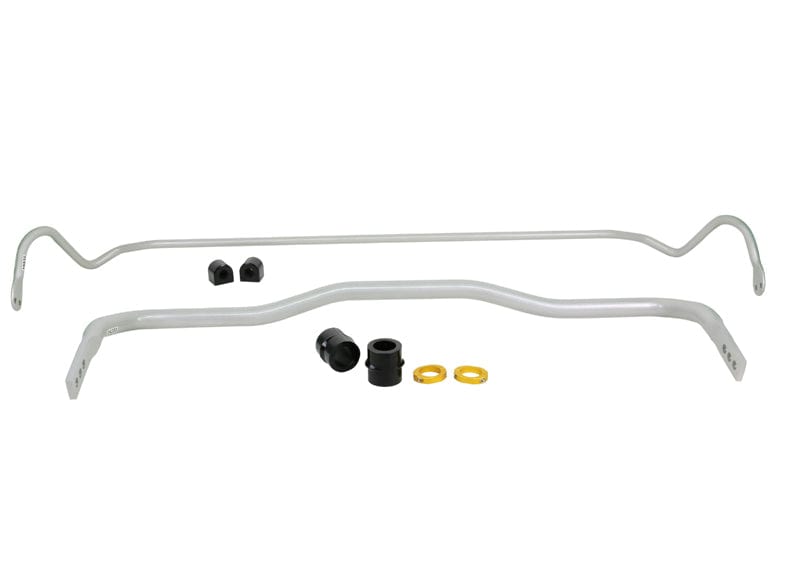

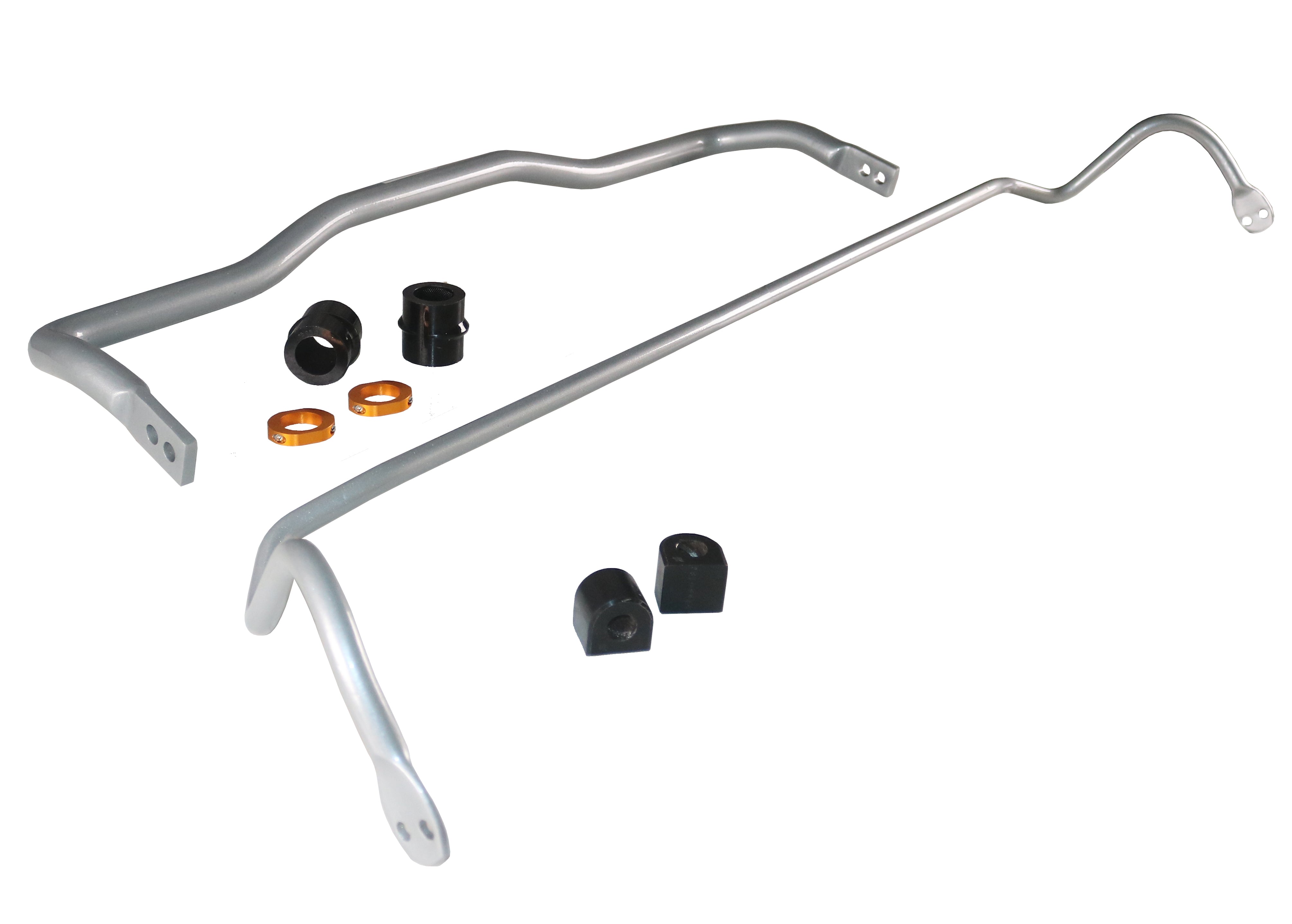

This Whiteline Front and Rear Sway Bar Kit fits the 2012 Dodge Charger SXT Plus (LD). Application note: Contains BCF12Z and BCR15Z. This part is for the front and rear of the vehicle. In the box: 2 sway bars, 4 bushings, and 2 lateral locks. Whiteline part number: BCK003.

Body roll shifts load onto the outside tires, and a sway bar is the most direct way to limit it. Fitting stiffer bars at both ends keeps the platform flatter through a corner and lets the car turn in with less lean, and having a front and rear pair designed to work together keeps the balance predictable. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 3 hours of work listed. A wheel alignment is not required. We also list Rear Subframe Mount Bushing, Front Sway Bar Link Kit, and Rear Trailing Arm Lower Front Bushing for the Charger.

Features

  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Install guide: Whiteline packs an install guide with it.
  • Forged ends: Forged bar ends add strength where the bar meets the link.
  • Lateral locks: DIY lateral locks stop the bar from shifting sideways under cornering loads.
  • PTFE lined: A PTFE lining lowers friction so the bushing needs no lubrication.
  • Bar mounts: Internally knurled mount bushings with lips that hold grease keep the bar lubricated.
Specifications
Part Number BCK003
Part Name Sway Bars
Vehicle 2012 Dodge Charger SXT Plus
Drivetrain RWD/AWD
Chassis Code LD
Bushing Material Polyurethane
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 33 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front No
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 3
Kit Contents 2 Sway Bars, 4 Bushings, 2 Lateral Locks
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 18 mm
Sway Bar Included - Rear Yes
Sway Bar Links Included - Rear No
Wheel Alignment Required No
Notes Contains BCF12Z and BCR15Z

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2012DodgeChargerRWDContains BCF12Z and BCR15Z
2012DodgeChargerAWDContains BCF12Z and BCR15Z
