Product Details

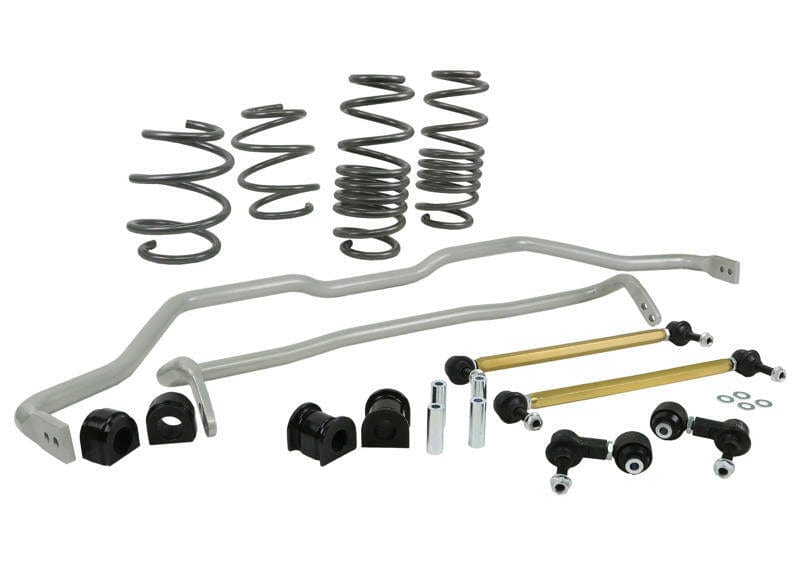

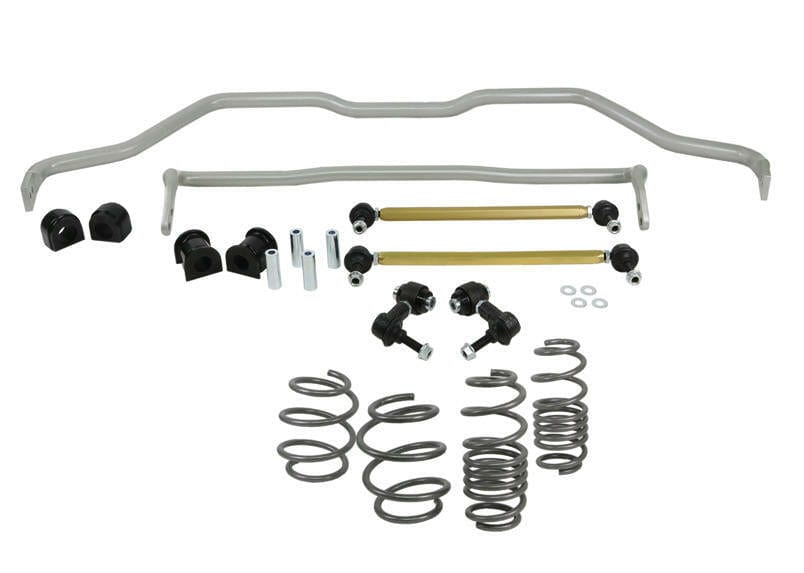

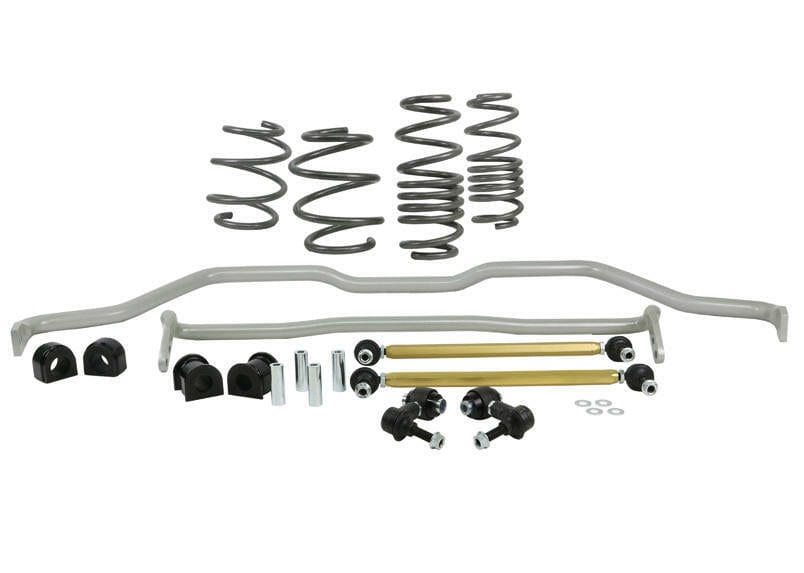

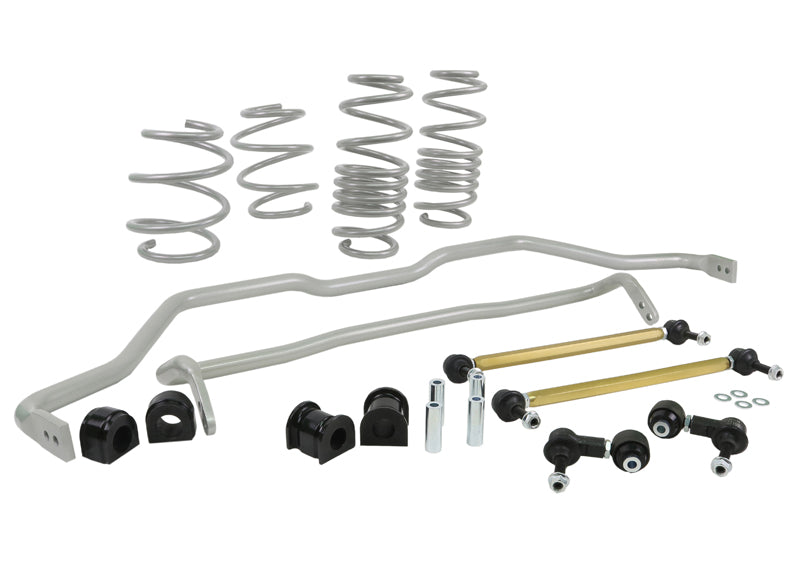

Owners of the 2019 Honda Civic Sport Plus can fit the Whiteline Grip Series Front and Rear Performance Suspension Kit. The part number is GS1-HON017. The chassis code on the listing is FC. This part is for the front and rear of the vehicle. The listing names the Sport Plus trim. In the box: 4 springs, 2 sway bars, 4 links, 4 bushings, 4 spacers, and 4 washers. Application note: Vehicle sway bar and lowered spring kit: contains WSK-HON017 and BHK017.
A matched set of springs, bars, links, and hardware takes the guesswork out of changing how a car handles. Because the parts are chosen to work together, ride height and roll control come out balanced from front to rear.
Expect a difficult job of about 7 hours. Get the car aligned once it is back on the ground. To go with it on the Civic, see Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Sway Bar Vehicle Link Kit.
Features
- Progressive rate: The spring rate rises as it compresses, keeping the ride composed.
- Finish: The metal parts are powder coated for durability.
- Bar mounts: The mounts have an internal bore pattern and lips that retain grease.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Shock compatibility: Made to work with the original shocks and finished to tight tolerances for a precise fit.
- Roll stiffness: Bar diameter sets the stiffness, and this one raises roll resistance.
Specifications
| Part Number | GS1-HON017 |
| Part Name | Suspension Kit |
| Vehicle | 2019 Honda Civic Sport Plus |
| Chassis Code | FC |
| Spring Rate - Front | 253 PPI |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 27 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 7 |
| Kit Contents | 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Spacers, 4 Washers |
| Spring Rate - Rear | 286 PPI |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 22 mm |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | Yes |
| Notes | Vehicle sway bar and lowered spring kit - contains WSK-HON017 and BHK017 - essential to Activate more grip |
