Product Details

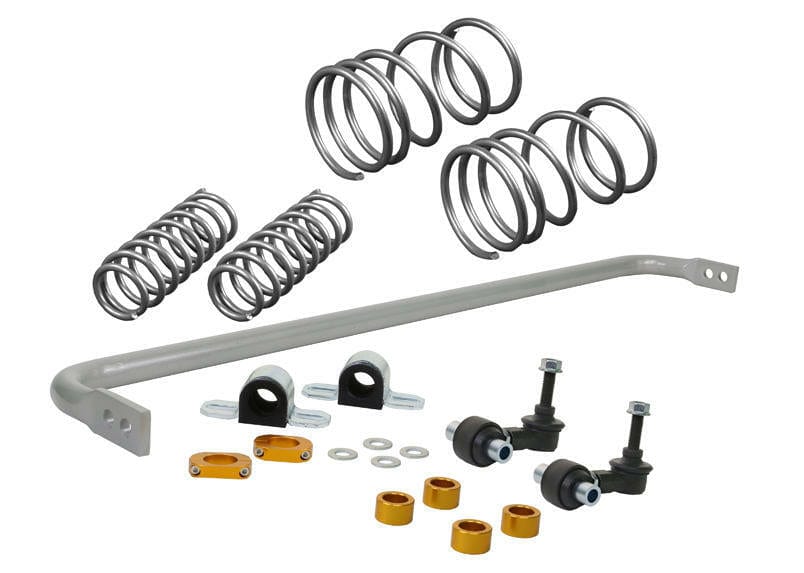

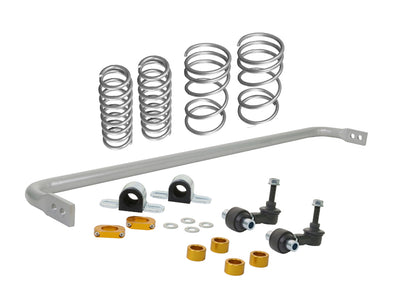

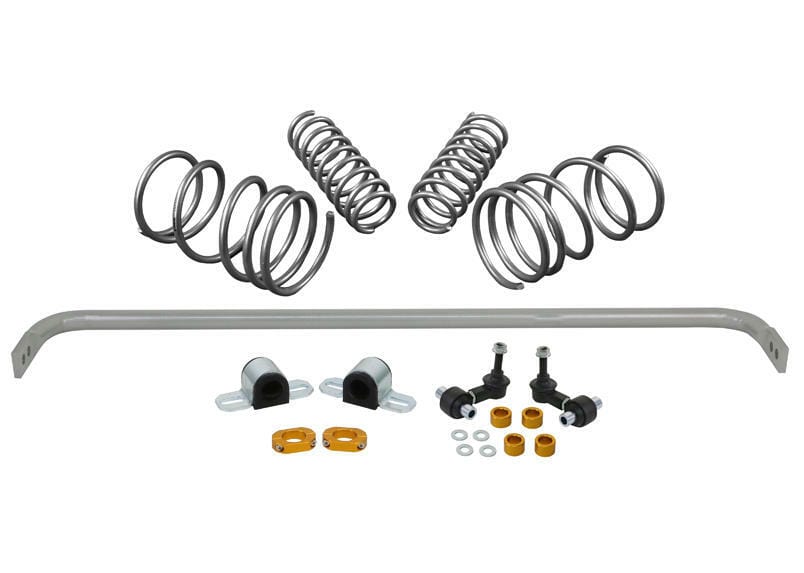

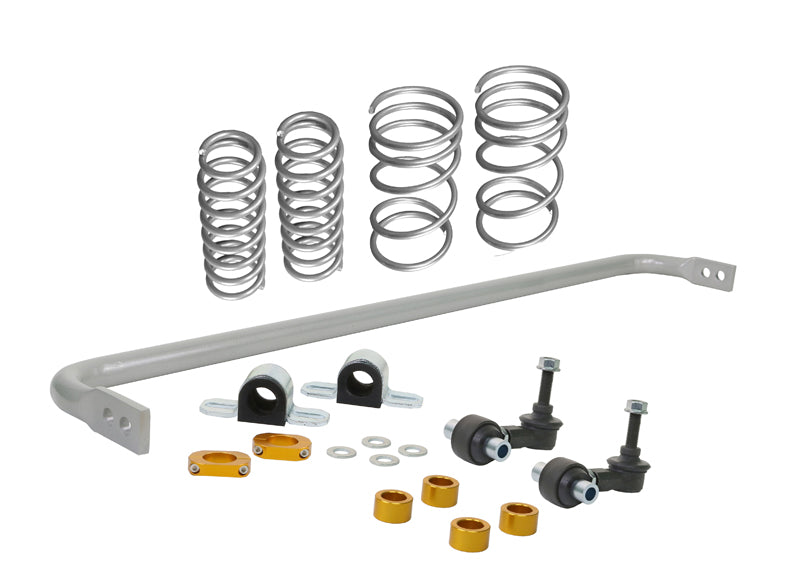

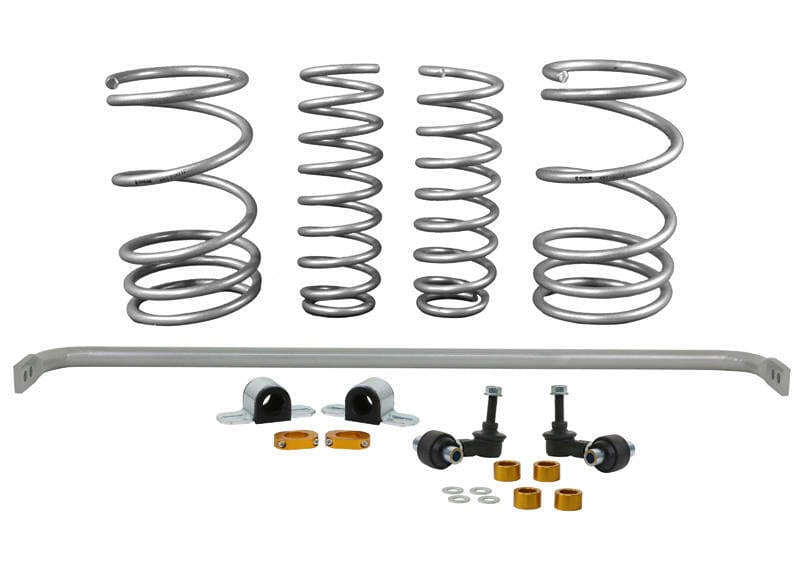

Whiteline built the Grip Series Front and Rear Performance Suspension Kit for the 2018-2019 Hyundai Elantra GT Base, GT Sport (AD). Placement: front and rear. Trims named on the listing: Base and GT Sport. In the box: 4 springs, 1 sway bar, 2 links, 2 bushings, 2 saddles, 2 lateral locks, 4 spacers, and 4 washers. Application note: Vehicle sway bar and lowered spring kit: contains WSK-HYU001, BHR98Z and KLC221. Whiteline part number: GS1-HYU001.
Changing one part of a suspension often shifts the balance of the whole car. A kit that supplies both ends together keeps the front and rear working as a pair instead of fixing one end and leaving the other behind.
Whiteline rates the install as difficult and lists about 6 hours. Plan on a wheel alignment afterward. To go with it on the Elantra GT, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and Performance Lowering Spring Kit.
Features
- Construction: The body is made from high-grade alloy for strength without added weight.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Roll control: Reduces body sway through turns.
- Roll stiffness: Bar diameter sets the stiffness, and this one raises roll resistance.
- Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
| Part Number | GS1-HYU001 |
| Part Name | Suspension Kit |
| Vehicle | 2018-2019 Hyundai Elantra GT Base, GT Sport |
| Chassis Code | AD |
| Spring Rate - Front | 201 PPI |
| Sway Bar Included - Front | No |
| Sway Bar Links Included - Front | No |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 6 |
| Kit Contents | 4 Springs, 1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 2 lateral Locks, 4 Spacers, 4 Washers |
| Spring Rate - Rear | 201 PPI |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 22 mm |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | Yes |
| Notes | Vehicle sway bar and lowered spring kit - contains WSK-HYU001, BHR98Z and KLC221 - essential to Activate more grip |
