Product Details

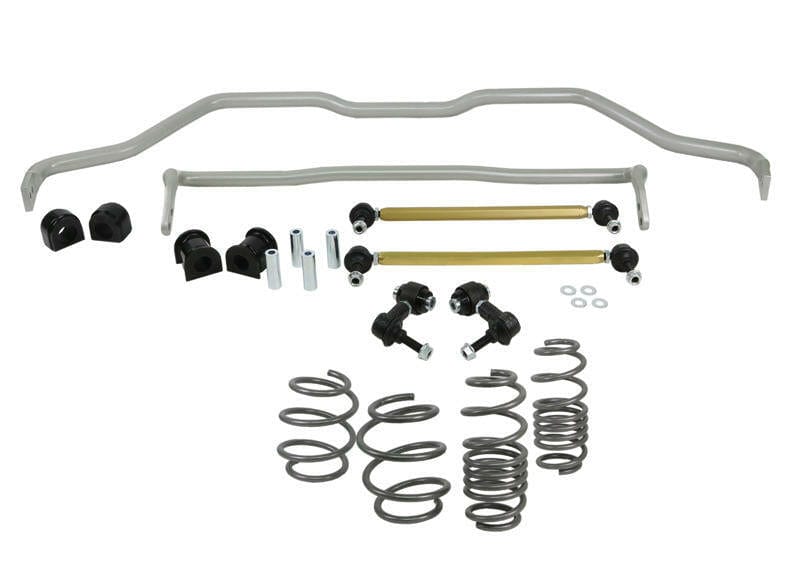

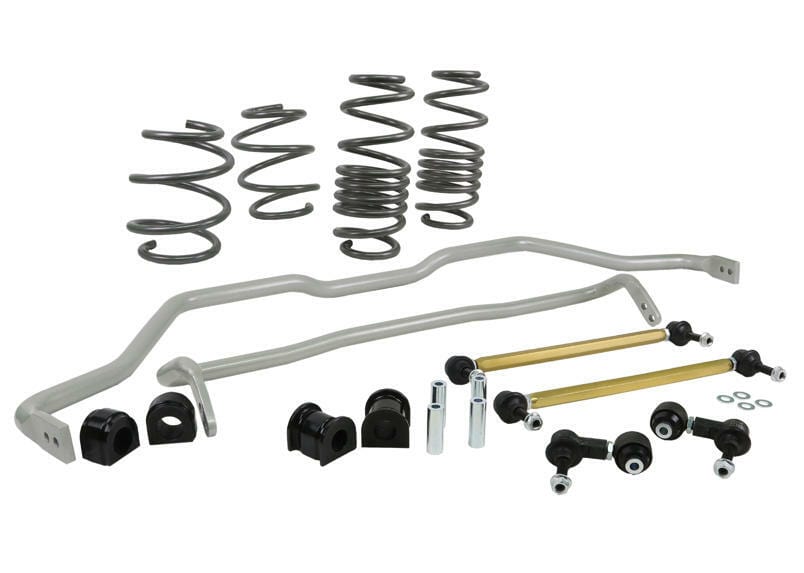

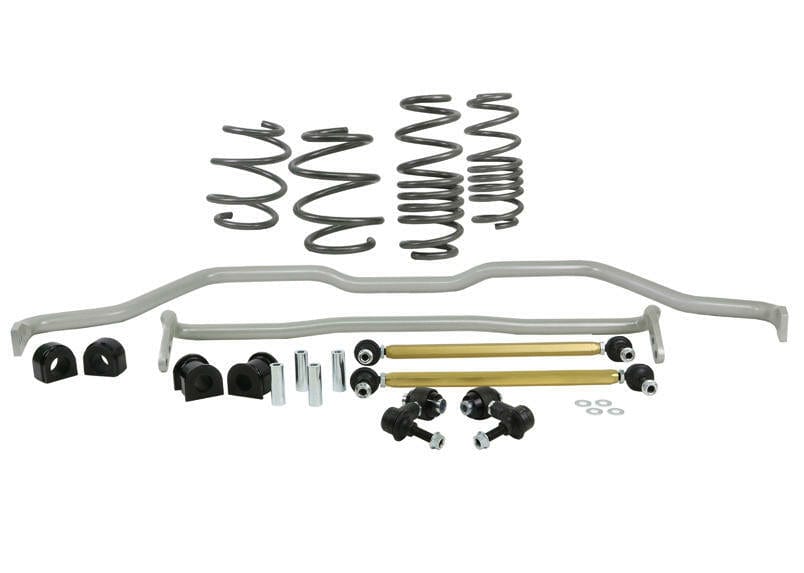

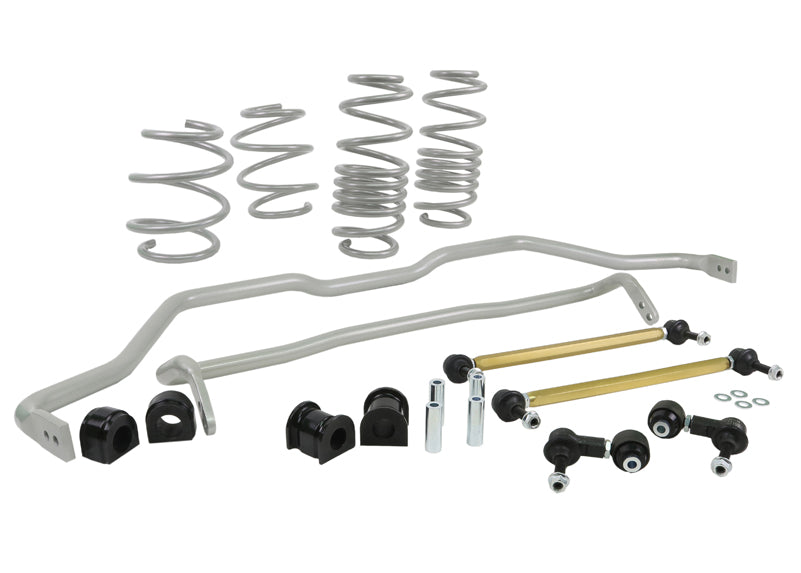

For the 2017-2020 Honda Civic Sport, Type R (FC), Whiteline makes the Grip Series Front and Rear Performance Suspension Kit. The kit contains 4 springs, 2 sway bars, 4 links, 4 bushings, 4 spacers, and 4 washers. Whiteline's note for this fit: Vehicle sway bar and lowered spring kit: contains WSK-HON017 and BHK017. The listing names the Sport and Type R trims. The part number is GS1-HON017. Placement: front and rear.
Changing one part of a suspension often shifts the balance of the whole car. A kit that supplies both ends together keeps the front and rear working as a pair instead of fixing one end and leaving the other behind.
Whiteline rates the install as difficult and lists about 7 hours. Plan on a wheel alignment afterward. Other Whiteline parts we list for the Civic: Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Sway Bar Vehicle Link Kit.
Features
- Bar mounts: The mounts have an internal bore pattern and lips that retain grease.
- Spring steel: European made, cold rolled spring steel.
- Shock compatibility: Built for a precise fit with factory shocks.
- Lateral locks: Built-in lateral locks hold the bar in position side to side.
- Progressive rate: The spring rate rises as it compresses, keeping the ride composed.
- Finish: Powder coating covers the metal for protection against chips and rust.
Specifications
| Part Number | GS1-HON017 |
| Part Name | Suspension Kit |
| Vehicle | 2017-2020 Honda Civic Sport, Type R |
| Chassis Code | FC |
| Spring Rate - Front | 253 PPI |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 27 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 7 |
| Kit Contents | 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Spacers, 4 Washers |
| Spring Rate - Rear | 286 PPI |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 22 mm |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | Yes |
| Notes | Vehicle sway bar and lowered spring kit - contains WSK-HON017 and BHK017 - essential to Activate more grip |
