Product Details

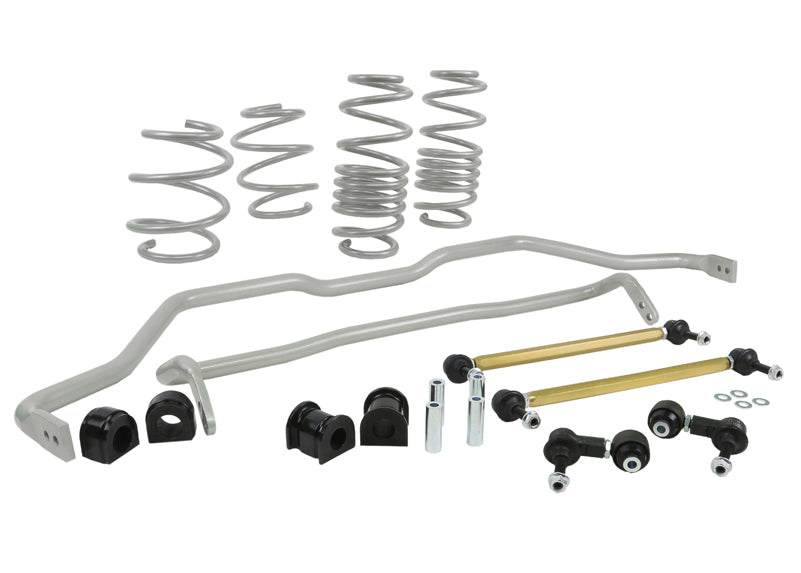

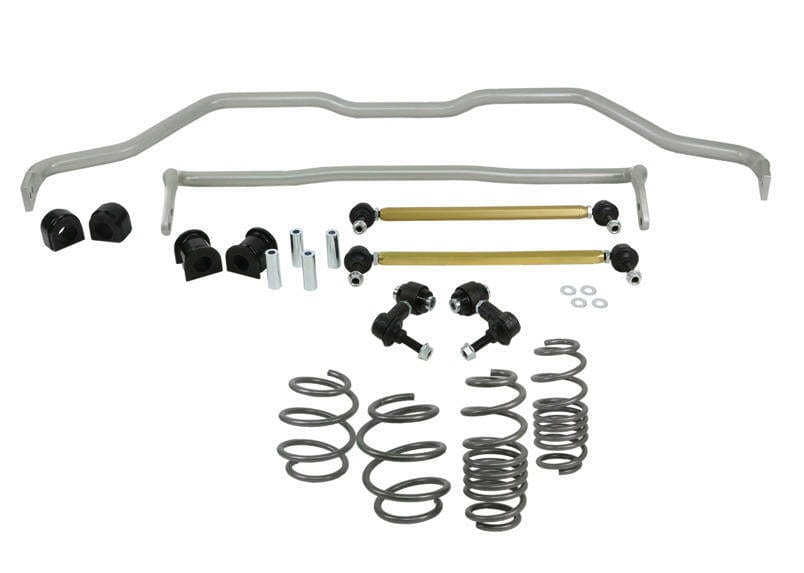

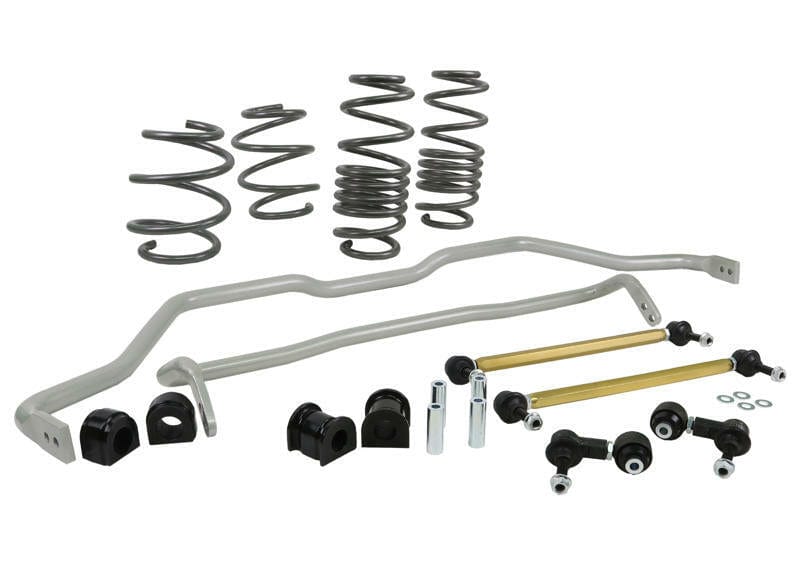

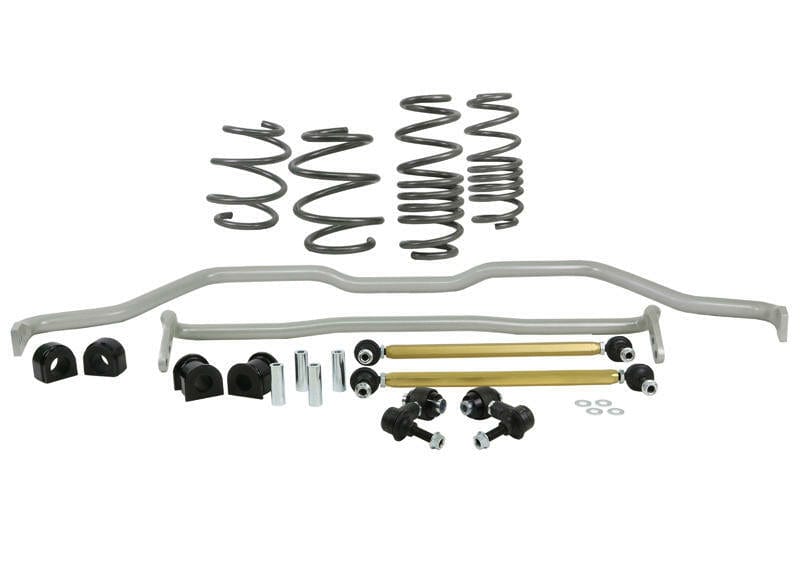

The ultimate entry level suspension upgrade! Performance, handling and comfort make up the Grip Series Stage 1 Kit to your 2017-2019 Honda Civic Turbo Plus (FC) featuring Whiteline signature front and rear adjustable (where applicable) swaybars, drop links and performance lowering springs. Whiteline Springs deliver improved vehicle performance whilst maintaining safety and ride quality characteristics. This kit contains 4.2kg/mm (235lb/in) front rated springs that provide a 35mm drop while the 3.8kg/mm (213lb/in) rated rears deliver a desirable 35mm to the vehicle. Boasting a 24mm 2 point adjustable front sway bar and 24mm 2 point adjustable rear sway bar, the kit is completed with high quality Sway Bar Links and mounting accessories that ensure optimum performance and ease of installation. Achieve perfect balance and precise tuning with this GS1 Kit.
Standard Features
- Cold rolled in Europe from the highest quality material.
- Engineered for superior fit/performance with OEM shocks while produced to the finest tolerances ensuring exact fitment.
- Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
- The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
- These progressive rate springs are designed to provide improved performance without compromising ride quality characteristics.
- Whiteline Sway Bars are principally designed to reduce body roll or sway while cornering.
- By eliminating flex associated with original equipment, these high strength links are engineered to improve overall performance, increased rigidity and responsiveness which can be felt especially during lane changes and initial turn.
- Heavy duty ball joint ensures optimum durability & steering predictability.
- Take control with multi-point adjustment that allow the driver to fine tune vehicle characteristics to suit their driving preference or conditions.
- Larger diameter Sway Bars offer a higher torsional resistance which in turn increases overall roll stiffness.
- Manufactured from high quality alloy and include heavy duty steel ball joints ensuring maximum strength and durability.
- DIY Lateral locks prevent shifting or sideways movement of the sway bar under lateral (cornering) loads.
- Eliminate sway bar preload during installation and allow for on-car length adjustment and rotate to any angular combination for ease of fitment and optimum performance.
- Whiteline Sway Bar Mounts utilize the latest technology synthetic elastomer combined with effective designs such as the internal bore knurling and grease retention lips for optimum lubrication & performance.
Specifications
| Part Number | GS1-HON017 |
| Part Name | Suspension Kit |
| Vehicle | 2017-2019 Honda Civic Turbo Plus |
| Chassis Code | FC |
| Spring Rate - Front | 253 PPI |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 27 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 7 |
| Kit Contents | 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Spacers, 4 Washers |
| Spring Rate - Rear | 286 PPI |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 22 mm |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | Yes |
| Notes | Vehicle sway bar and lowered spring kit - contains WSK-HON017 and BHK017 - essential to Activate more grip |
Vehicle Fitment
- 2017 Honda Civic Turbo Plus (FC)
- 2018 Honda Civic Turbo Plus (FC)
- 2019 Honda Civic Turbo Plus (FC)
