Product Details

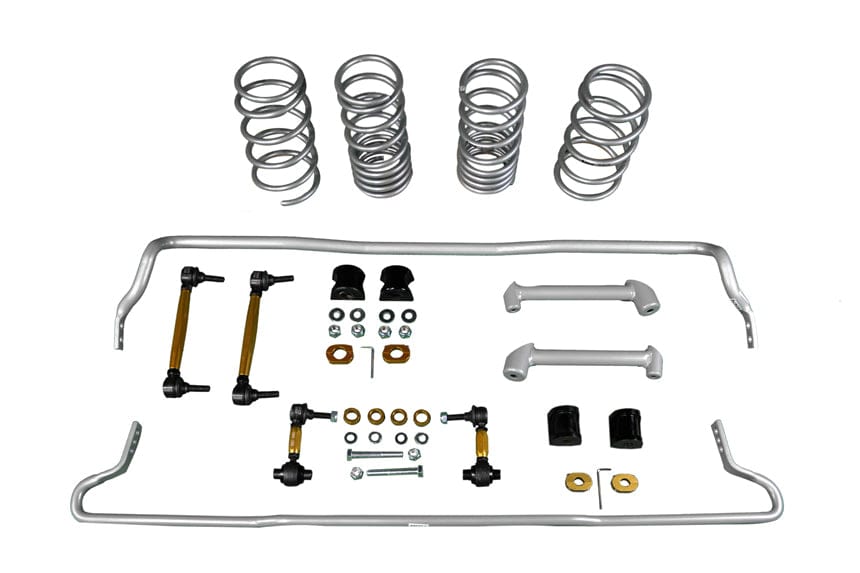

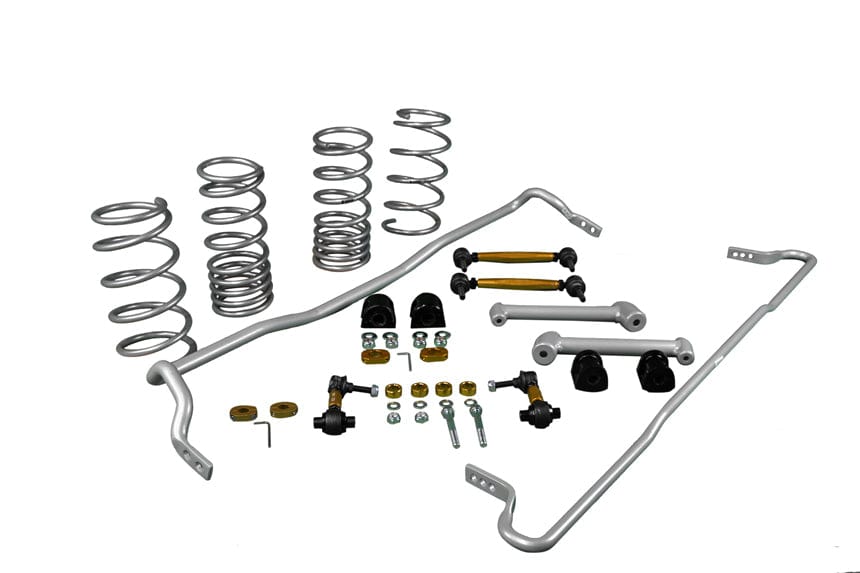

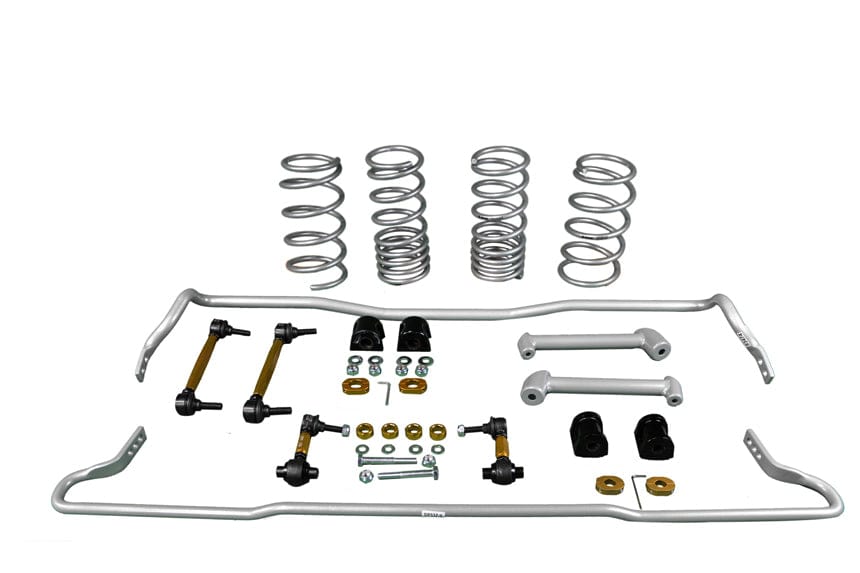

This Whiteline Grip Series Front and Rear Performance Suspension Kit fits the 2016 Subaru BRZ Series.HyperBlue (ZC6). Position: front and rear. Application note: Vehicle sway bar and lowered spring kit: contains WSK-SUB006 and BSK020. In the box: 4 springs, 2 sway bars, 4 links, 4 bushings, 2 braces, 4 lateral locks, 4 spacers, 2 bolts, 8 washers, and 6 nuts. Whiteline part number: GS1-SUB006.

Springs and sway bars do different jobs. Lowering springs bring the car down and firm up the ride, while sway bars and links control how much the body leans. A suspension kit pairs them so the front and rear work together.

Expect a difficult job of about 6 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Subaru BRZ: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Lateral locks: Built-in lateral locks hold the bar in position side to side.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Chassis stiffness: Helps keep alignment angles and spring rates consistent by cutting down flex.
Specifications
Part Number GS1-SUB006
Part Name Suspension Kit
Vehicle 2016 Subaru BRZ Series.HyperBlue
Chassis Code ZC6
Spring Rate - Front 171 PPI
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 22 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Installation Difficulty Difficult
Installation Time (hrs) 6
Kit Contents 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Braces, 4 Lateral Locks, 4 Spacers, 2 Bolts, 8 Washers, 6 Nuts
Spring Rate - Rear 234 PPI
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 16 mm
Sway Bar Links Included - Rear Yes
Wheel Alignment Required Yes
Notes Vehicle sway bar and lowered spring kit - contains WSK-SUB006 and BSK020 - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016SubaruBRZRWDVehicle sway bar and lowered spring kit - contains WSK-SUB006 and BSK020 - essential to Activate more grip
