Product Details

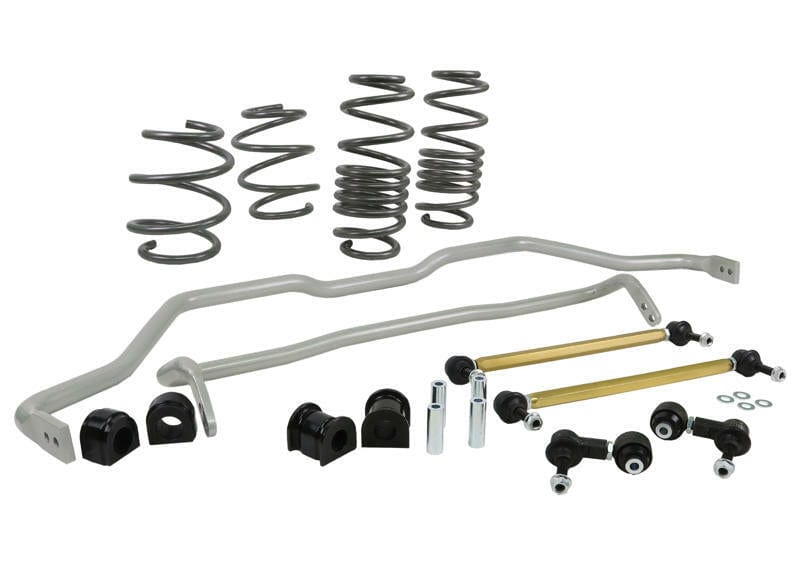

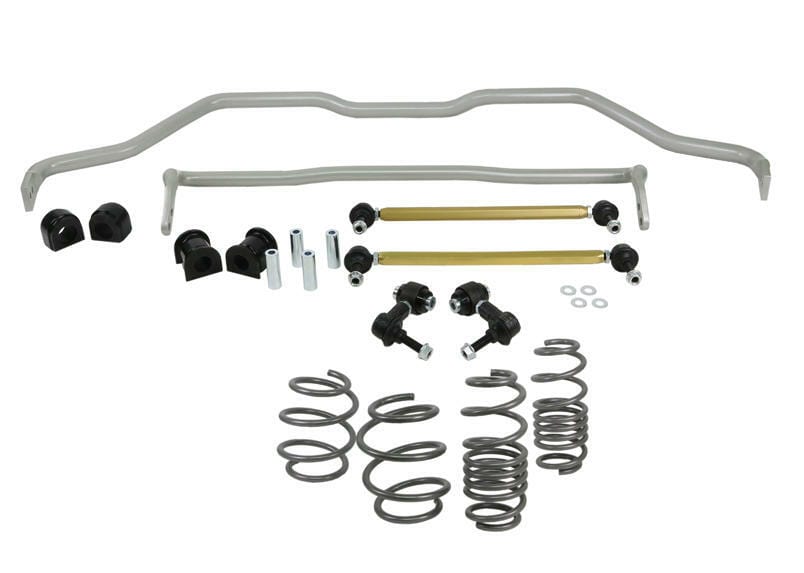

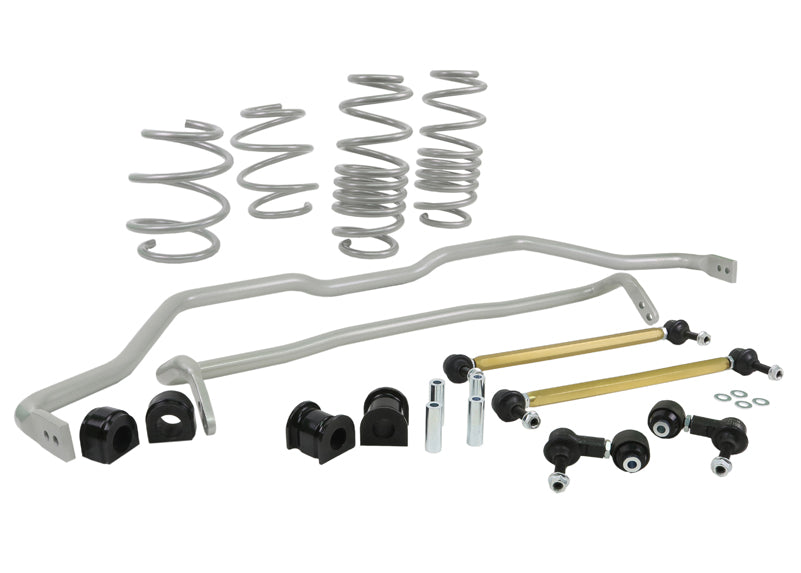

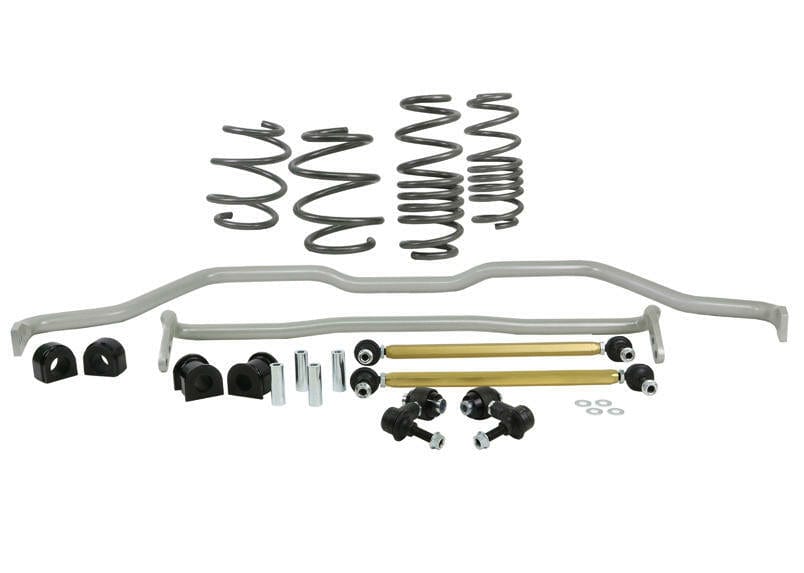

Owners of the 2016-2018 Honda Civic LX-P (FC) can fit the Whiteline Grip Series Front and Rear Performance Suspension Kit. The listing names the LX-P trim. Placement: front and rear. The part number is GS1-HON017. Whiteline's note for this fit: Vehicle sway bar and lowered spring kit: contains WSK-HON017 and BHK017. In the box: 4 springs, 2 sway bars, 4 links, 4 bushings, 4 spacers, and 4 washers.
A matched set of springs, bars, links, and hardware takes the guesswork out of changing how a car handles. Because the parts are chosen to work together, ride height and roll control come out balanced from front to rear.
Expect a difficult job of about 7 hours. An alignment is required after installation. Working on the same car? We also list Adjustable Rear Sway Bar Link, Adjustable Rear Upper Control Arm Set, and Adjustable Sway Bar Vehicle Link Kit for the Civic.
Features
- Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Finish: Powder coating covers the metal for protection against chips and rust.
- Adjustable stiffness: The bar has more than one mounting position so stiffness can be tuned.
- Roll stiffness: A larger diameter bar has more torsional resistance, which raises overall roll stiffness.
- Lateral locks: Lateral locks keep the bar centered under cornering load.
Specifications
| Part Number | GS1-HON017 |
| Part Name | Suspension Kit |
| Vehicle | 2016-2018 Honda Civic LX-P |
| Chassis Code | FC |
| Spring Rate - Front | 253 PPI |
| Sway Bar Adjustable - Front | Yes |
| Sway Bar Diameter - Front | 27 mm |
| Sway Bar Included - Front | Yes |
| Sway Bar Links Included - Front | Yes |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 7 |
| Kit Contents | 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 4 Spacers, 4 Washers |
| Spring Rate - Rear | 286 PPI |
| Sway Bar Adjustable - Rear | Yes |
| Sway Bar Diameter - Rear | 22 mm |
| Sway Bar Links Included - Rear | Yes |
| Wheel Alignment Required | Yes |
| Notes | Vehicle sway bar and lowered spring kit - contains WSK-HON017 and BHK017 - essential to Activate more grip |
