Product Details

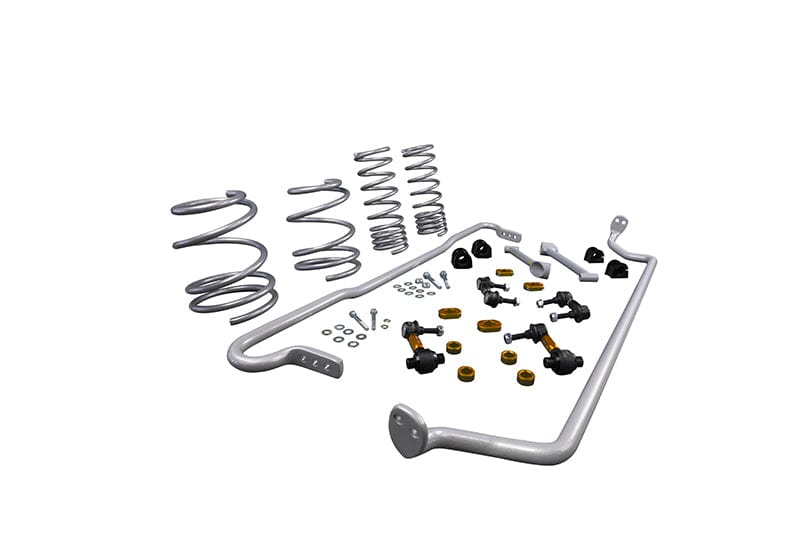

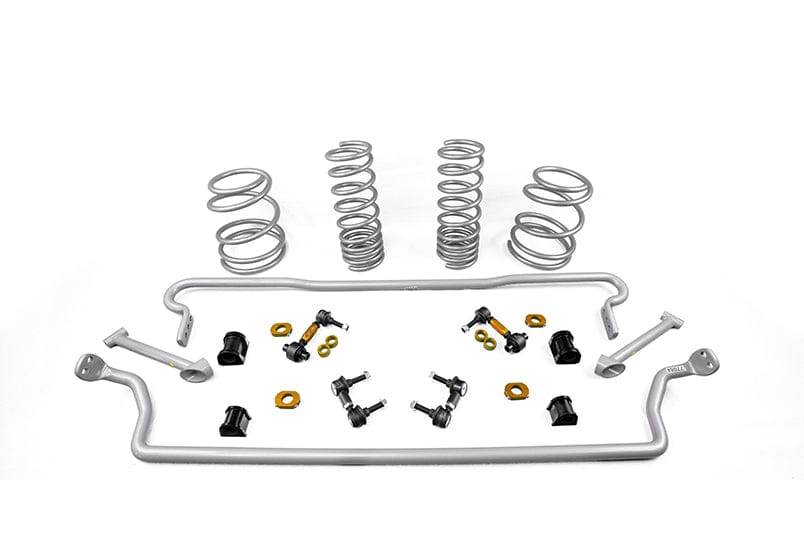

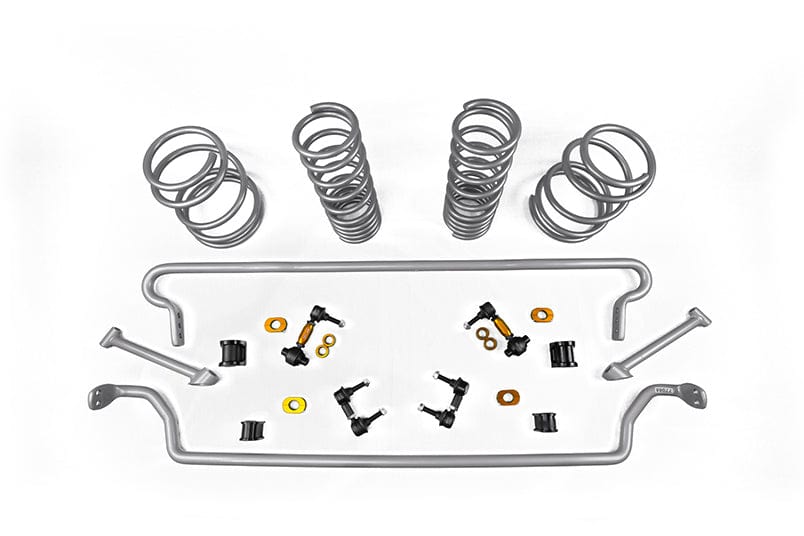

This Whiteline Grip Series Front and Rear Performance Suspension Kit fits the 2009-2011 Subaru Impreza WRX Premium (GE/GH/GR/GV/GP/GJ). Included: 4 springs, 2 sway bars, 4 links, 4 bushings, 2 braces, 4 lateral locks, 4 spacers, 4 bolts, 14 washers, and 4 nuts. Position: front and rear. Chassis code: GE/GH/GR/GV/GP/GJ. Application note: Vehicle sway bar and lowered spring kit: contains WSK-SUB005 and BSK011. Whiteline part number: GS1-SUB009.

Changing one part of a suspension often shifts the balance of the whole car. A kit that supplies both ends together keeps the front and rear working as a pair instead of fixing one end and leaving the other behind.

Expect a difficult job of about 6 hours. An alignment is required after installation. Other Whiteline parts we list for the Impreza WRX Premium: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Rear Subframe Mount Bushing.

Features

  • Lateral locks: DIY lateral locks stop the bar from shifting sideways under cornering loads.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Forged ends: Forged ends add strength at the point where the bar connects to the link.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Corrosion protection: Plated finish keeps rust off the hardware.
Specifications
Part Number GS1-SUB009
Part Name Suspension Kit
Vehicle 2009-2011 Subaru Impreza WRX Premium
Drivetrain AWD
Chassis Code GE/GH/GR/GV/GP/GJ
Spring Rate - Front 280 PPI
Sway Bar Adjustable - Front Yes
Sway Bar Diameter - Front 22 mm
Sway Bar Included - Front Yes
Sway Bar Links Included - Front Yes
Installation Difficulty Difficult
Installation Time (hrs) 6
Kit Contents 4 Springs, 2 Sway Bars, 4 Links, 4 Bushings, 2 Braces, 4 Lateral Locks, 4 Spacers, 4 Bolts, 14 Washers, 4 Nuts
Spring Rate - Rear 211 PPI
Sway Bar Adjustable - Rear Yes
Sway Bar Diameter - Rear 22 mm
Sway Bar Links Included - Rear Yes
Wheel Alignment Required Yes
Notes Vehicle sway bar and lowered spring kit - contains WSK-SUB005 and BSK011 - essential to Activate more grip

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruWRXAWDVehicle sway bar and lowered spring kit - contains WSK-SUB005 and BSK011 - essential to Activate more grip
2010SubaruWRXAWDVehicle sway bar and lowered spring kit - contains WSK-SUB005 and BSK011 - essential to Activate more grip
2011SubaruWRXAWDVehicle sway bar and lowered spring kit - contains WSK-SUB005 and BSK011 - essential to Activate more grip
