Product Details

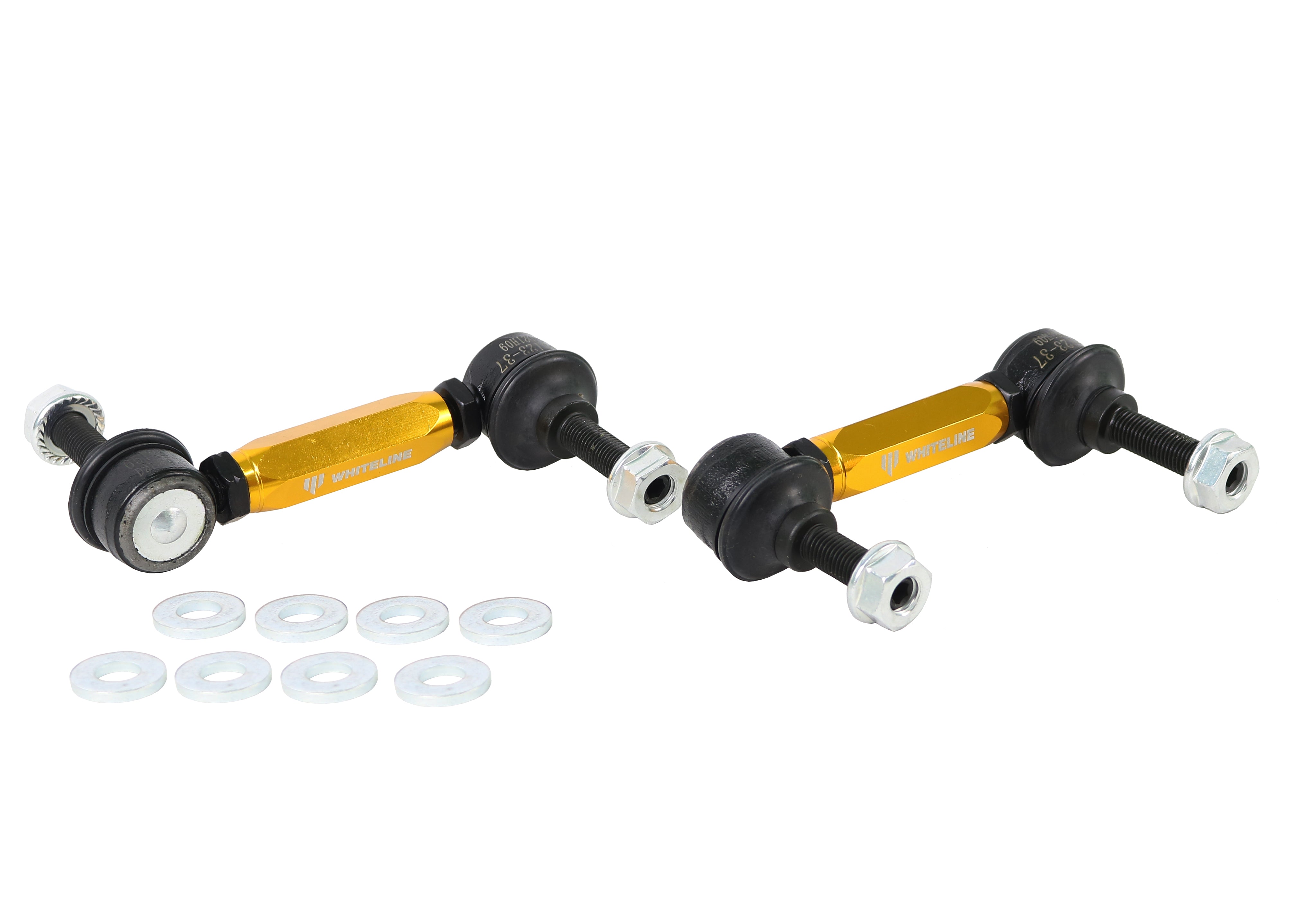

This Whiteline Adjustable Rear Sway Bar Link Kit fits the 2004-2014 Audi A3 (8P). The kit contains 2 links. Whiteline's note for this fit: Adjustable Extra Heavy Duty. The part number is KLC243. Placement: rear.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.

Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. We also list Adjustable Front Sway Bar Link, Front and Rear Sway Bar Kit, and Front Steering Rack And Pinion Mount Bushing for the Audi A3.

Features

  • Install guide: An install guide comes in the box.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Material: The part is made of aluminum alloy.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
Specifications
Part Number KLC243
Part Name Sway Bar Links
Vehicle 2004-2014 Audi A3
Chassis Code 8P
Adjustable Yes
Bolt Thread Diameter 10 mm
Bolts Included No
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 110-135 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2004AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2004AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2005AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2005AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2006AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2006AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2007AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2007AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2008AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2008AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2009AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2009AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2010AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2010AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2011AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2011AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2012AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2012AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2013AudiA34WDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2013AudiA3FWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
