Product Details

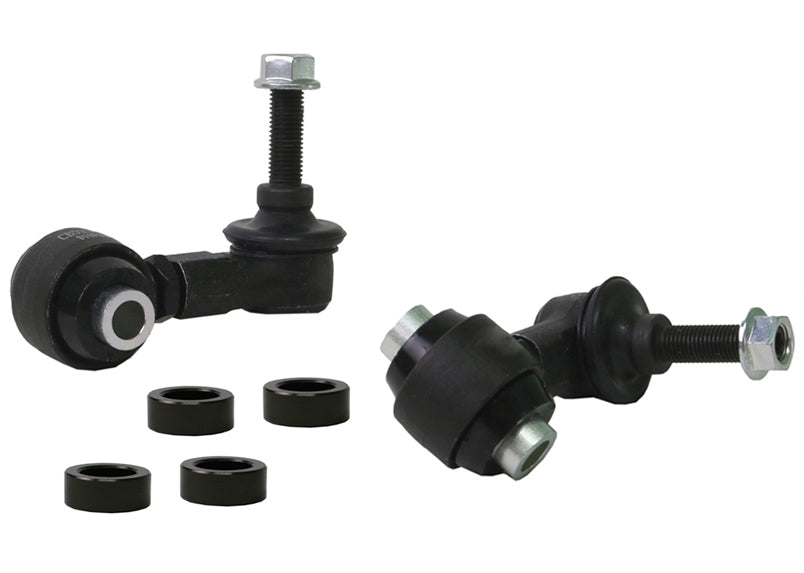

This Whiteline Adjustable Rear Sway Bar Link fits the 2019-2022 Honda Insight (ZE4). Order it as part number KLC217. Position: rear. It is listed for the ZE4 chassis. You receive 2 links and 2 spacers.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. Working on the same car? We also list Adjustable Rear Upper Control Arm Set, 2-Point Adjustable 22mm Rear Sway Bar, and Adjustable Rear Lower Toe Arm Set for the Insight.
Features
- Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
- Hardware: Supplied with locking nuts and washers.
- Material: The part is made of steel.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Compliance voids: Molded voids give the bushing room to flex where it needs to.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
Specifications
| Part Number | KLC217 |
| Part Name | Sway Bar Link |
| Vehicle | 2019-2022 Honda Insight |
| Chassis Code | ZE4 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links, 2 Spacers |
| Length | 55-65 mm |
| Locking Nuts Included | Yes |
| Material | Steel |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | - |
