Product Details

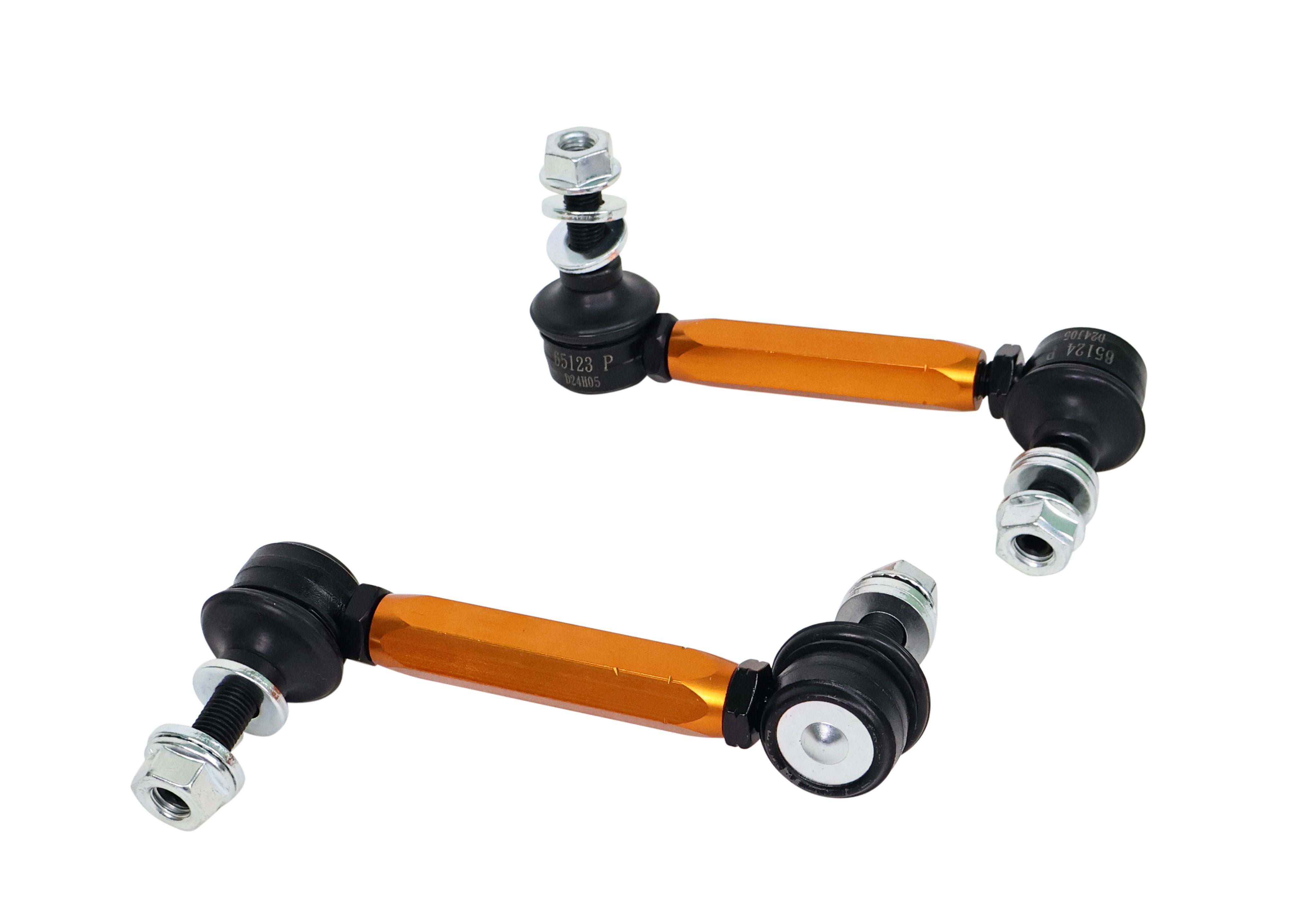

This Whiteline Adjustable Rear Sway Bar Link fits the 2017-2022 Acura NSX. Application note: Adjustable Extra Heavy Duty. The kit contains 2 links. Part number KLC174. Position: rear. The chassis code on the listing is NC1.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward.
Features
- Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Hardware: Also in the box: locking nuts and washers.
- Install guide: Whiteline packs an install guide with it.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
- Construction: Made from strong, light alloy.
Specifications
| Part Number | KLC174 |
| Part Name | Sway Bar Link |
| Vehicle | 2017-2022 Acura NSX |
| Chassis Code | NC1 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 130-155 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | No |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm. |
Fitment for NSX sway bar links
Fits the 2017-2022 Acura NSX. Each model year is listed below.
