Product Details

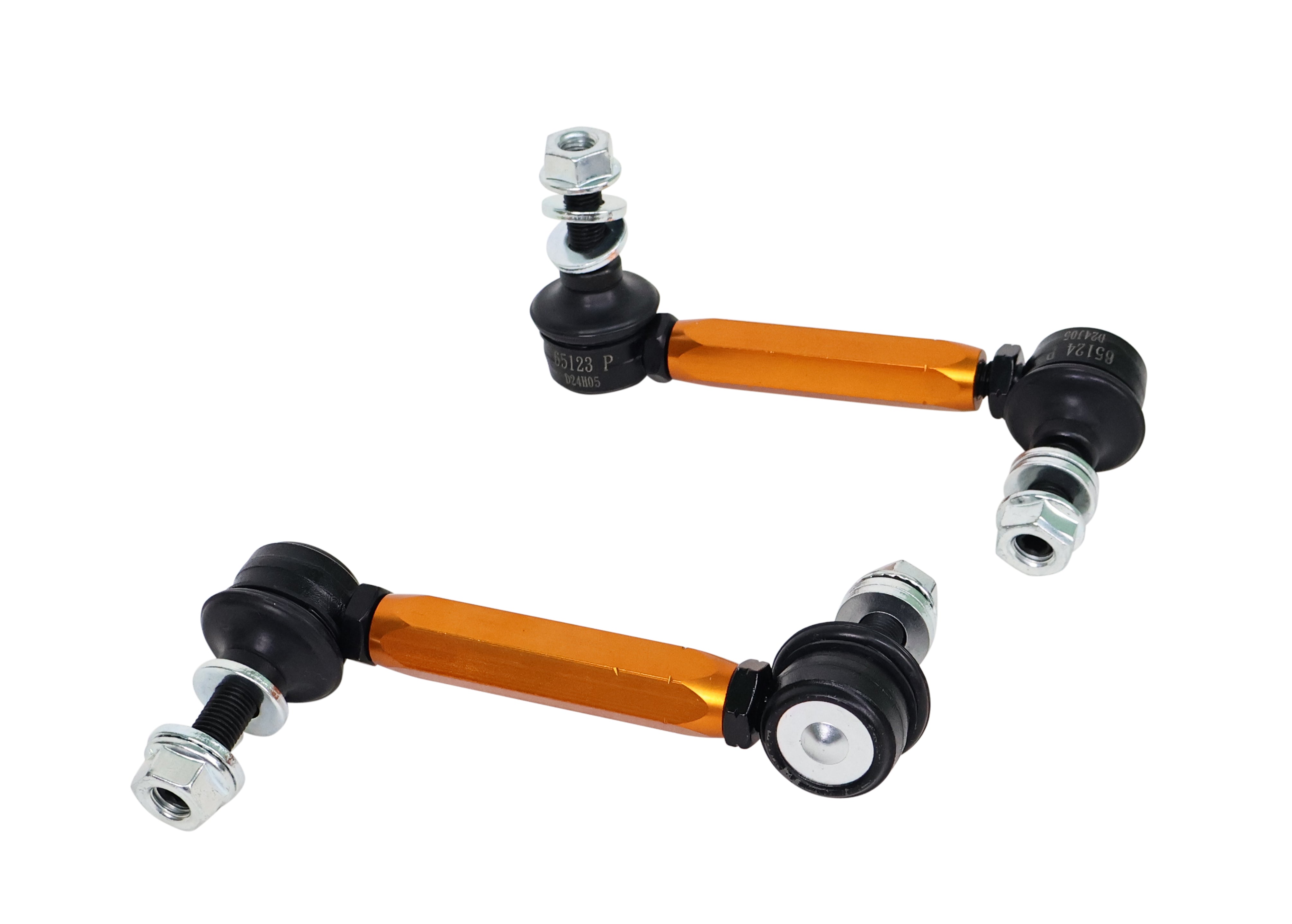

This Whiteline Adjustable Rear Sway Bar Link fits the 2016-2020 BMW 420i Gran Coupe 4 Series. Chassis code: F36. The part number is KLC174. The kit contains 2 links. Position: rear. Whiteline's note for this fit: Adjustable Extra Heavy Duty.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the 420i Gran Coupe 4 Series, see Front Sway Bar Link Assembly and Front Lower Radius Arm Bushing.
Features
- Install guide: Whiteline packs an install guide with it.
- Anodized alloy: The alloy carries an anodized finish for durability.
- Hardware: The kit includes locking nuts and washers.
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
Specifications
| Part Number | KLC174 |
| Part Name | Sway Bar Link |
| Vehicle | 2016-2020 BMW 420i Gran Coupe 4 Series |
| Chassis Code | F36 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 130-155 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | No |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm. |
