Product Details

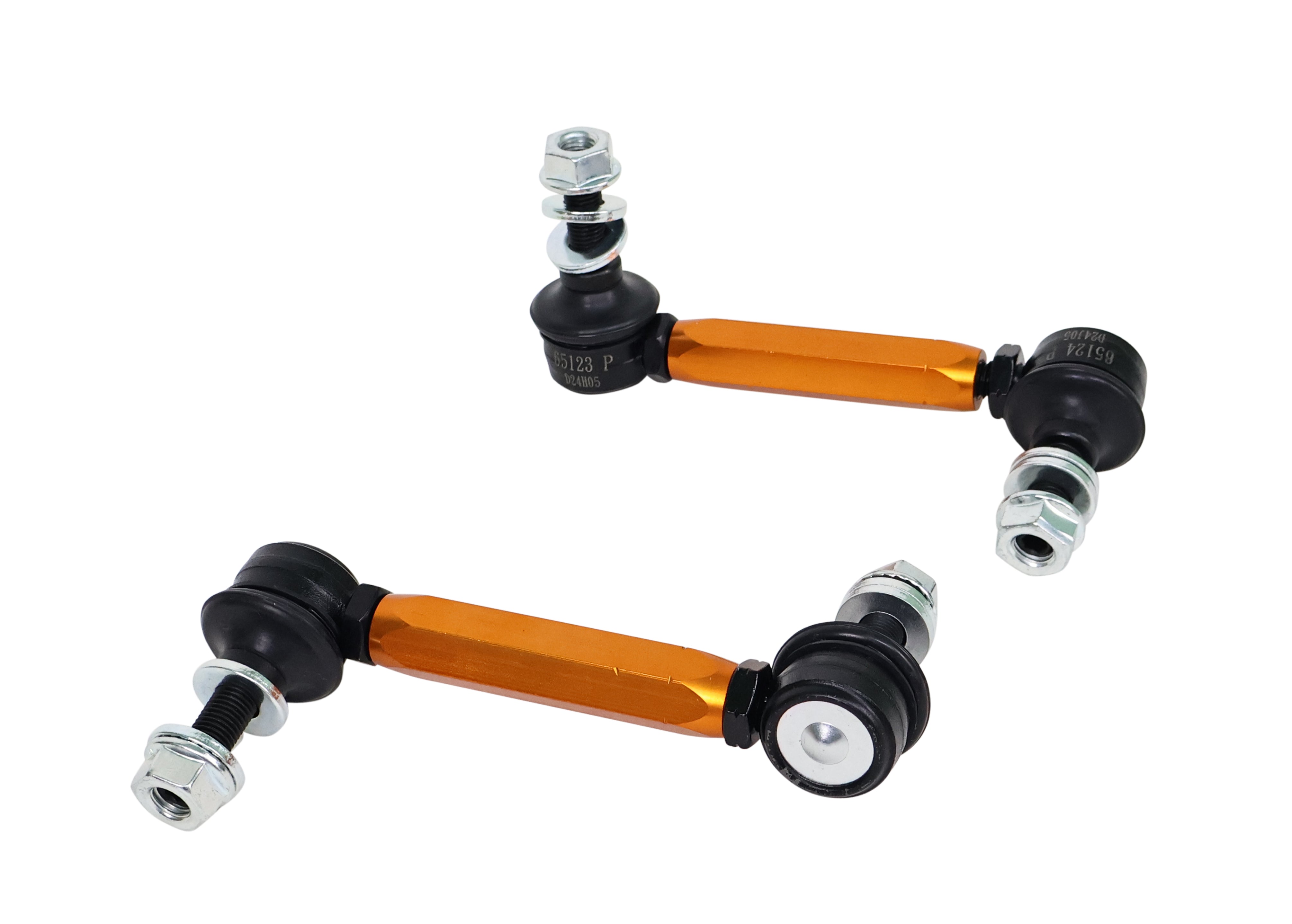

This Whiteline Adjustable Rear Sway Bar Link fits the 2014-2018 BMW 328d xDrive 3 Series. It is listed for the F30/F31 chassis. You receive 2 links. Order it as part number KLC174. Position: rear. Application note: Adjustable Extra Heavy Duty.
The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Expect a moderate job of about 1 hour. It does not require a wheel alignment. To go with it on the 328d xDrive 3 Series, see Rear Subframe Mount Bushing, Rear Lower Trailing Arm Bushing, and Rear Differential Mount Bushing.
Features
- Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
- Hardware: Hardware supplied: locking nuts and washers.
- Install guide: Instructions for fitting are packed in the box.
- Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
- Construction: Made from strong, light alloy.
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
Specifications
| Part Number | KLC174 |
| Part Name | Sway Bar Link |
| Vehicle | 2014-2018 BMW 328d xDrive 3 Series |
| Chassis Code | F30/F31 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 130-155 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | No |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm. |
