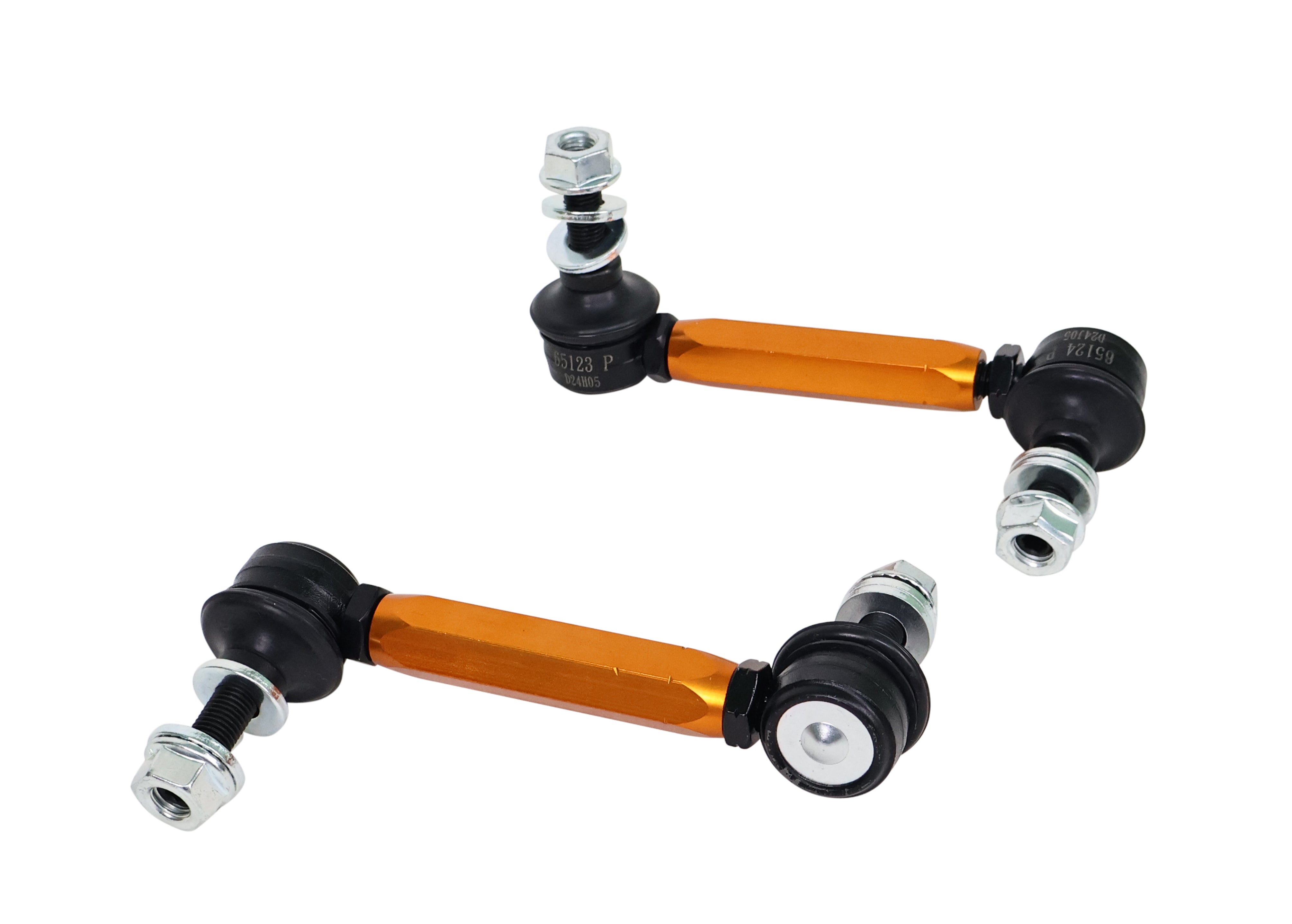

This Whiteline Adjustable Rear Sway Bar Link fits the 2014-2016 BMW 428i xDrive 4 Series. Placement: rear. Whiteline's note for this fit: Adjustable Extra Heavy Duty. Whiteline part number: KLC174. You receive 2 links.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.
Whiteline rates the install as moderate and lists about 1 hour. It does not require a wheel alignment. Working on the same car? We also list Rear Subframe Mount Bushing, Rear Lower Trailing Arm Bushing, and Rear Differential Mount Bushing for the 428i xDrive 4 Series.
Features
- Anodized alloy: The alloy is anodized, adding a durable protective layer.
- Construction: High-strength alloy gives the strength needed without much weight.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Install guide: An install guide comes in the box.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
- Ball joints: Steel ball joint ends handle the loads and rotate to suit the car's geometry.
Specifications
| Part Number | KLC174 |
| Part Name | Sway Bar Link |
| Vehicle | 2014-2016 BMW 428i xDrive 4 Series |
| Chassis Code | F32/F33 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 130-155 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | No |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm. |
