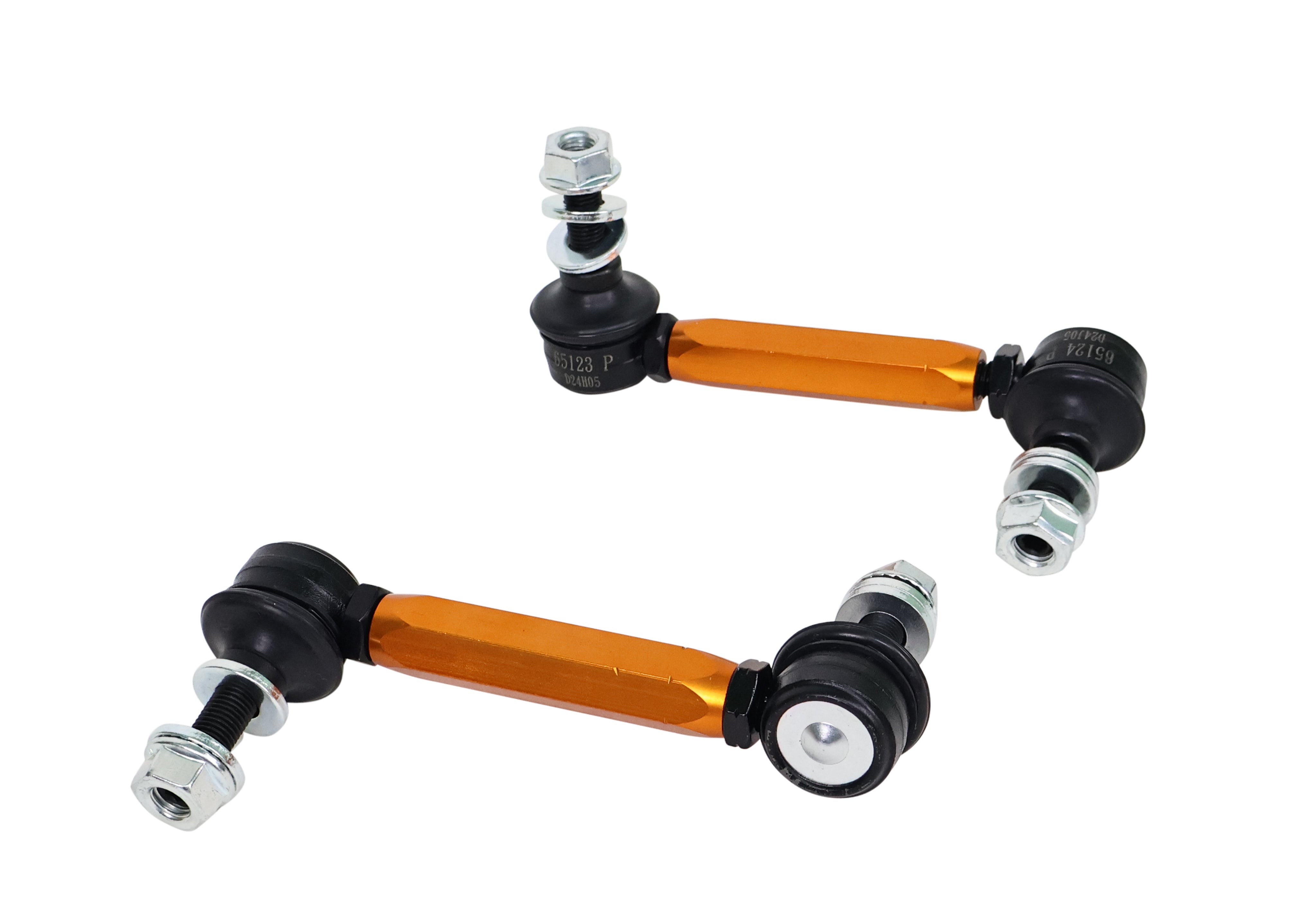

Whiteline Adjustable Rear Sway Bar Link for 2014-2016 BMW 335i GT xDrive 3 Series (F34)

Product Details

This Whiteline Adjustable Rear Sway Bar Link fits the 2014-2016 BMW 335i GT xDrive 3 Series (F34). Application note: Adjustable Extra Heavy Duty. It is listed for the F34 chassis. The part number is KLC174. In the box: 2 links. This part is for the rear of the vehicle. Trim named on the listing: xDrive 3 Series.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the 335i GT, see Adjustable Sway Bar Vehicle Link Kit, Rear Subframe Mount Bushing, and Rear Lower Trailing Arm Bushing.

Features

• Construction: The body is made from high-grade alloy for strength without added weight.
• Ball joints: Steel ball joint ends are built for heavy loads and free movement.
• Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
• Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
• Hardware: Also in the box: locking nuts and washers.
• Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
