Product Details

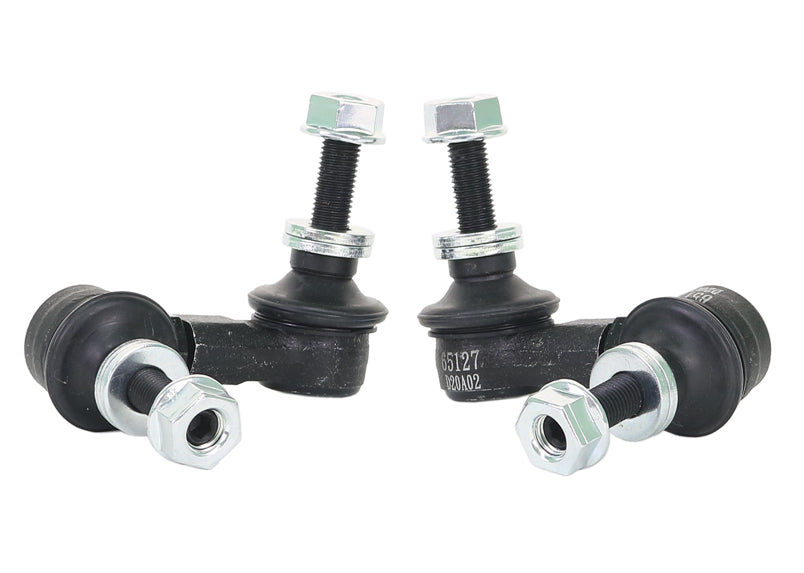

These Whiteline Adjustable Rear Sway Bar Drop Links fit the 2013-2022 Acura ILX. It is listed for the FB/FC chassis. Application note: Adjustable Extra Heavy Duty. Included: 2 links. Whiteline part number: KLC139. Position: rear.
A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Because the length is adjustable, the link can be set on the car so the bar sits relaxed at rest, which matters most after a change in ride height.
Expect a moderate job of about 1 hour. It does not require a wheel alignment. To go with it on the Acura ILX, see 16mm Adjustable Front Camber Bolts and Adjustable Front Sway Bar Link.
Features
- Responsiveness: Sharpens the car's reaction in lane changes and through corners.
- Hardware: Supplied with locking nuts and washers.
- Pre-greased: Pre-greased at the factory so it can be fitted right away.
- Material: Built from steel.
- DIY friendly: Goes on as a direct-fit bolt-on install.
- Ball joints: Steel ball joint ends are built for heavy loads and free movement.
Specifications
| Part Number | KLC139 |
| Part Name | Sway Bar Link |
| Vehicle | 2013-2022 Acura ILX |
| Chassis Code | FB/FC |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 65-70 mm |
| Locking Nuts Included | Yes |
| Material | Steel |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Rear |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Adjustable Extra Heavy Duty. Length 65-70mm. Bolt Diameter 10mm. |
Fitment for ILX sway bar links
Fits the 2013-2022 Acura ILX. Each model year is listed below.
