Product Details

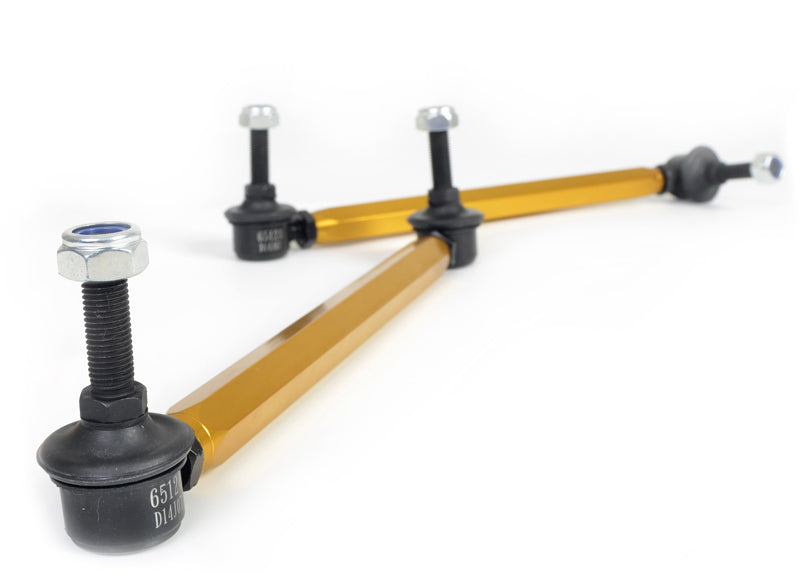

This Whiteline Adjustable Front Sway Bar Link fits the 2001-2005 BMW 320i 3 Series. It goes on the front of the vehicle. You receive 2 links. Order it as part number KLC163.
The front sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. To go with it on the 320i 3 Series, see Adjustable Rear Sway Bar Link, Front Strut Tower Brace, and Front Strut Tower Brace Quick Release Kit.
Features
- Install guide: Whiteline packs an install guide with it.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Preload-free setup: The length can be set on the car to remove preload from the sway bar.
- Anodized alloy: The alloy carries an anodized finish for durability.
- Hardware: Also in the box: locking nuts and washers.
- Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
Specifications
| Part Number | KLC163 |
| Part Name | Sway Bar Link |
| Vehicle | 2001-2005 BMW 320i 3 Series |
| Chassis Code | E46 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 270-295 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Length 270-295mm. Bolt Diameter 10mm. |
Fitment for 320i sway bar links
Fits the 2001-2005 BMW 320i 3 Series. Each model year is listed below.
