Product Details

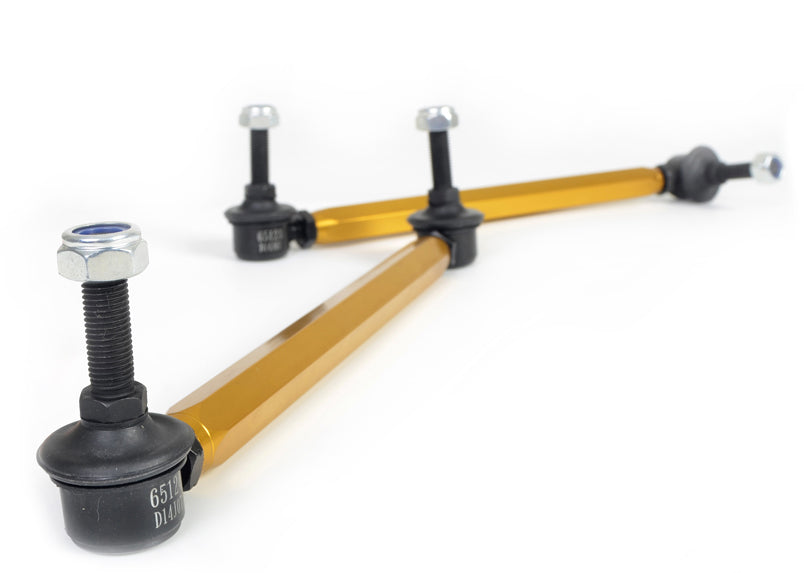

This Whiteline Adjustable Front Sway Bar Link fits the 2000-2005 Toyota Celica. Part number KLC163. Placement: front. It is listed for the T230 chassis. In the box: 2 links.
A sway bar link is the short rod that ties each end of the front sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.
Installation is rated moderate, with about 1 hour of work listed. A wheel alignment is not required. To go with it on the Celica, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Front Bushing, and Heavy Duty Blade Adjustable 24mm Front Sway Bar.
Features
- Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
- Hardware: The kit includes locking nuts and washers.
- Install guide: Step-by-step installation instructions come with it.
- Pre-greased: Joints arrive pre-greased and ready to install.
- Construction: Alloy construction keeps the weight down while handling the loads.
- Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
Specifications
| Part Number | KLC163 |
| Part Name | Sway Bar Link |
| Vehicle | 2000-2005 Toyota Celica |
| Chassis Code | T230 |
| Adjustable | Yes |
| Bolt Thread Diameter | 10 mm |
| Grade Type | Performance |
| Grease Fitting Included | No |
| Greaseable | No |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Links |
| Length | 270-295 mm |
| Locking Nuts Included | Yes |
| Material | Aluminum Alloy |
| Pre-Greased | Yes |
| Washers Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | No |
| Notes | Length 270-295mm. Bolt Diameter 10mm. |
Fitment for Celica sway bar links
Fits the 2000-2005 Toyota Celica. Each model year is listed below.
