Product Details

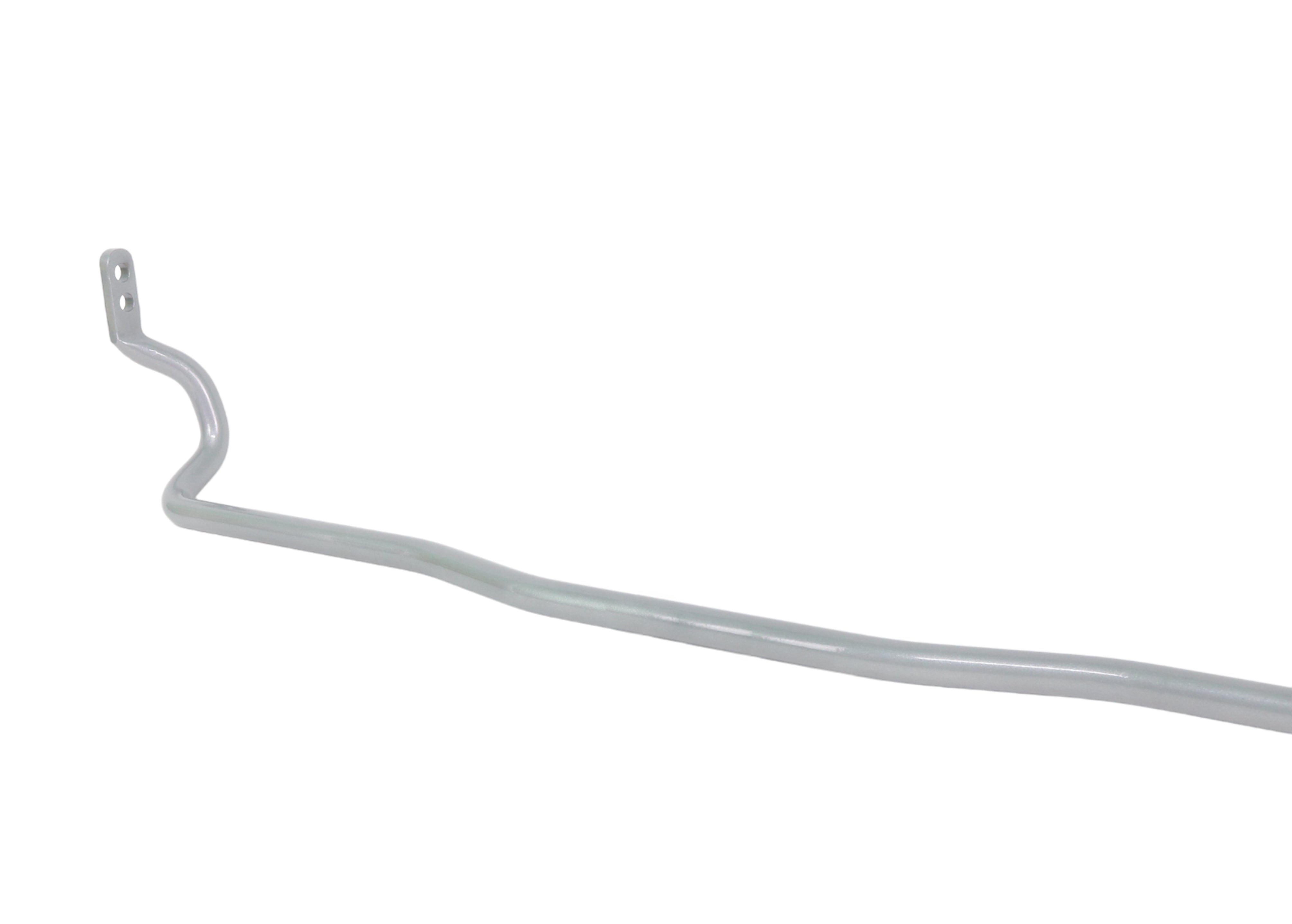

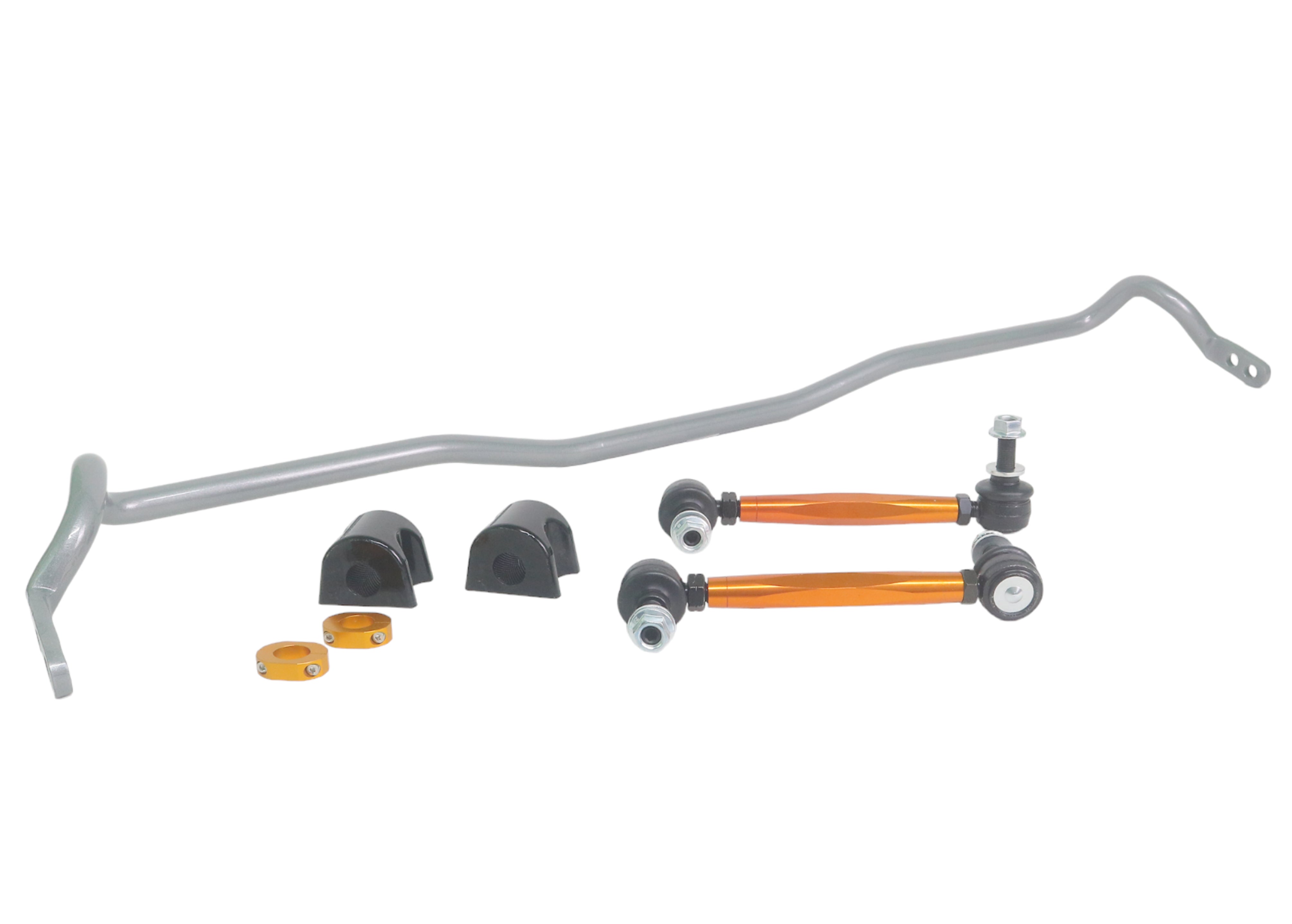

This Whiteline 2-Point Adjustable 20mm Front Sway Bar fits the 2017-2020 Toyota 86. Whiteline part number: BSF45Z. It goes on the front of the vehicle. The kit contains 1 sway bar, 2 links, 2 bushings, 2 lateral locks, and 4 washers. Application note: Incl KLC179: 2 Point Adjustable.
The front bar connects the two front wheels so that load carried by one side is shared with the other. By stiffening that connection, the car leans less and the front tires work more evenly in a corner. Adjustable mounting points let you step the stiffness up or down without changing the bar.
Whiteline rates the install as moderate and lists about 1 hour. Plan on a wheel alignment afterward. To go with it on the Toyota 86, see Adjustable Rear Sway Bar Link, Front Control Arm Lower Inner Rear Bushing, and Adjustable Front Sway Bar Link.
Features
- Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Lateral locks: DIY lateral locks stop the bar from shifting sideways under cornering loads.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Preload-free setup: Length adjustment on the car lets you take preload out of the bar.
- Adjustable stiffness: The bar has more than one mounting position so stiffness can be tuned.
Specifications
| Part Number | BSF45Z |
| Part Name | Sway Bar |
| Vehicle | 2017-2020 Toyota 86 |
| Chassis Code | ZN6 |
| Adjustable | Yes |
| Bar Color | Silver |
| Bar Diameter | 20 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Finish | Powder Coated |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 1 Sway Bar, 2 Links, 2 Bushings, 2 Lateral Locks, 4 Washers |
| Material | Solid Spring Steel |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Suspension Grade Type | Performance |
| Sway Bar Links Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Incl KLC179 - 2 Point Adjustable |
