Product Details

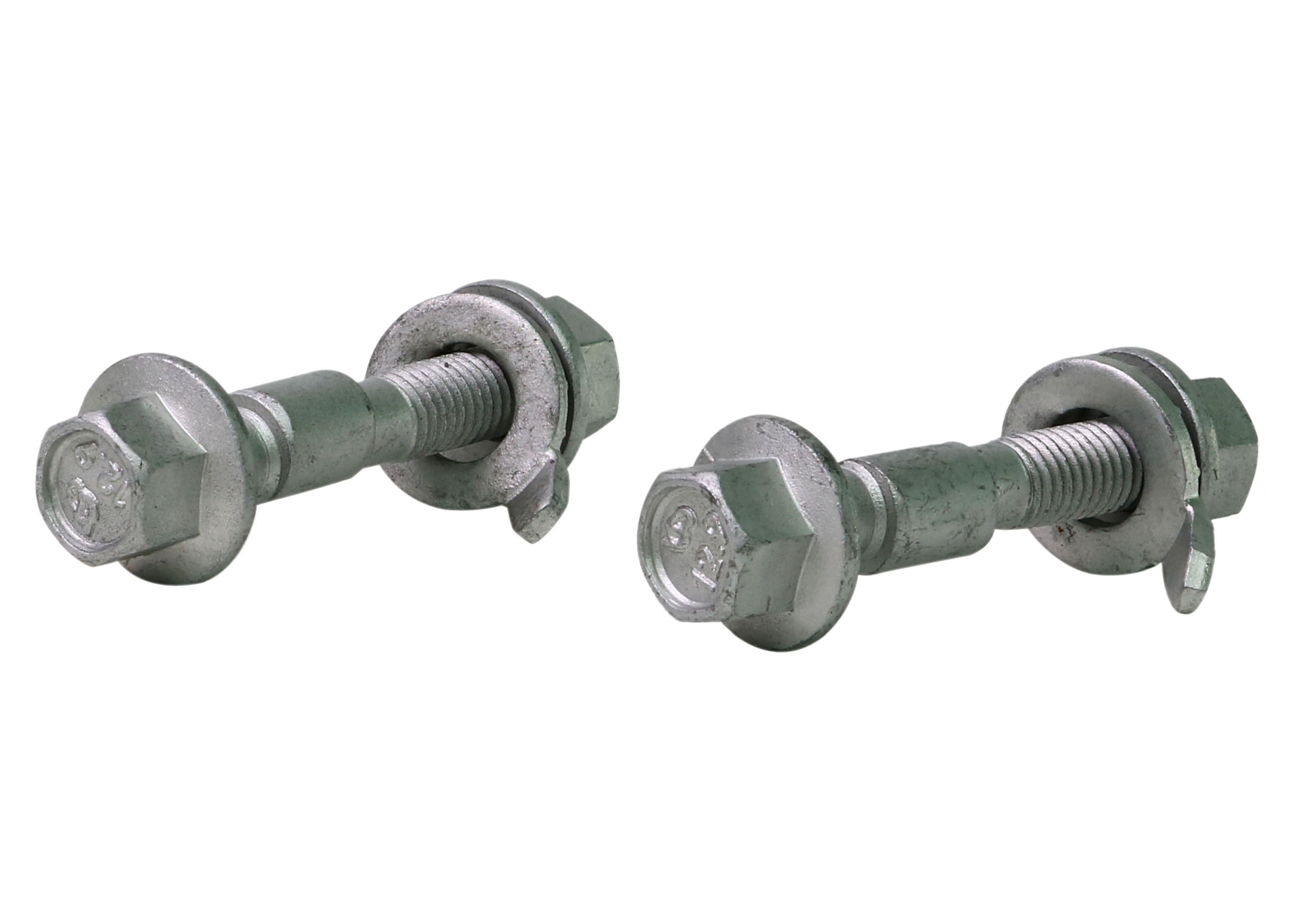

These Whiteline 12mm Adjustable Front Camber Bolts fit the 2018-2024 GMC Terrain. It is listed for the D2XX chassis. Whiteline part number: KCA412. Whiteline's note for this fit: Adds +/- 0.75 degrees Camber. Position: front. The kit contains 2 bolts.
Alignment problems often come down to one angle the factory settings cannot reach. After a car is lowered, fitted with different wheels, or simply gets older, camber can drift outside the range a shop is able to correct. These bolts swap in for the originals and give the technician the extra movement needed.
Expect a difficult job of about 1 hour. Get the car aligned once it is back on the ground.
Features
- Install guide: Whiteline packs an install guide with it.
- Locking washer: A toothed lock washer holds the setting without relying on friction alone.
- Camber adjustment: Aims to keep camber in an effective range as the body rolls.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Hardware: The matching nuts are included.
Specifications
| Part Number | KCA412 |
| Part Name | Camber Bolt |
| Vehicle | 2018-2024 GMC Terrain |
| Chassis Code | D2XX |
| Drivetrain | AWD/FWD |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Color | Gray |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bolts |
| Nut Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.75 Degree Camber |
