Product Details

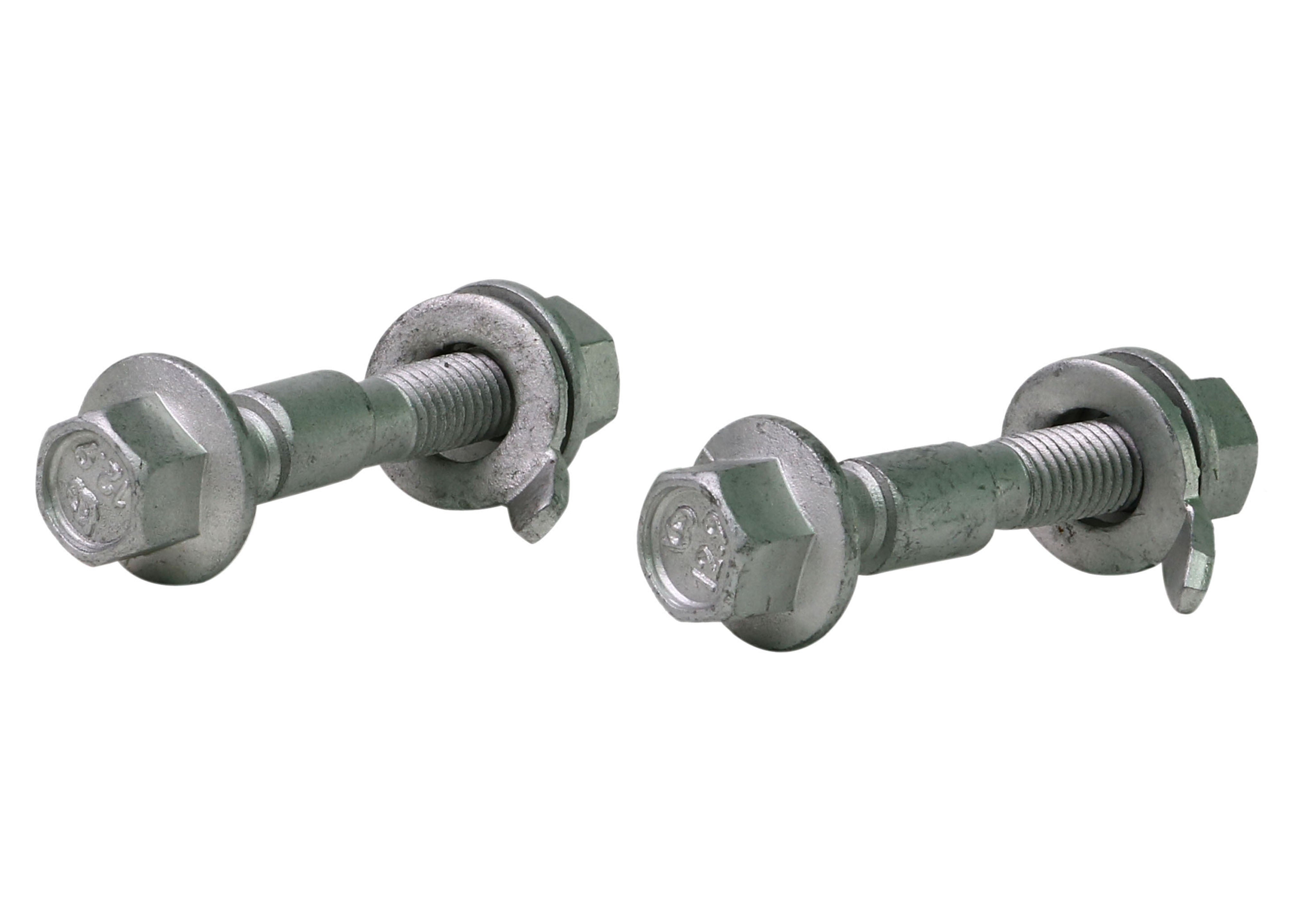

These Whiteline 12mm Adjustable Front Camber Bolts fit the 2002-2006 Suzuki XL-7. Whiteline's note for this fit: Adds +/- 0.75 degrees Camber. This part is for the front of the vehicle. You receive 2 bolts. Whiteline part number: KCA412.
These bolts are a simple way to get adjustment where the factory provided none. They bolt in where a standard fastener sits, and once the alignment is set a toothed lock washer keeps it from creeping, so the angle stays where the shop left it.
Expect a difficult job of about 1 hour. An alignment is required after installation. To go with it on the XL-7, see Front Sway Bar Link Bushing Kit, Front Sway Bar Link Kit - Upgrade, and Front Upper Shock Absorber Bushing Kit.
Features
- Locking washer: A toothed lock washer secures the adjustment.
- Hardware: The matching nuts are included.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Install guide: Written install instructions are included with the part.
- Camber adjustment: Aims to keep camber in an effective range as the body rolls.
Specifications
| Part Number | KCA412 |
| Part Name | Camber Bolt |
| Vehicle | 2002-2006 Suzuki XL-7 |
| Chassis Code | JA |
| Adjustable | Yes |
| Bolt Thread Diameter | 12 mm |
| Color | Gray |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 1 |
| Kit Contents | 2 Bolts |
| Nut Included | Yes |
| Vehicle Placement | Front |
| Wheel Alignment Required | Yes |
| Notes | Adds +/- 0.75 Degree Camber |
Fitment for XL-7 camber bolts
Fits the 2002-2006 Suzuki XL-7. Each model year is listed below.
