*Product images may be generic and do not always represent the actual SKU.

VIAIR

SKU: 48012

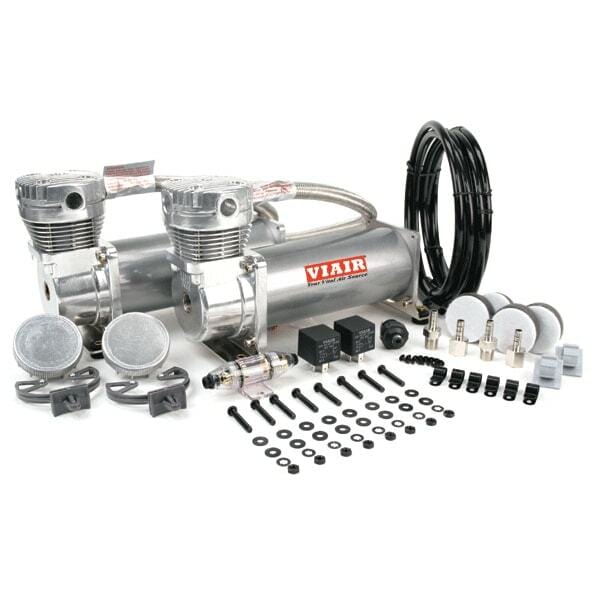

VIAIR 480C Dual Pack Compressor (Pewter) - 200 PSI

$440.95 $628.95 On Sale
Authorized Retailer
100% Authorized Direct Retailer
Free Shipping
Orders $250+ ship for free in the USA.
Low-Price Guarantee
Listed at the lowest price guaranteed.
0% APR Financing
Easy payment plans with Affirm and Shop Pay.

Providing 200PSI and a 100% duty cycle, VIAIR’s 480C Dual Performance Value Pack is an ideal air source solution for any air suspension kit, industrial applications, air horns, or off-road pneumatic needs. Each Dual Pack includes two VIAIR 480C Chrome air compressors, two heavy duty 40-amp relays, a 165 PSI cut-on, 200 PSI cut-off pressure switch, and remote mount filter assemblies with mounting hardware.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

Features

  • (2) 480C (Chrome) Air Compressors w/Thermal Overload Protectors
  • (2) Air Filter Assemblies – (2) Remote Mount Brackets
  • (2) Sets of Remote Mount Fittings
  • (2) Sets of Spare Air Filter Elements
  • (2) Leader Hose Clips
  • (6) Air Line Clips with Included Hardware
  • (8) Sets of Nuts, Bolts, Washers and Lock Washers
  • (1) Heavy Duty Tube Style Fuse Holder (Up to 60-Amp fuse)
  • (2) 40-Amp Relays
  • (1) One Heavy Duty Pressure Switch (165 PSI on, 200 PSI off)
  • (2) Stainless Steel Braided Leader Hoses with Inline Check Valve
  • Air Line (For Remote Mount Filter Installation)

Specifications

  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI (50% @ 200 PSI)
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 10.0 Gallon
  • Combined Max. Amp Draw: 44 Amps
  • Ingress Protection Rating: IP67
  • Dimensions: 10.87″L x 4.2″W x 6.75″H (Each Unit)
  • Net Weight: 22.10 lbs.

Additional Info Downloads:

VIAIR Corporation warrants this product to the end-user, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from the provided date of purchase for the original purchaser of the product. This warranty does not cover abuse, operation in a manner inconsistent with the product’s design, or damage resulting from exposure to the elements. If the defect is considered "under warranty," VIAIR will, at its option, repair or replace the product free of charge to the person who purchased the product.

VIAIR Warranty Links
