VIAIR 310 Stealth Series Compressor (Black) - 200 PSI
VIAIR 310 Stealth Series Compressor (Black) - 200 PSI
VIAIR 310 Stealth Series Compressor (Black) - 200 PSI
VIAIR 310 Stealth Series Compressor (Black) - 200 PSI
VIAIR 310 Stealth Series Compressor (Black) - 200 PSI
VIAIR 310 Stealth Series Compressor (Black) - 200 PSI

VIAIR

|

SKU: 31030

VIAIR 310 Stealth Series Compressor (Black) - 200 PSI

$508.75
Ask a question

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

1-Year Manufacturer Warranty

VIAIR Corporation warrants this product to the end-user, when properly installed and under normal conditions of use, to be free from defects in workmanship and materials for a period of one year from the provided date of purchase for the original purchaser of the product. This warranty does not cover abuse, operation in a manner inconsistent with the product’s design, or damage resulting from exposure to the elements. If the defect is considered "under warranty," VIAIR will, at its option, repair or replace the product free of charge to the person who purchased the product.

More Information

Product Details

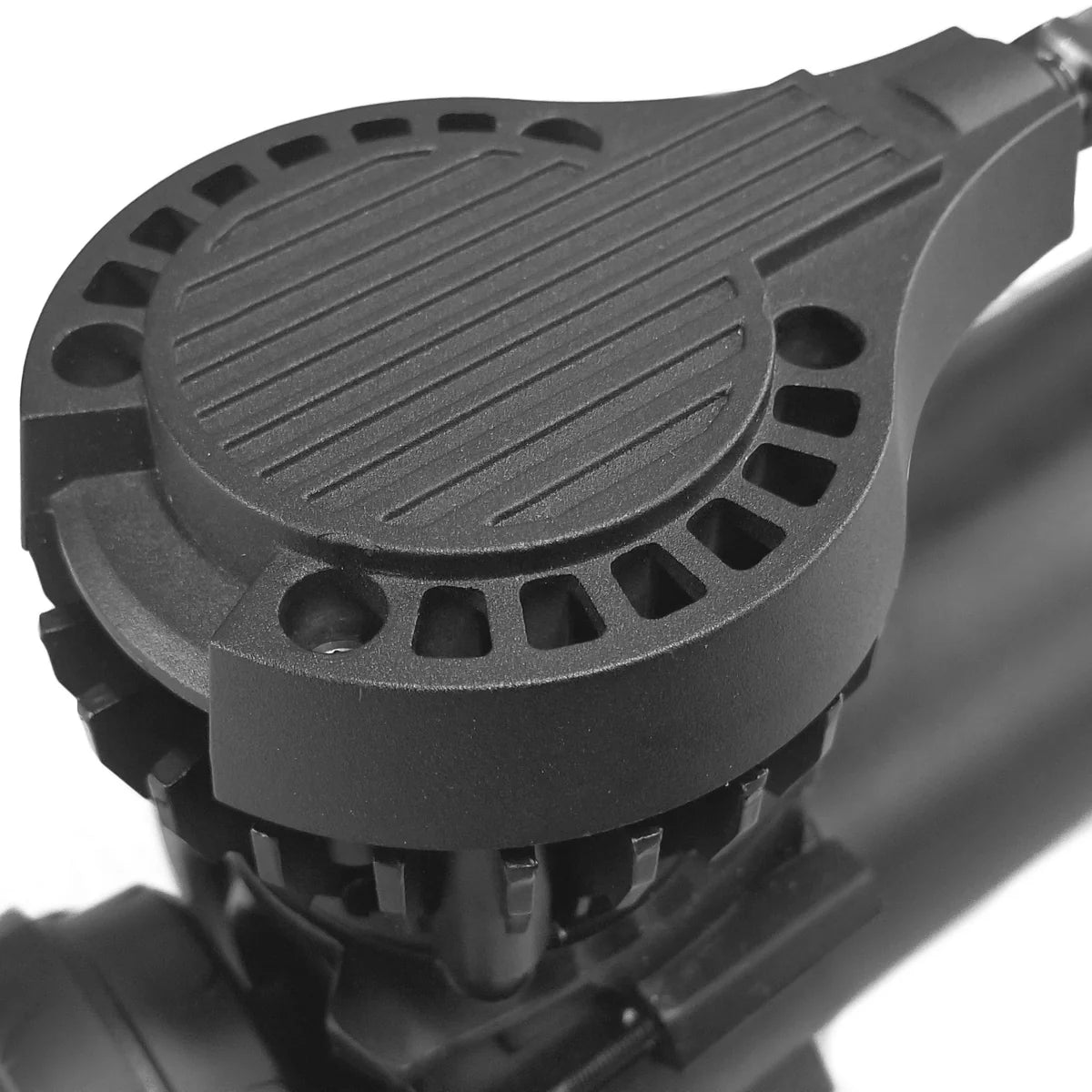

The all-new 310 Stealth-Series (SS) compressors feature upgraded internals, a newly developed head and a new metal filter assembly with internally integrated muffler, reducing audible noise levels by up to 50% when compared to our other comparable compressors. Additionally, the 310 Stealth-Series compressors are RoHS/REACH certified and equipped with newly designed spring-loaded vibration isolators, black sleeved stainless steel leader hose and black nickel plated check valves that eliminate the possibility of high amperage restarts.

Please Note: Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8” is 10 ~ 11 ft. lbs. Recommended torque for 1/4” and 3/8” is 16 ~ 18 ft. lbs.

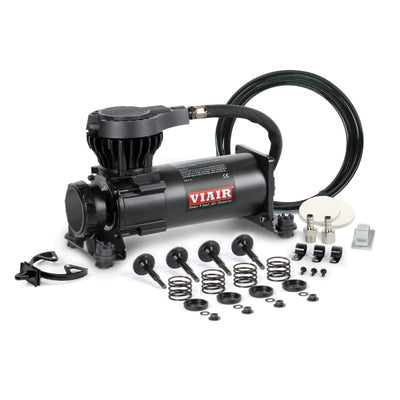

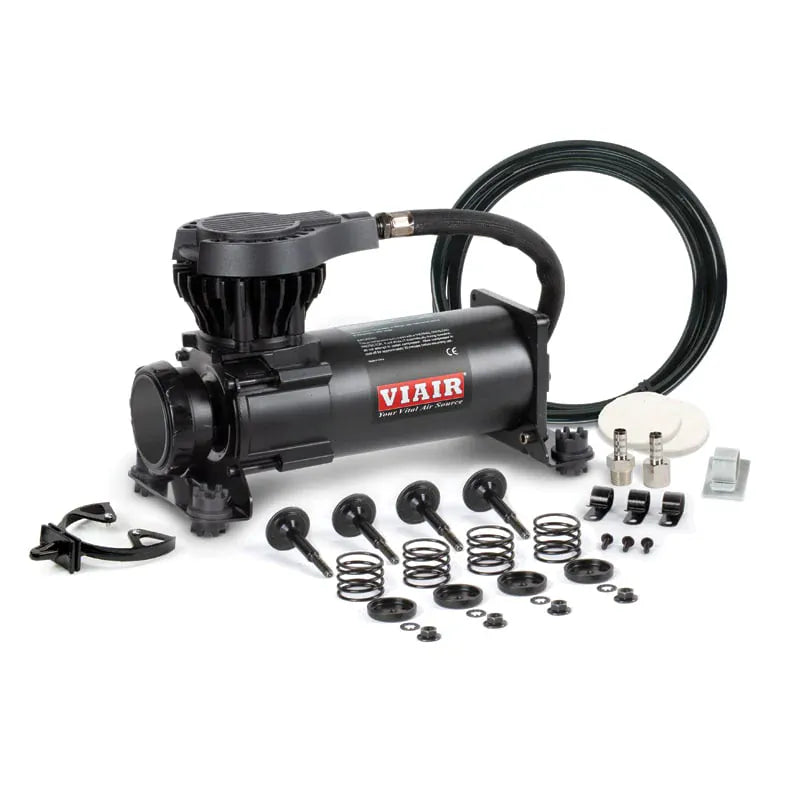

Features

  • Thermal Overload Protector
  • Check Valve

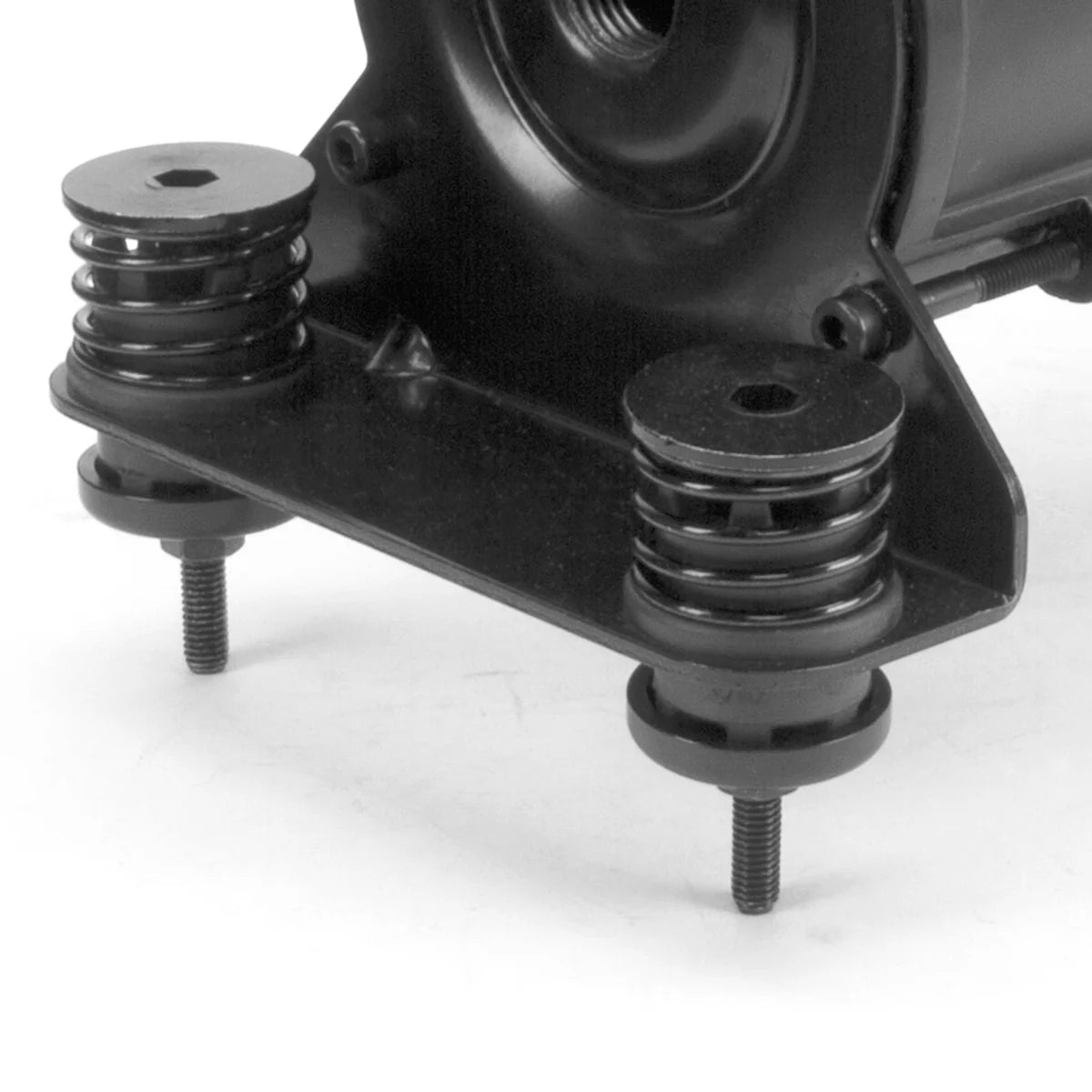

  • Spring Loaded Vibration Isolating Feet
  • Mounting Hardware

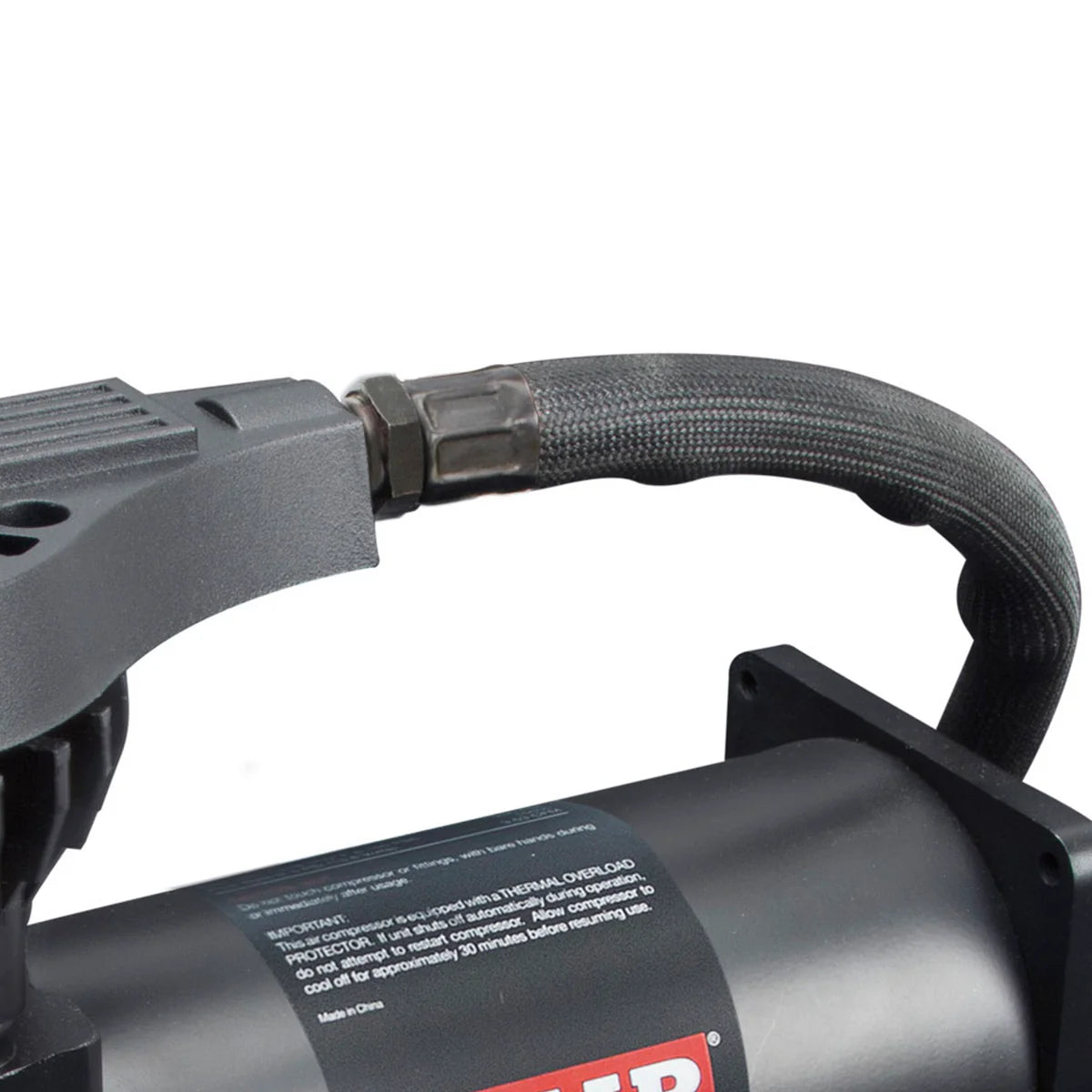

  • Stainless Steel Braided Leader Hose
  • Air Line for Remote Mount Air Filter

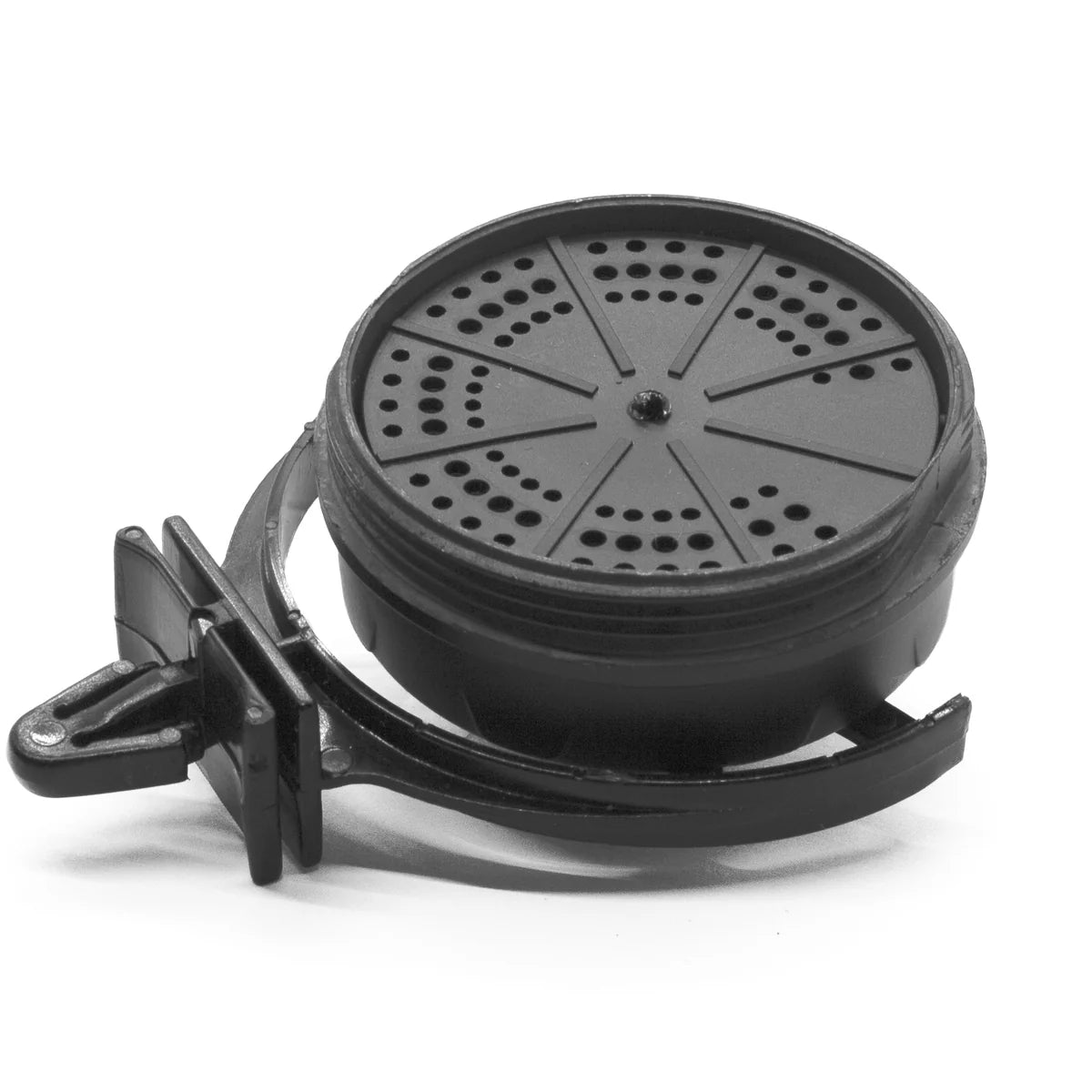

  • Remote Mount 6-Stage Air Filter/Muffler Assembly
  • (2) Replacement Air Filter Elements
  • Installation Instructions

Specifications

  • CFM: 1.46 @ 0 PSI
  • 12-Volt
  • Permanent Magnetic Motor
  • Duty Cycle: 100% @ 100 PSI
  • Duty Cycle: 50% @ 200 PSI
  • Max. Working Pressure: 200 PSI
  • Max. Air Tank Size: 5.0 Gallon
  • Max. 12V Amp Draw: 23-Amps
  • Ingress Protection Rating: IP67
  • Max Ambient Temp: +158°F
  • Min Ambient Temp: -40°F

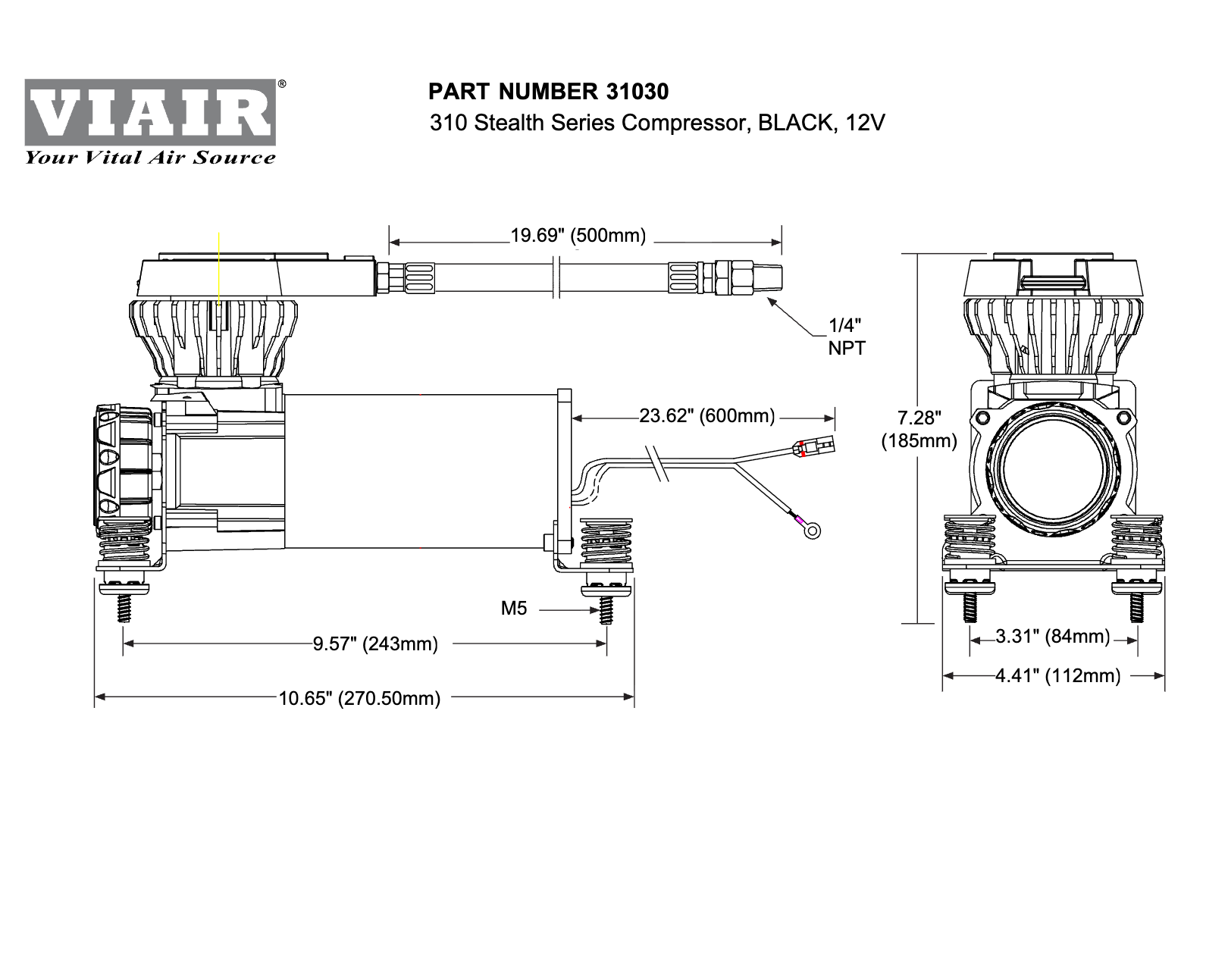

  • Dimensions: 10.7″L x 4.4″W x 7.3″H
  • Net Weight: 9.75 lbs.
  • In Rush Current (A) @ 0 PSI = 80.73
  • dB @ 0 PSI = 60.8
