Product Details

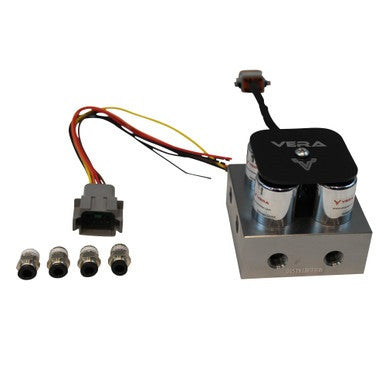

The VERA 4 Solenoid Valve Unit is the two-corner manifold behind a front-and-rear air setup, putting four solenoids, the ports, and the wiring harness in one block instead of a scatter of individual valves and splices.
Solenoids are rated to 180 PSI and the block is fitted with push-to-connect fittings, so the air line seats without thread sealant or a wrench. Buy it as the valve half of a system you are assembling yourself, or as the service replacement when a solenoid on an existing VERA setup stops sealing.
Features
- Two-corner control from a single manifold block
- Four solenoids rated to 180 PSI
- Push-to-connect fittings, no thread sealant needed
- Wiring harness included
- Available in 1/4 inch and 3/8 inch port sizes
Specifications
| Part Number | VA-PBK414 (1/4"); VA-PBK4138 (3/8") |
| Part Name | VERA 4 Solenoid Valve Unit |
| Configuration | Two corner, four solenoid |
| Pressure Rating | 180 PSI |
| Fittings | Push-to-connect |
| Harness | Included |
| Notes | Order the port size that matches your existing air line. |
