Product Details
Take your custom air suspension setup to the next level with the Universal Air Frosted Acrylic Air Tank with RGB LED Rings. It is designed to look as good as it performs, pairing a thick, sleek acrylic body with customizable RGB lighting so your air system is part of the show.
The tank is built on Universal Air's proven billet tank design, with internal support rods that hold the air while keeping the look clean and simple. The removable 90-degree fitting plates let you hide your connections, or you can remove the plates and run fittings straight out of the end caps. A brushed aluminum liner helps conceal condensation and adds a finished look behind the frosted acrylic.
The integrated RGB LED rings give you a range of colors and lighting modes, and the tank looks just as good with the lights off. It was a 2021 SEMA Global Media Award winner and is assembled in the USA.
Features
- Thick acrylic construction
- Edge-lit RGB LED lighting
- 3.5 gallon actual volume

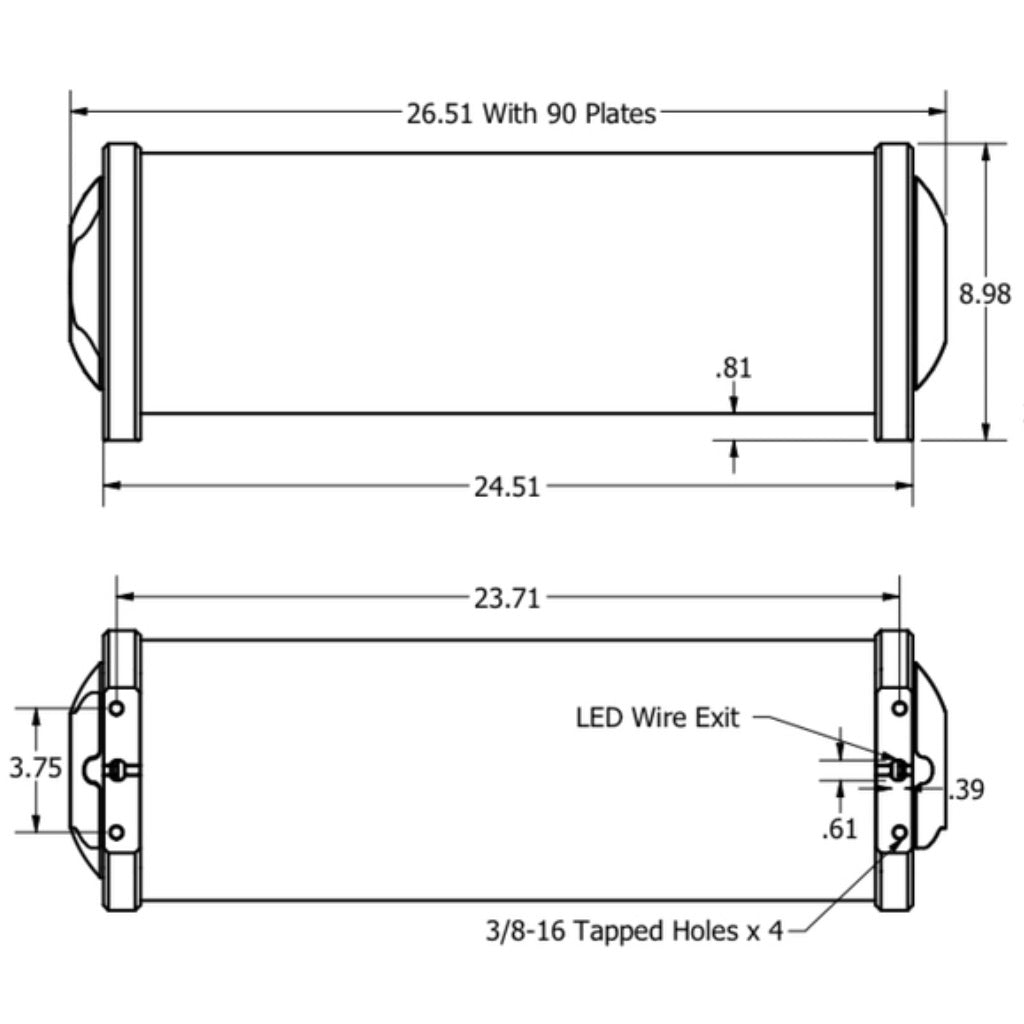

- 8.5" wide x 9" tall x 26.5" long
- Bolt-together design
- Over 1,000 PSI burst pressure
- Brushed aluminum liner
- Internal frosting for a unique illuminated look
- Removable 90-degree, 1" thick fitting plates

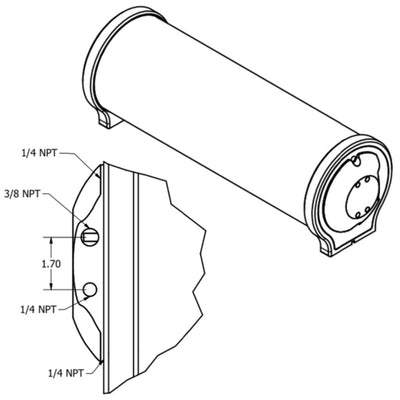

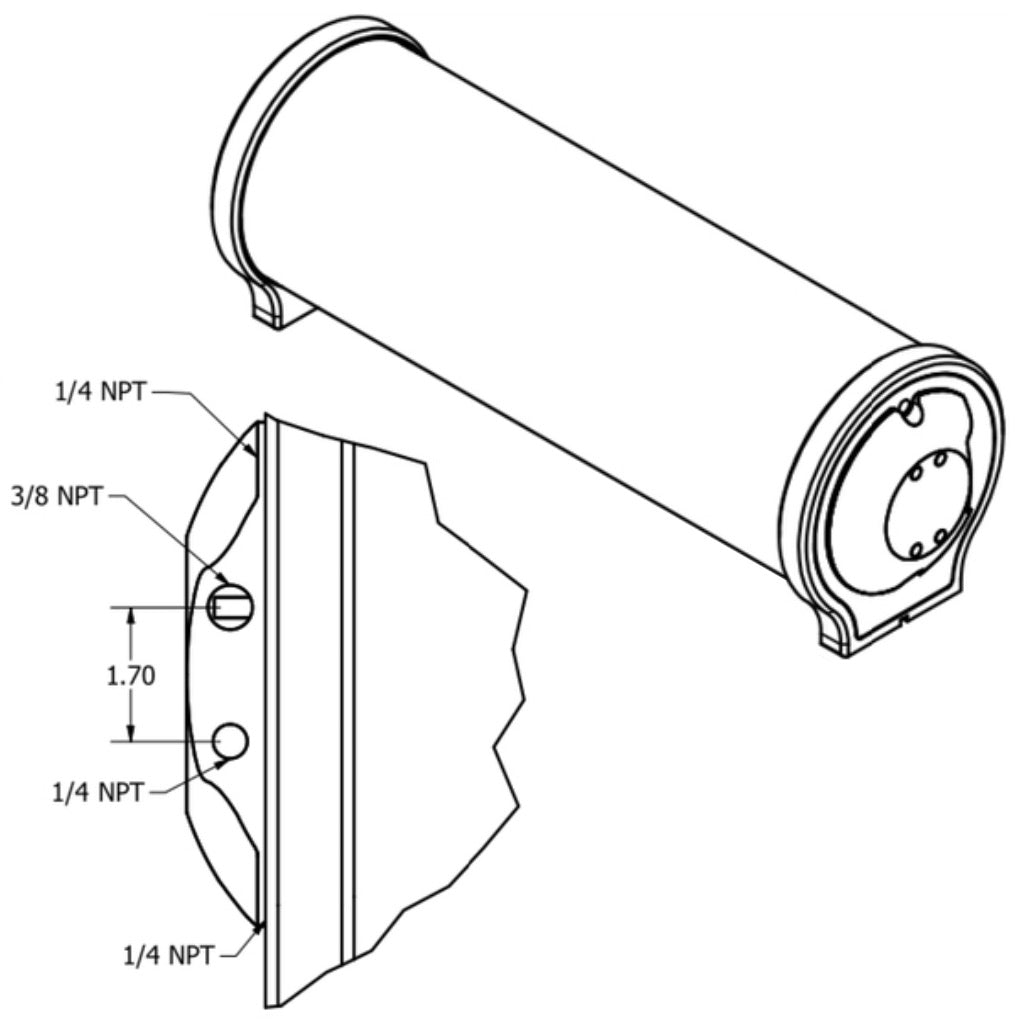

- (3) 1/4" NPT and (1) 3/8" NPT ports on each end cap
- (2) standard 4-pin RGB connectors, 12V DC
- No visible hardware; wire exit and mounting through the feet
- Patent pending
| Part Number | Acrylic RGB Air Tank Black / Acrylic RGB Air Tank Silver |
| Part Name | Universal Air Acrylic RGB Air Tank |
| Tank Capacity | 3.5 Gallon (actual volume) |
| Dimensions | 8.5" W x 9" H x 26.5" L |
| Burst Pressure | Over 1,000 PSI |
| Ports | (3) 1/4" NPT and (1) 3/8" NPT per end cap |
| Construction | Frosted acrylic with brushed aluminum liner, bolt-together design |

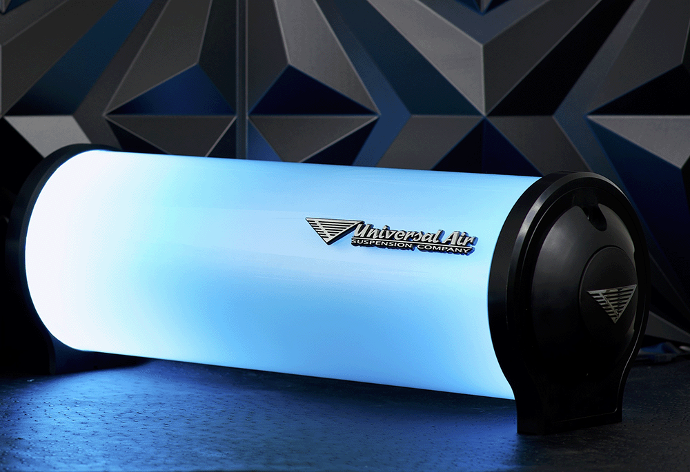

| Lighting | Edge-lit RGB LED rings |
| Electrical | (2) standard 4-pin RGB connectors, 12V DC |
| Fitting Plates | Removable 90-degree, 1" thick |

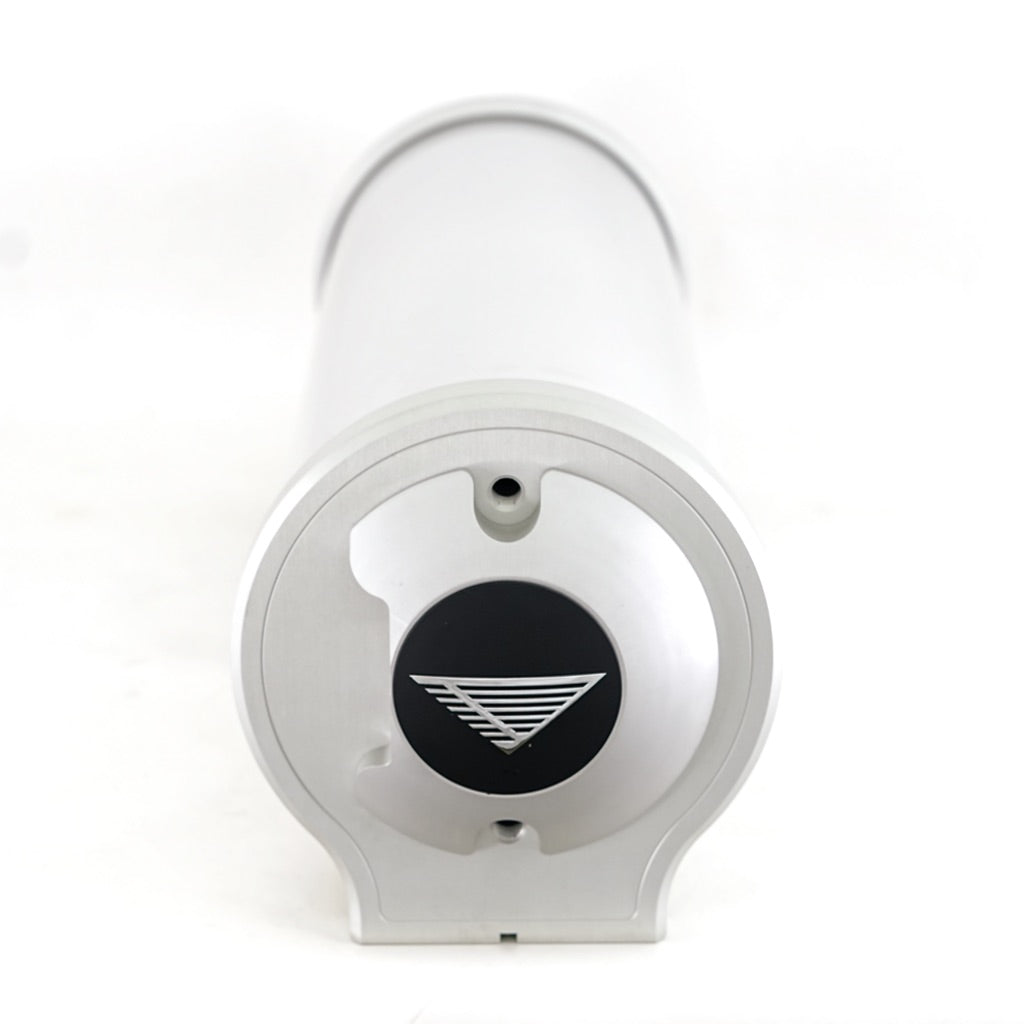

| End Cap Colors | Black or Silver |
| Shipping Weight | 48 lb |
| Country of Origin | USA |
