Product Details
Combining nearly two decades in the Coilover and a decade in Air Suspension industries VERA brings you a solution for the 2013-2018 Ford C-Max (C214) that offers the best of both worlds. Our air cup kit provides on demand height adjustment while maintaining the performance and reliability that users expect from coilovers.

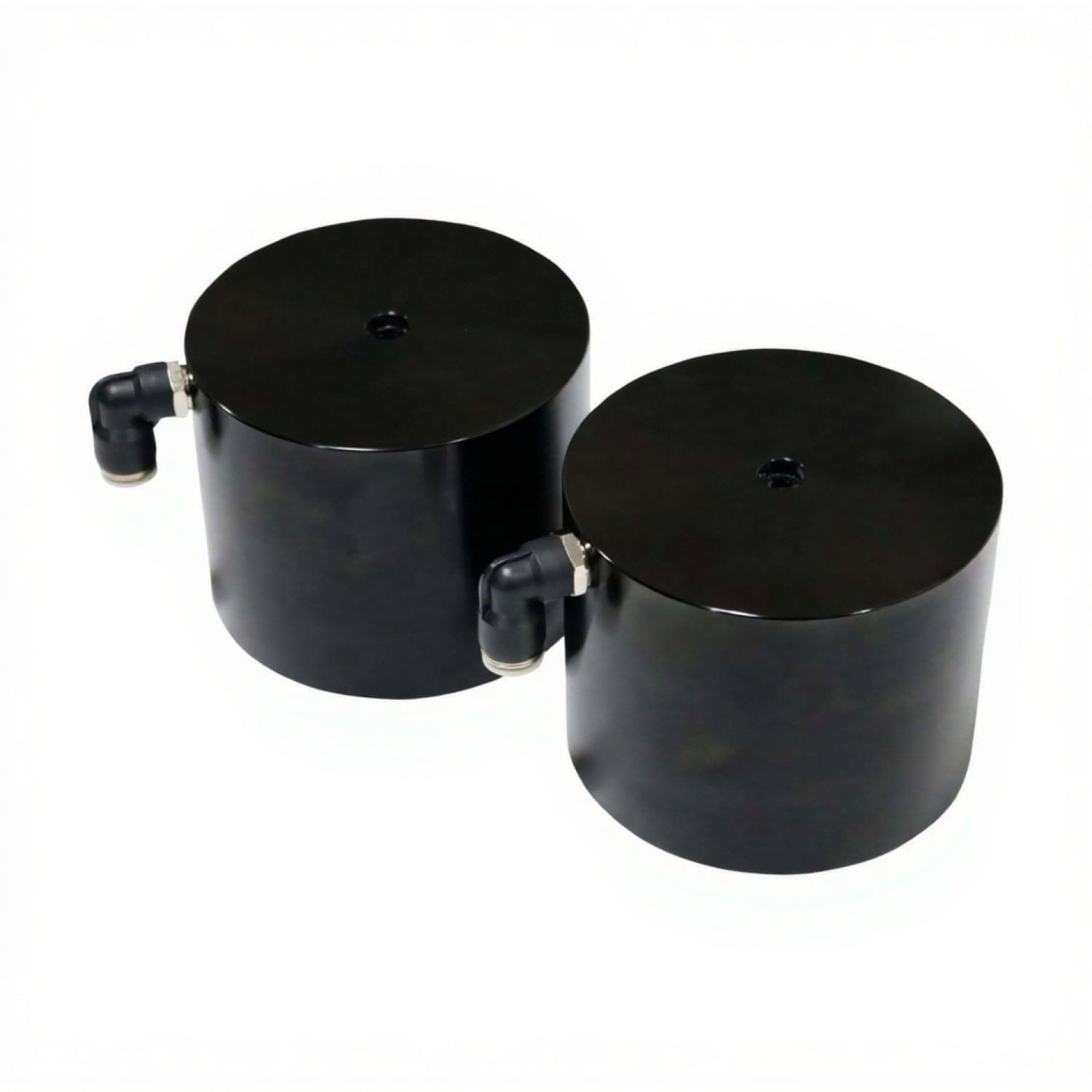

Manufactured from CNC billet aluminum with a double sealed piston which with the push of a button can raise the vehicle up to 2 Inch in seconds. This height increase allows lowered vehicles to clear speed bumps, driveway inclines/declines and trailers with ease.

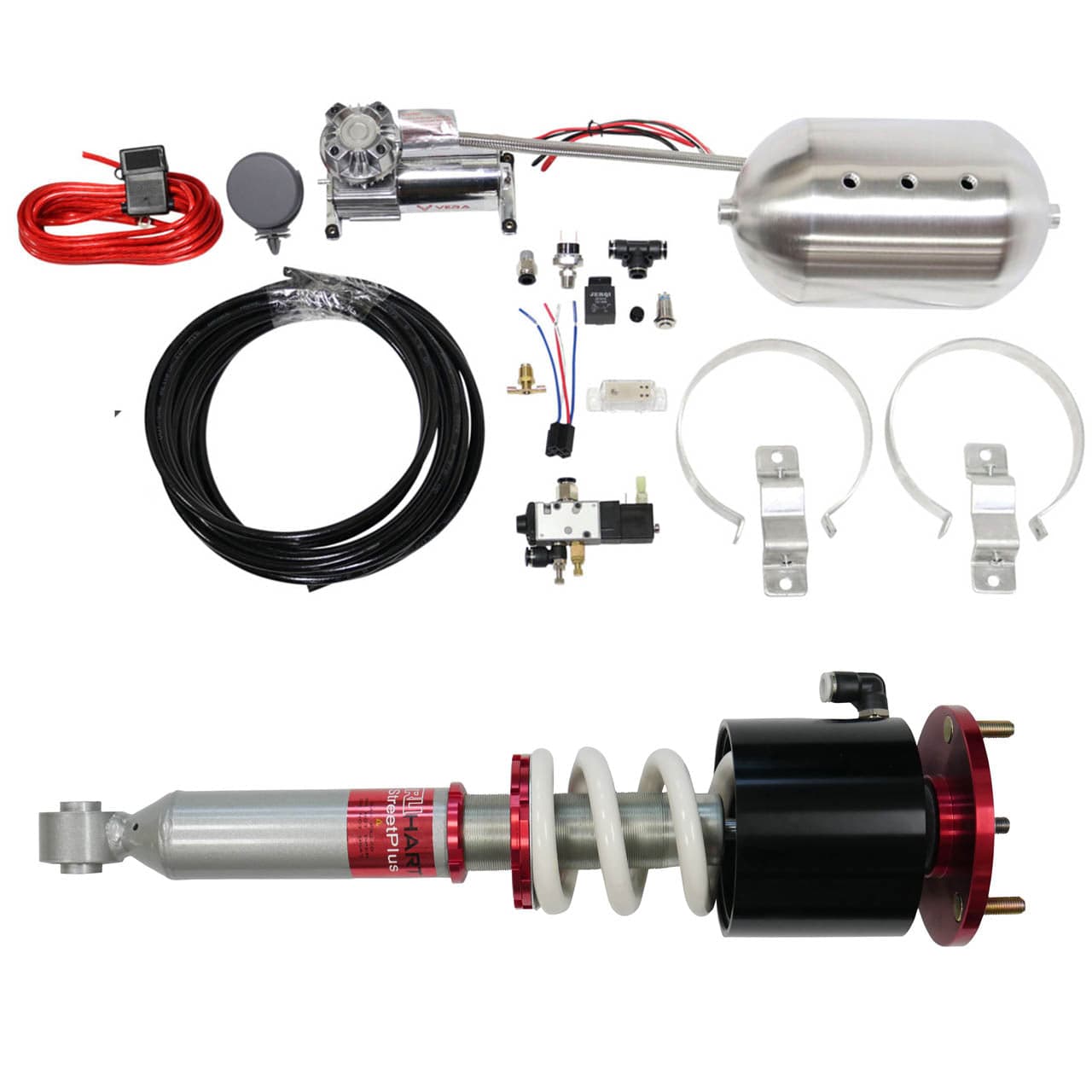

Compatible with the front of TruHart StreetPlus Coilovers. This complete kit uses a 3-way electronic Valve with LED lit button that can easily be integrated into your vehicles dash. The vehicle will lift to full height when the button is engaged and drop back to standard height when pressed again to release.

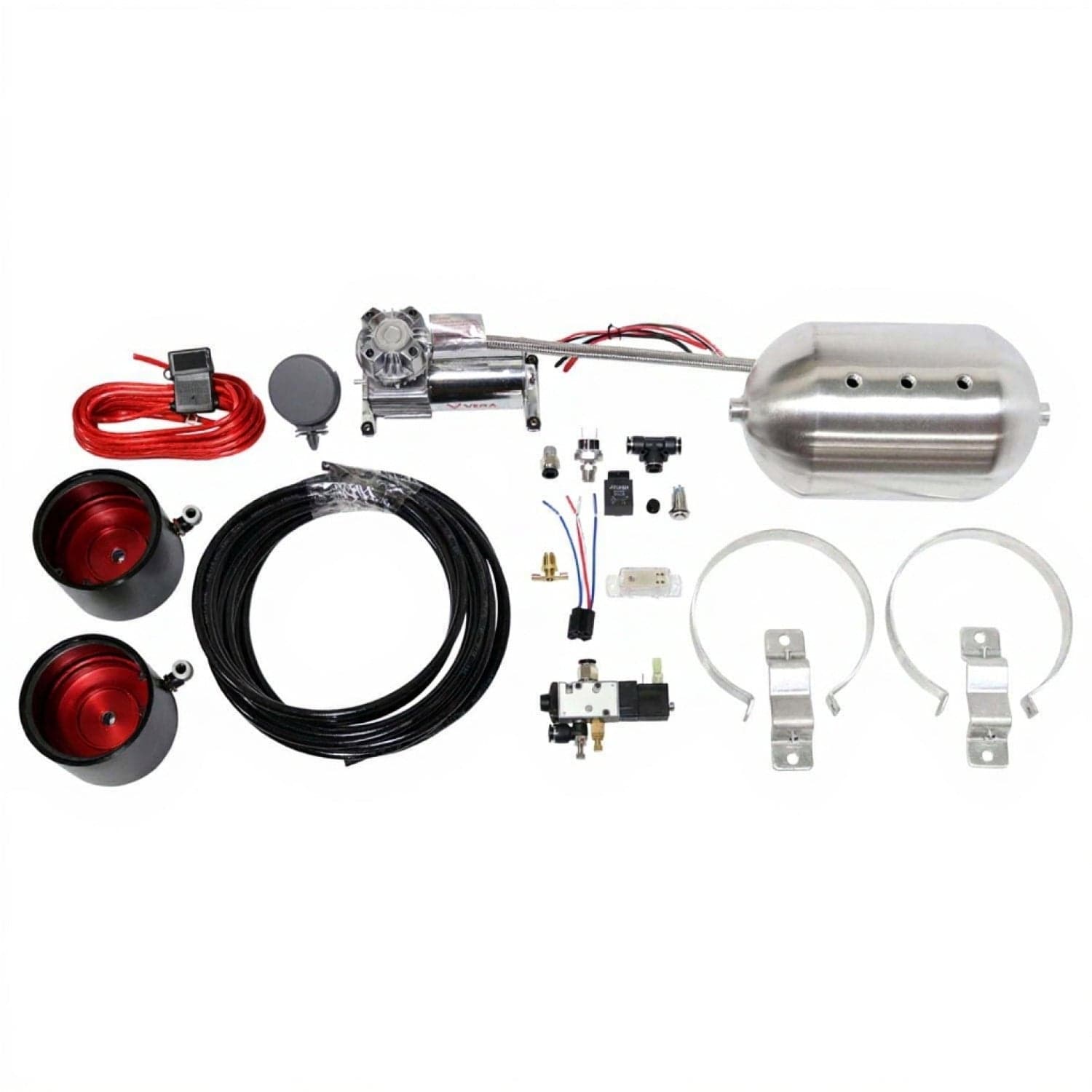

Features
- (2) Air Cups
- 1.5 Gallon Seamless aluminum tank with mounting brackets
- VERA 100C Compressor
- IMI 3-way Valve LED Backlit Switch
- All necessary fittings, switches and air lines
Specifications
| Part Number | TH-F805-VACF-20+TH-ACK02 |
| Part Name | StreetPlus Coilovers |
| Vehicle | 2013-2018 Ford C-Max |
| Quantity | 6 Pieces (4 Coilovers, 2 Front Air Cups) plus management system |
| Placement | Front & Rear |
| Chassis Code | C214 |
| Drivetrain | FWD |
| Damping Adjustment | Non-Adjustable |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 9 kg/mm |
| Spring Rate - Rear | 4.7 kg/mm |
| Series | StreetPlus |
| Air Cup Lift Height | 2.0 in. |
| Material | Billet Aluminum |
| Notes | - |
