Product Details

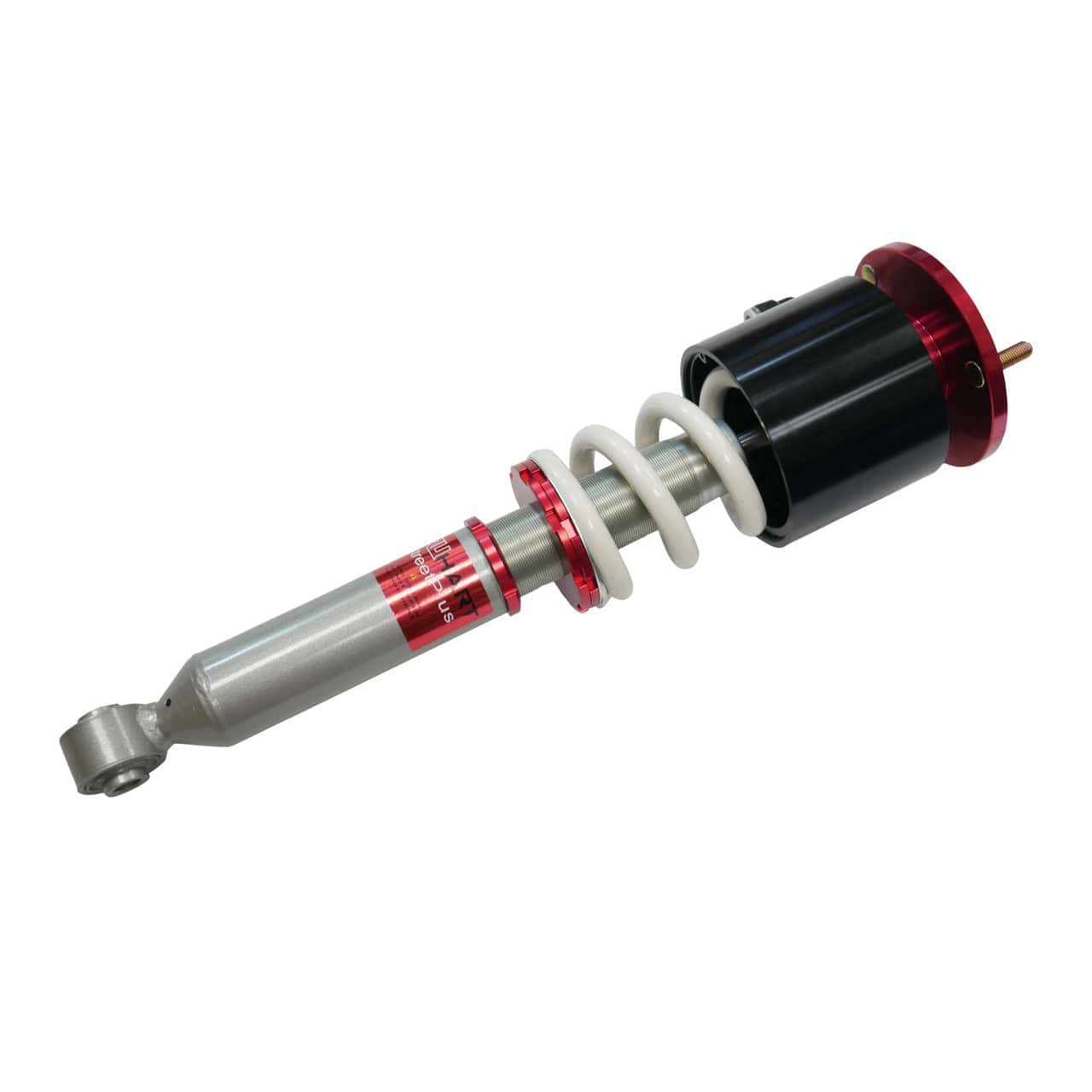

The StreetPlus Coilover for the 2005-2008 Dodge Magnum (LX) is an ideal solution for the budget-minded buyer looking for a solution to lower their vehicle while drastically improving the handling characteristics. VERA Air Cup Kit provides on demand height adjustment while maintaining the performance and reliability that users expect from coilovers.
Manufactured from CNC billet aluminum with a double sealed piston which with the push of a button can raise the vehicle up to 2 Inch in seconds.
This height increase allows lowered vehicles to clear speed bumps, driveway inclines/declines and trailers with ease.
Features
- Compatible with the front of TruHart StreetPlus Coilovers, cup kit management system also required.
- Includes Upper Mounts, adjustable lower mounts
- CNC-machined billet aluminum air cups with a double-sealed piston for durability and reliability.
- Raises the front by up to 2 inches when actuated.
- Uses a pneumatic push-action valve to control "Up and Down" of the cups; the switch can be mounted in dash or console.
Specifications
| Part Number | TH-D802-VACF-12 |
| Part Name | StreetPlus Coilovers |
| Vehicle | 2005-2008 Dodge Magnum |
| Quantity | 6 Pieces (4 Coilovers, 2 Front Air Cups) |
| Placement | Front & Rear |
| Chassis Code | LX |
| Drivetrain | RWD |
| Damping Adjustment | Non-Adjustable |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 14 kg/mm |
| Spring Rate - Rear | 15 kg/mm |
| Series | StreetPlus |
| Air Cup Lift Height | 2.0 in. |
| Material | Billet Aluminum |
| Notes | - |
