Product Details

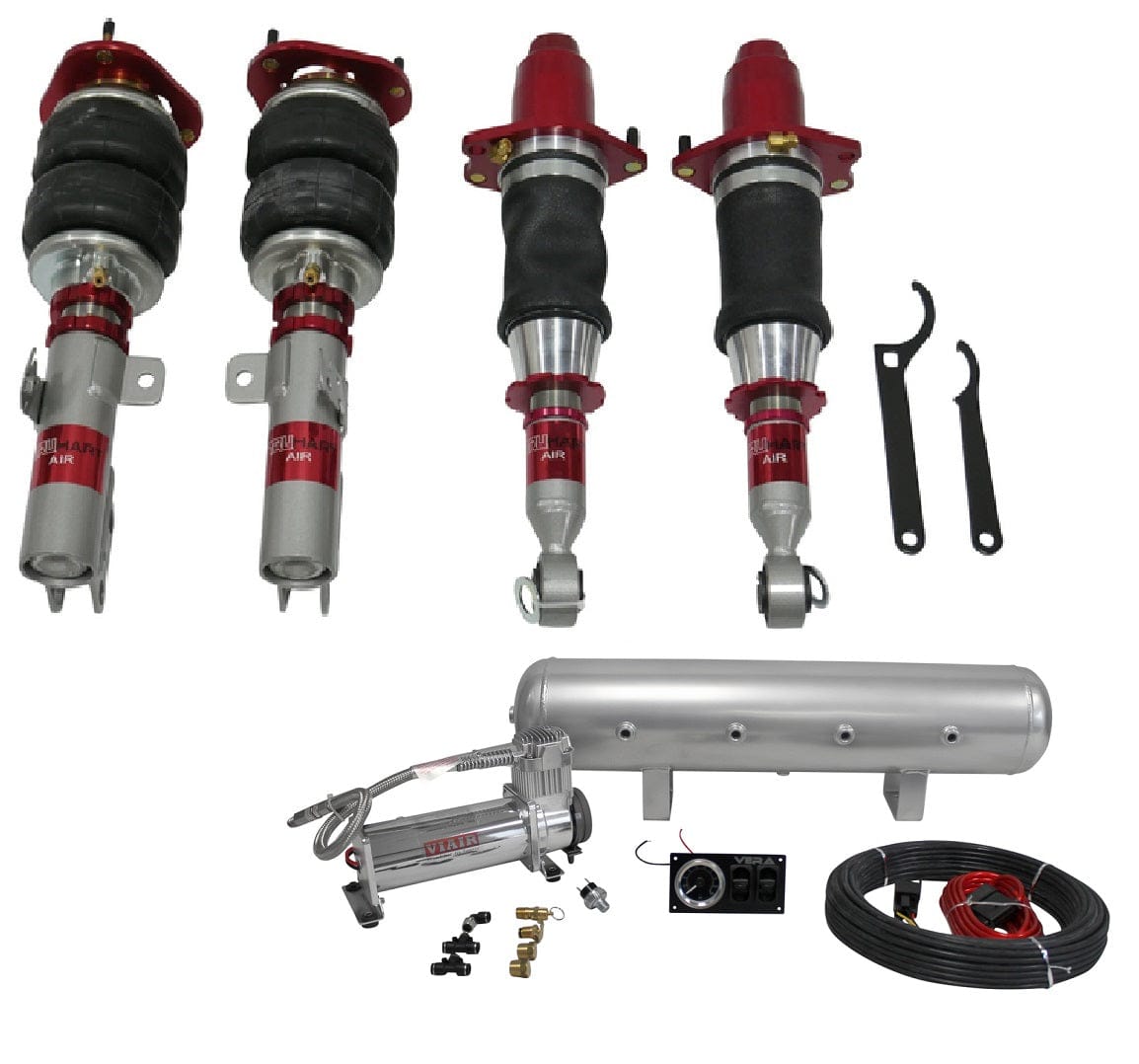

AirPlus Air Struts for your 2003-2013 Toyota Matrix (E130/E140) allow for entry into air suspension without breaking the bank. When raised AirPlus Air Struts allow for clearance for speed bumps, dips, driveways and road hazards and when deflated allow your vehicle to drop all the way to the ground.
VERA Air Management systems are also available from entry level analog systems to full digital systems with presets and Bluetooth.
- Front: 50mm twin-tube struts, camber plates, double bellow bags
- Rear: 44mm twin-tube struts, aluminum top mounts, sleeve bags
Features
- Entry-level manual air suspension management. No digital presets or automatic ride height sensing.
- Everything needed for a basic install: struts + air springs + manual management kit.
- Easily upgradable later to higher-tier TruHart/VERA systems (Evo, Evo Bluetooth, Elite) if desired.
- Front struts: 50 mm twin-tube shocks, with camber plates.
- Rear struts: 44?mm twin?tube shocks, using double bellow bags in many fitments
- Dual pneumatic paddle valve controllers (one for front & one for rear) for manually controlling inflation/deflation.
Specifications
| Part Number | TH-T1003+TH-MM01 |
| Part Name | Air Strut Kit |
| Vehicle | 2003-2013 Toyota Matrix |
| Quantity | 4 Air Struts plus management system |
| Placement | Front & Rear |
| Chassis Code | E130/E140 |
| Drivetrain | FWD |
| Damping Adjustment | Non-Adjustable |
| Ride-Height Adjustable | Yes |
| Top Mounts - Front | Camber Plates |
| Top Mounts - Rear | Aluminum Top Mounts |
| Damper - Front | 50mm Twin-Tube |
| Damper - Rear | 44mm Twin-Tube |
| Air Spring - Front | Double Bellow |
| Air Spring - Rear | Sleeve |
| Series | AirPlus |
| Notes | - |
