Product Details

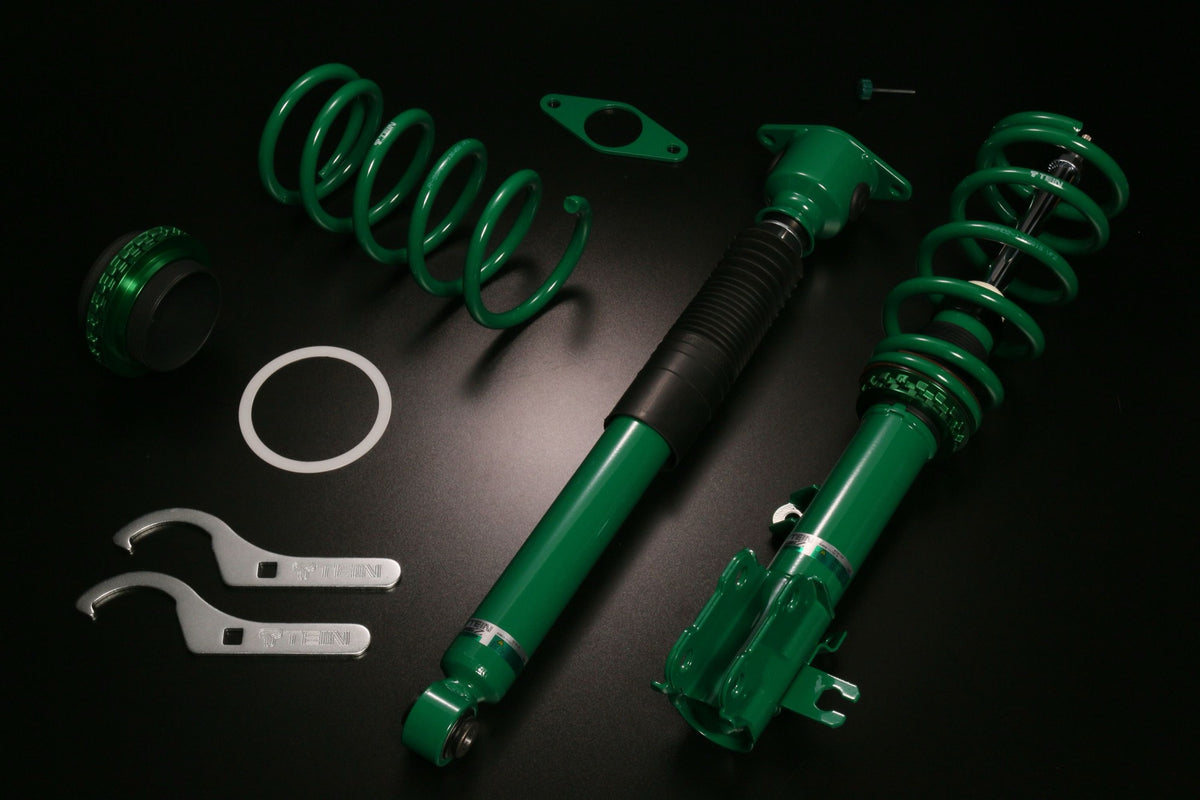

The TEIN Street Advance Z Coilovers for the 2017-2025 Mazda CX-5 FWD/AWD (KF) are for owners who want more performance from a coilover system, with a stiffer but still comfortable ride and a more aggressive stance. The kit keeps plenty of shock travel even below the standard ride height.
Street Advance Z uses a twin-tube damper with a larger piston, a ZT-coated threaded sleeve, and a powder-coated body for long service life. It is backed by TEIN's 1-year manufacturer's limited warranty.
Features
- 16-Way Damping Adjustment - A much more noticeable change in damping force than TEIN's earlier street dampers.
- Twin-Tube Construction - Larger piston diameter for strut-type suspensions.
- Ride Height Adjustment - Adjusts through the spring seat.
- ZT-Coated Adjustment Tube - Non-welded and coated for durability.
- Powder-Coated Damper Body - Protects the body from corrosion.
- EDFC Compatible - Works with TEIN EDFC controllers (sold separately).
Specifications
| Part Number | GSW04-91AS3 |
| Part Name | TEIN Street Advance Z Coilovers |
| Vehicle | 2017-2025 Mazda CX-5 |
| Quantity | 4 Coilovers (2 Front, 2 Rear) |
| Placement | Front & Rear |
| Chassis Code | KF |
| Drivetrain | FWD/AWD |
| Damping Adjustment | 1-Way (16 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 5 kg/mm (280 lbs/in) |
| Spring Rate - Rear | 4.5 kg/mm (252 lbs/in) |
| Top Mounts - Front | OEM (reuses factory mount) |
| Top Mounts - Rear | Reinforced Rubber Mount |
| EDFC Compatible | Yes |
| Notes | - |
