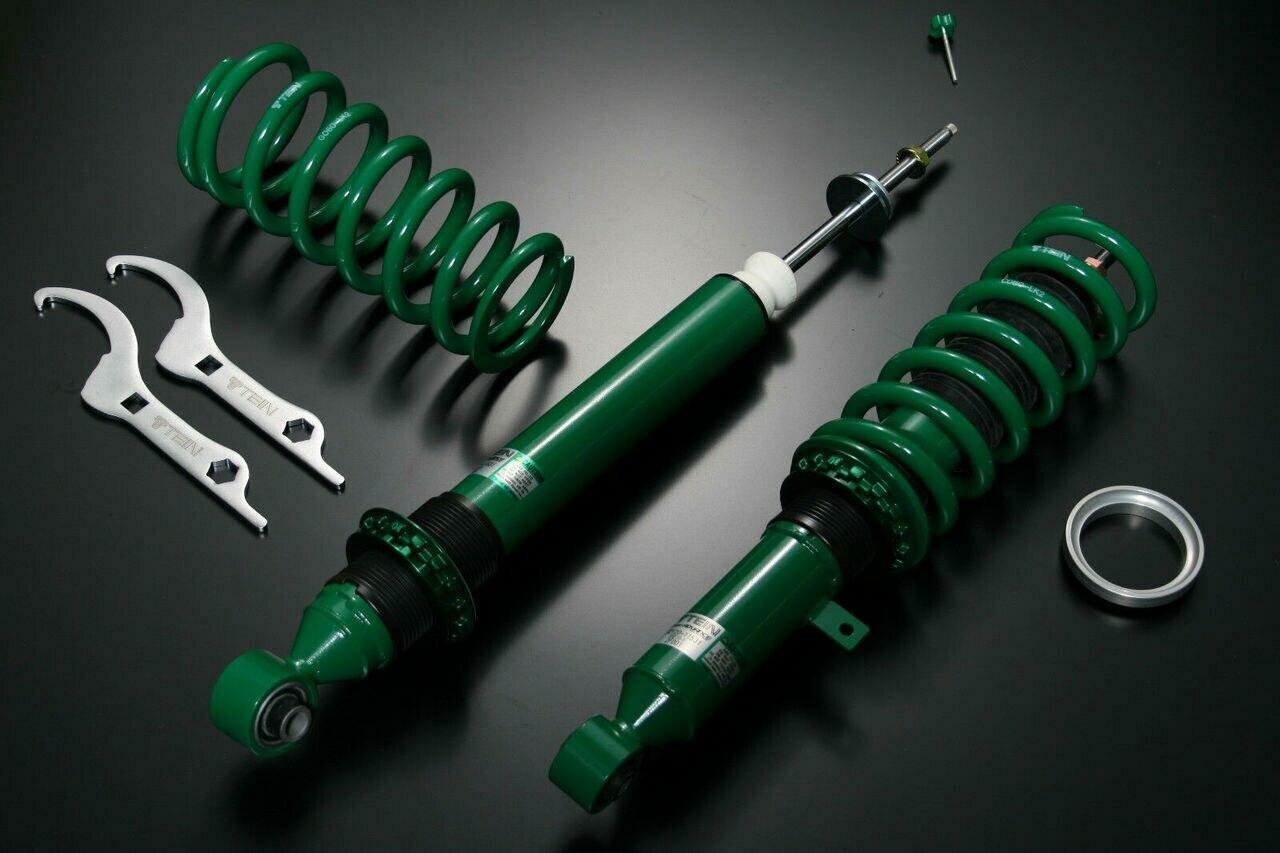

TEIN Street Advance Z Coilovers - 1998-2005 Lexus GS300 RWD (JZS160L)

Name: TEIN Street Advance Z Coilovers - 1998-2005 Lexus GS300 RWD (JZS160L)
Brand: TEIN
Price: 589.0 USD
Availability: InStock

$589.00 ~~$620.00~~ On Sale

In Stock (only 1 left)

Authorized Retailer

100% Authorized Retailer.

Free Shipping

Orders $250+ ship for free.*

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Buy now, pay later.

Description
Specifications
Vehicle Fitment
Warranty
Important Notes

Description

TEIN Street Advance Z Coilovers for your 1998-2005 Lexus GS300 RWD (JZS160L) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.

Standard Features

Steel Construction
Twin Tube internal construction
Larger piston diameter for strut type front and rear (22mm)
16-way Damping adjustment with over 200% increase in damping force change.*
Ride Height adjustable via spring seat
Powder coated damper body
Non-welded ZT coated Adjustment Tube
Full-Length Dust Boots
1-piece Aluminum Spring Seat with Delrin Thrust Washer
Available for Overhaul
1-year Manufacturers Defect Warranty

*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

Contents of Damper Kit

4 TEIN Coilover Shocks
4 TEIN Coilover Springs (no sag version)**
4 Rubber Bump Stops
2 Hook Spanners
4 Spring Seats
4 Spring Locks
4 Dust Covers(some kits reuse stock dust covers)***
4 Delrin Thrust Washers
1 TEIN Sticker Sheet****
1 Instruction Manual

**Some applications include helper springs
***Some kits will retain use of OEM Dust Covers Spring Seats ”Instruction Manual”
****(Note that Stickers do not come included for all JDM part numbers and for certain applications)

Specifications

Part Number	GST76-91SS2
Part Name	Street Advance Z Coilovers
Vehicle	1998-2005 Lexus GS300 RWD (JZS160L)
Chassis	JZS160L
Engine	3000
Adjustment Type	1-Way
Damping Adjustable - Front	Yes
Damping Adjustable - Rear	Yes
Ride-Height Adjustable - Front	No
Ride-Height Adjustable - Rear	No
Upper Mounts - Front	OEM
Upper Mounts - Rear	OEM
Spring Rates - Front	10 Kg/mm (559.97 lbs/in)
Spring Rates - Rear	9 Kg/mm (503.98 lbs/in)
Ride Height Range - Front	-0.3 to -3.5
Ride Height Range - Rear	-0.7 to -3.5
EDFC Compatible	Yes

Vehicle Fitment

Warranty

TEIN's warranty covers new TEIN products within one year (from date of purchase) when purchased from a TEIN Authorized Dealer (Springrates.com). Warranty claims require the part be sent to TEIN for inspection along with the receipt and the Overhaul Agreement Form.

TEIN Warranty Links

Important Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.
