TEIN Street Advance Z Coilovers - 1993-1996 Mazda RX-7 RWD (FD3S) GSM32-9USS2
TEIN Street Advance Z Coilovers - 1993-1996 Mazda RX-7 RWD (FD3S) GSM32-9USS2

*Product images may not represent the actual SKU.

TEIN

SKU: GSM32-9USS2

TEIN Street Advance Z Coilovers - 1993-1996 Mazda RX-7 RWD (FD3S)

$560.50 $590.00 On Sale
In Stock
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Check if this fits your vehicle

Select a Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Fits your vehicle

Change Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Does not fit your vehicle

Change Vehicle

Authorized Retailer
100% Authorized Retailer.
Free Shipping
Orders $250+ ship for free.*
Best Price Guarantee
Lowest price on all products.
0% APR Financing
Buy now, pay later.

TEIN Street Advance Z Coilovers for your 1993-1996 Mazda RX-7 RWD (FD3S) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.


Standard Features

  • Steel Construction
  • Twin Tube internal construction
  • Larger piston diameter for strut type front and rear (22mm)
  • 16-way Damping adjustment with over 200% increase in damping force change.*
  • Ride Height adjustable via spring seat
  • Powder coated damper body
  • Non-welded ZT coated Adjustment Tube
  • Full-Length Dust Boots
  • 1-piece Aluminum Spring Seat with Delrin Thrust Washer
  • Available for Overhaul
  • 1-year Manufacturers Defect Warranty

    *Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

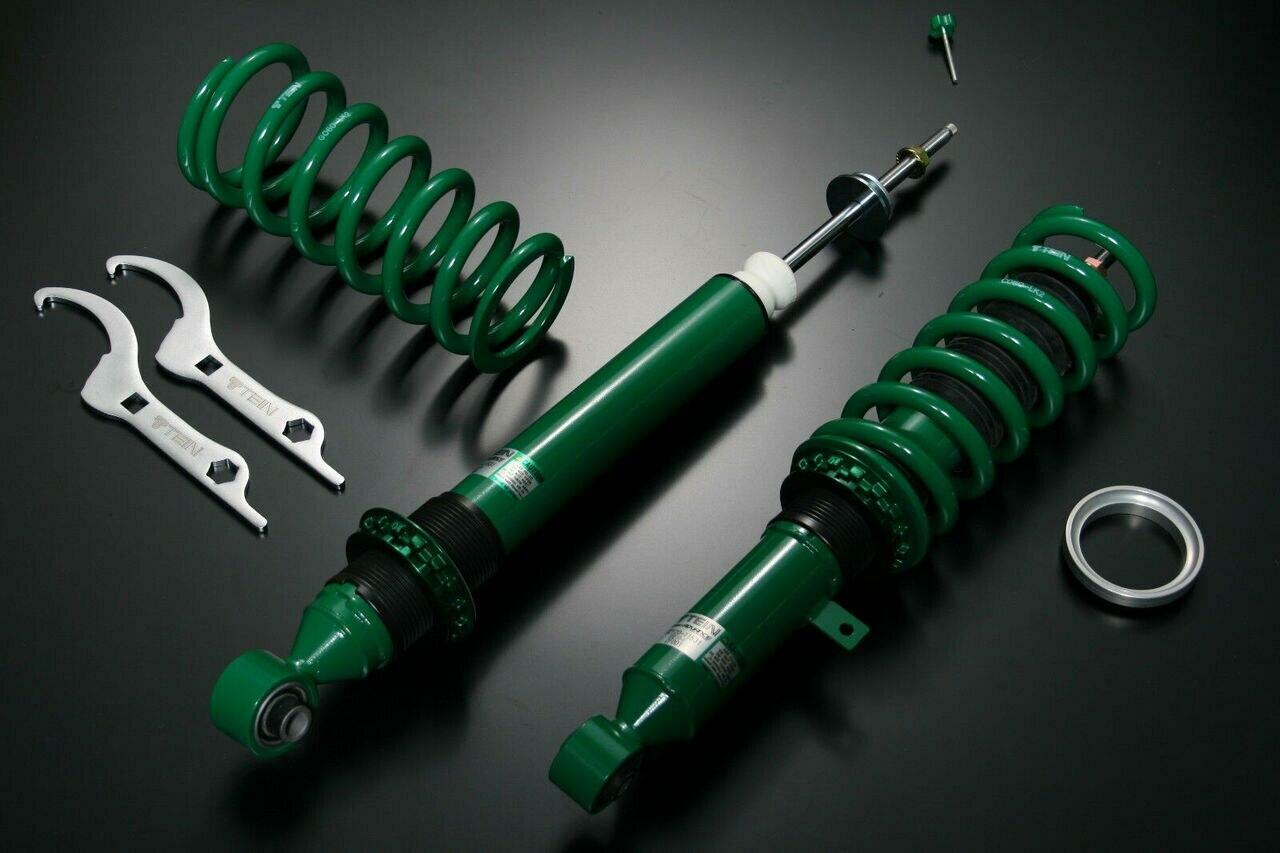

Contents of Damper Kit

  • 4 TEIN Coilover Shocks
  • 4 TEIN Coilover Springs (no sag version)**
  • 4 Rubber Bump Stops
  • 2 Hook Spanners
  • 4 Spring Seats
  • 4 Spring Locks
  • 4 Dust Covers(some kits reuse stock dust covers)***
  • 4 Delrin Thrust Washers
  • 1 TEIN Sticker Sheet****
  • 1 Instruction Manual

    **Some applications include helper springs
    ***Some kits will retain use of OEM Dust Covers Spring Seats ”Instruction Manual”
    ****(Note that Stickers do not come included for all JDM part numbers and for certain applications)

Part Number GSM32-9USS2
Part Name Street Advance Z Coilovers
Vehicle 1993-1996 Mazda RX-7 RWD (FD3S)
Chassis FD3S
Engine 1308
Adjustment Type 1-Way
Damping Adjustable - Front Yes
Damping Adjustable - Rear Yes
Ride-Height Adjustable - Front No
Ride-Height Adjustable - Rear No
Upper Mounts - Front OEM
Upper Mounts - Rear OEM
Spring Rates - Front 10 Kg/mm (559.97 lbs/in)
Spring Rates - Rear 8 Kg/mm (447.98 lbs/in)
Ride Height Range - Front -0.9 to -3.8
Ride Height Range - Rear -0.5 to -3.5
EDFC Compatible No
Notes OE mount needs to be modified with included file.
  • 1993 Mazda RX-7 RWD (FD3S)
  • 1994 Mazda RX-7 RWD (FD3S)
  • 1995 Mazda RX-7 RWD (FD3S)
  • 1996 Mazda RX-7 RWD (FD3S)

TEIN's warranty covers new TEIN products within one year (from date of purchase) when purchased from a TEIN Authorized Dealer (Springrates.com). Warranty claims require the part be sent to TEIN for inspection along with the receipt and the Overhaul Agreement Form.

TEIN Warranty Links

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
