Product Details
TEIN Street Advance Z Coilovers for your 2009-2013 Mazda Mazdaspeed Axela FWD (BL3FW) are designed for those who want more performance from their coilover system. Designed to provide a stiffer yet comfortable ride and aggressive stance, the street advance coilovers have 16 way adjustable settings giving you a much more noticeable feel in damping force change. These coilovers provide plenty of shock travel even lower than standard vehicle ride height. These coilovers adjust via an ultra strong ZT coated threaded sleeve and have updated internal components as well as external coating to dramatically increase durability and product life. Excellent choice for daily driving, and great for weekend track use.
Standard Features
- Steel Construction
- Twin Tube internal construction
- Larger piston diameter for strut type front and rear (22mm)
- 16-way Damping adjustment with over 200% increase in damping force change.*
- Ride Height adjustable via spring seat
- Powder coated damper body
- Non-welded ZT coated Adjustment Tube
- Full-Length Dust Boots
- 1-piece Aluminum Spring Seat with Delrin Thrust Washer
- Available for Overhaul
- 1-year Manufacturers Defect Warranty
*Over comparable Super Street damper, based on damping dyno graph data. Increase in damping force over comparable Super Street damper may vary for specific vehicle applications.

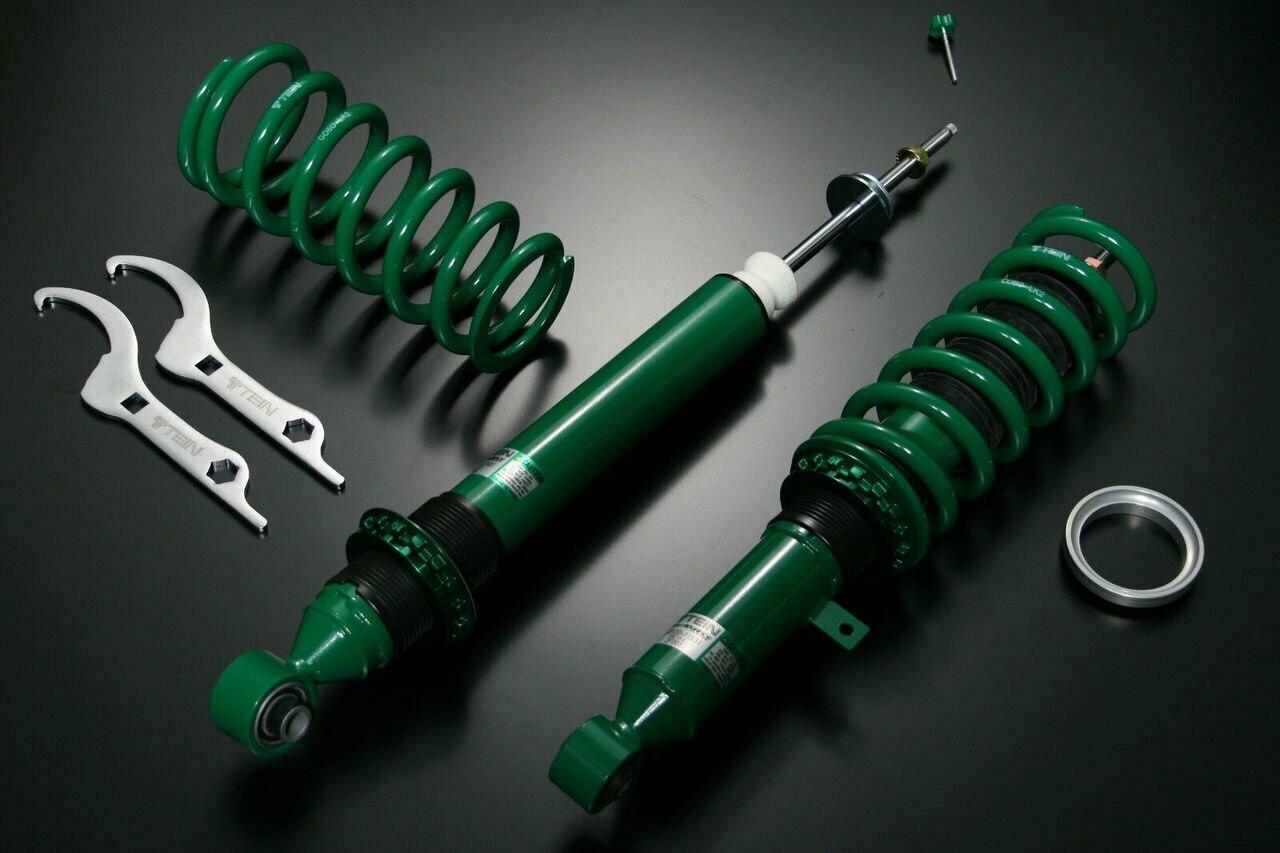

Contents of Damper Kit
- 4 TEIN Coilover Shocks
- 4 TEIN Coilover Springs (no sag version)**
- 4 Rubber Bump Stops
- 2 Hook Spanners
- 4 Spring Seats
- 4 Spring Locks
- 4 Dust Covers(some kits reuse stock dust covers)***
- 4 Delrin Thrust Washers
- 1 TEIN Sticker Sheet****
- 1 Instruction Manual
**Some applications include helper springs
***Some kits will retain use of OEM Dust Covers Spring Seats "Instruction Manual"
****(Note that Stickers do not come included for all JDM part numbers and for certain applications)
Specifications
| Part Number | GSM98-91AS3 |
| Part Name | Street Advance Z Coilovers |
| Vehicle | 2009-2013 Mazda Mazdaspeed Axela |
| Chassis Code | BL3FW |
| Engine | 2300 |
| Drivetrain | FWD |
| Ride-Height Adjustable | No |
| Damping Adjustment | 4-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Upper Mount - Front | OEM |
| Upper Mount - Rear | Reinforced Rubber |
| Ride Height Range - Front | -0.6 to -2.5 |
| Ride Height Range - Rear | -2 to -0.6 |
| Spring Rate - Front | 5 kg/mm (280 lbs/in) |
| Spring Rate - Rear | 4 kg/mm (224 lbs/in) |
| EDFC Compatible | Yes |
| Notes | If Lowering Below Recommended Ride Height Range Using OE Tire/Wheel Size, Spring Seat May Interfere with Tire. Make Sure to Check There is No Interference, Before Adjusting Ride Height. Recommended Tire: 225/40-18, Wheel: 18X7.5J Inset Less Than 48. |
Vehicle Fitment
- 2009 Mazda Mazdaspeed Axela FWD (BL3FW)
- 2010 Mazda Mazdaspeed Axela FWD (BL3FW)
- 2011 Mazda Mazdaspeed Axela FWD (BL3FW)
- 2012 Mazda Mazdaspeed Axela FWD (BL3FW)
- 2013 Mazda Mazdaspeed Axela FWD (BL3FW)
