Product Details

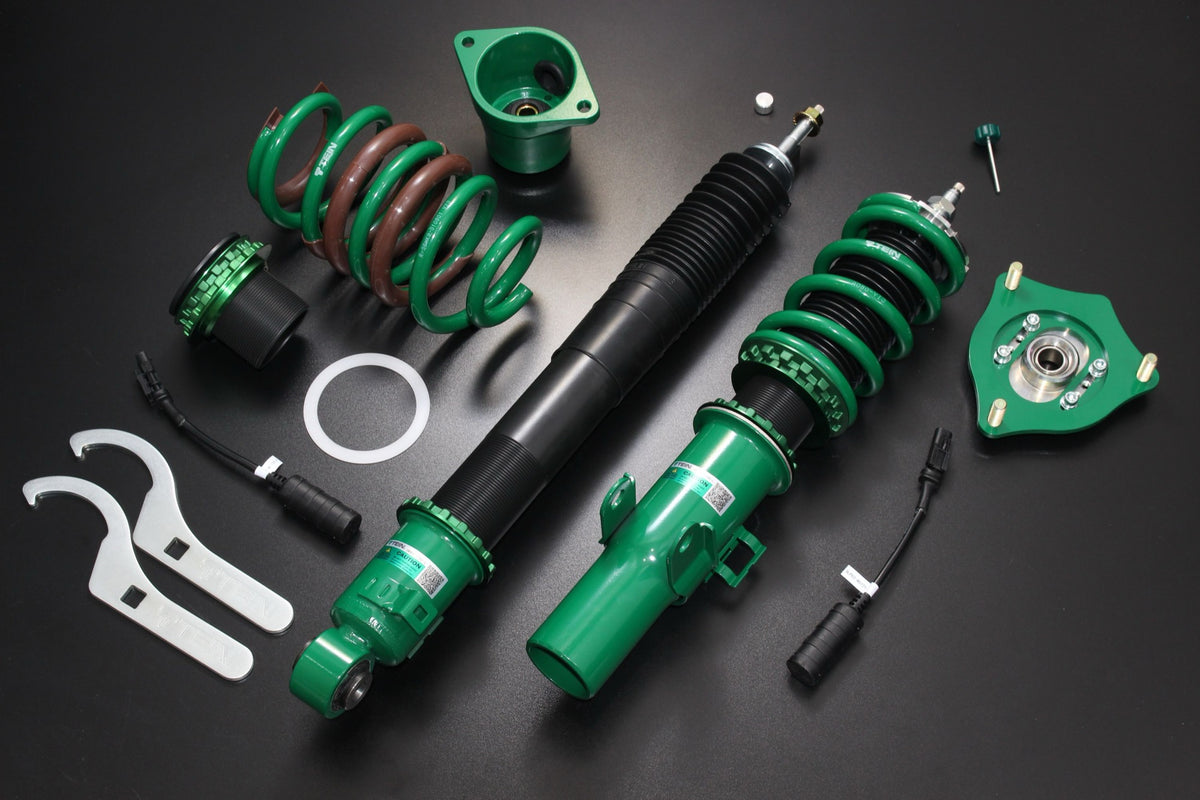

The TEIN RX1 Coilovers for the 2024-2026 Acura Integra (DE5) are a performance-oriented, fully adjustable suspension that balances sharp handling with daily comfort. Ride height is set at the threaded lower seat, so the car can be lowered without losing damper stroke.
RX1 uses a twin-tube damper with long stroke and low repulsion force for a controlled ride over uneven roads, and a Hydraulic Bump Stopper that replaces conventional bump rubbers. It works with TEIN's optional EDFC controller, so damping can be adjusted from inside the car.
Features
- 16-Level Damping Adjustment - One dial changes compression and rebound together.
- Twin-Tube Damper - Long stroke and low repulsion force for a smooth ride.
- Hydraulic Bump Stopper (H.B.S.) - Converts hard impacts into heat to reduce harsh rebound.
- Full-Length Ride Height Adjustment - Ride height is set at the threaded lower seat.
- Camber-Adjustable Lower Bracket - On applicable models, camber changes by rotating eccentric washers.
- EDFC Compatible - Works with TEIN EDFC controllers (sold separately).
- Rustproof Finish - TEIN green powder coat on the mounts and brackets.
Specifications
| Part Number | VSHK8-M1AS4 |
| Part Name | TEIN RX1 Coilovers |
| Vehicle | 2024-2026 Acura Integra |
| Quantity | 4 Coilovers (2 Front, 2 Rear) |
| Placement | Front & Rear |
| Chassis Code | DE5 |
| Drivetrain | FWD |
| Damping Adjustment | 1-Way (16 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 8 kg/mm (448 lbs/in) |
| Spring Rate - Rear | 8 kg/mm (448 lbs/in) |
| Top Mounts - Front | Camber Adjustable Mount |
| Top Mounts - Rear | Reinforced Rubber Mount |
| Ride Height Range - Front | -0.2 to -2.1 in |
| Ride Height Range - Rear | -0.6 to -2.7 in |
| EDFC Compatible | Yes |
| Notes |
|
