Product Details

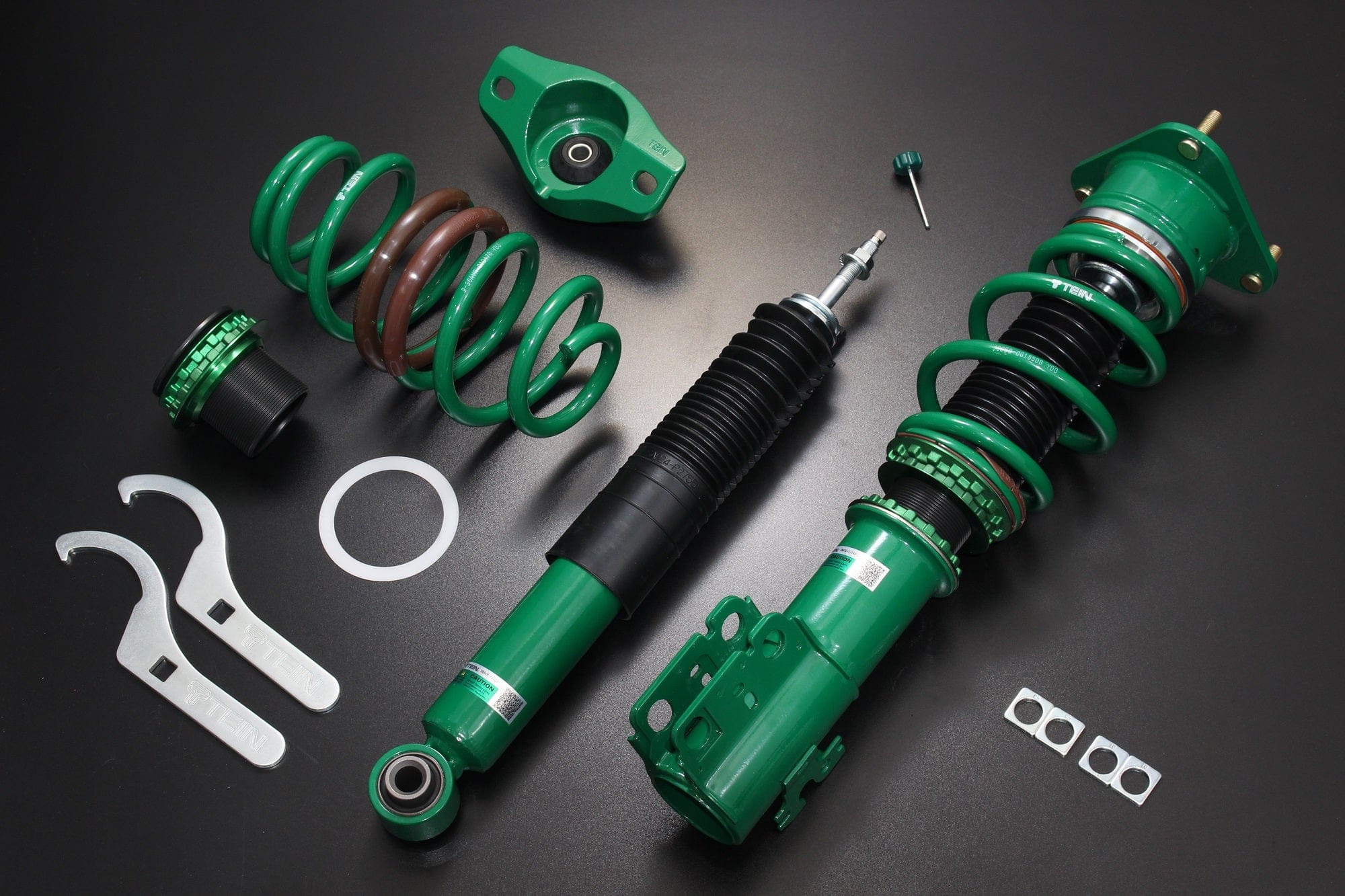

The TEIN RX1 Coilover Kit for your 2016-2019 Toyota Mark X 250RDS, 250S, 250G, 250G F Package RWD (GRX130) is a performance-oriented, full-length adjustable suspension system that strikes an excellent balance between sportiness and daily comfort. It uses a twin-tube damper design that delivers long stroke and low repulsion force, improving ride quality over uneven surfaces. A Hydraulic Bump Stopper (H.B.S.) mechanism replaces conventional bump rubbers, converting hard impacts into thermal energy to reduce harsh rebound. The kit features 16-level damping adjustment for precise tuning of compression and rebound. Ride height is fully adjustable via a threaded lower seat, allowing you to lower or raise your car while maintaining damper travel. You also get camber-adjustable lower brackets, giving fine control over alignment by rotating eccentric washers.
Mounts are included - either reinforced rubber or pillow-ball, depending on the model - tailored to each application. Built with no-sag springs (SAE9254 steel) and durable TEIN-Green powder-coated bodies, it's both durable and resistant to corrosion. The damper oil is specially formulated for high-performance use, offering stable viscosity across a wide temperature range and excellent anti-foaming properties. Plus, the RX1 is compatible with TEIN's optional EDFC electronic damping controller, letting you adjust damping from inside the car for even more tuning flexibility.
Standard Features
- Hydraulic Bump Stopper (H.B.S.): Converts hard impacts into thermal energy to reduce harsh rebound.
- Camber-adjustable lower bracket: Allows camber tuning via eccentric washer rotation.
- Full-length ride height adjustment: Separate control of ride height without compromising damper stroke.
- Twin-tube damper design: Provides long stroke and smooth ride with less repulsive force.
- 16-level damping force adjustment: Tunable compression + rebound via a single dial.
- Durable construction: No-sag SAE9254 steel springs, corrosion-resistant ZT coating + TEIN-green powder coat, and a tough dust boot.
Specifications
| Part Number | VSQ22-M1SS3 |
| Part Name | RX1 Coilovers |
| Vehicle | 2016-2019 Toyota Mark X 250RDS, 250S, 250G, 250G F Package |
| Chassis Code | GRX130 |
| Engine | 2500 |
| Drivetrain | RWD |
| Ride-Height Adjustable | Yes |
| Damping Adjustment | 4-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Upper Mount - Front | Reinforced Rubber |
| Upper Mount - Rear | Reinforced Rubber |
| Ride Height Range - Front | -0.2 to -3.8 |
| Ride Height Range - Rear | -5.4 to 0 |
| Spring Rate - Front | 8 kg/mm (448 lbs/in) |
| Spring Rate - Rear | 8 kg/mm (448 lbs/in) |
| EDFC Compatible | Yes |
| Quantity | Full Set (Front & Rear) |
| Notes | Due to Individual Differences, Inner Fender May Need to be Cut If It Interferes with the Spring. |
Fitment for Mark X coilovers
Fits the 2016-2019 Toyota Mark X 250RDS, 250S, 250G, 250G F Package RWD (GRX130). Each model year is listed below.
