Product Details

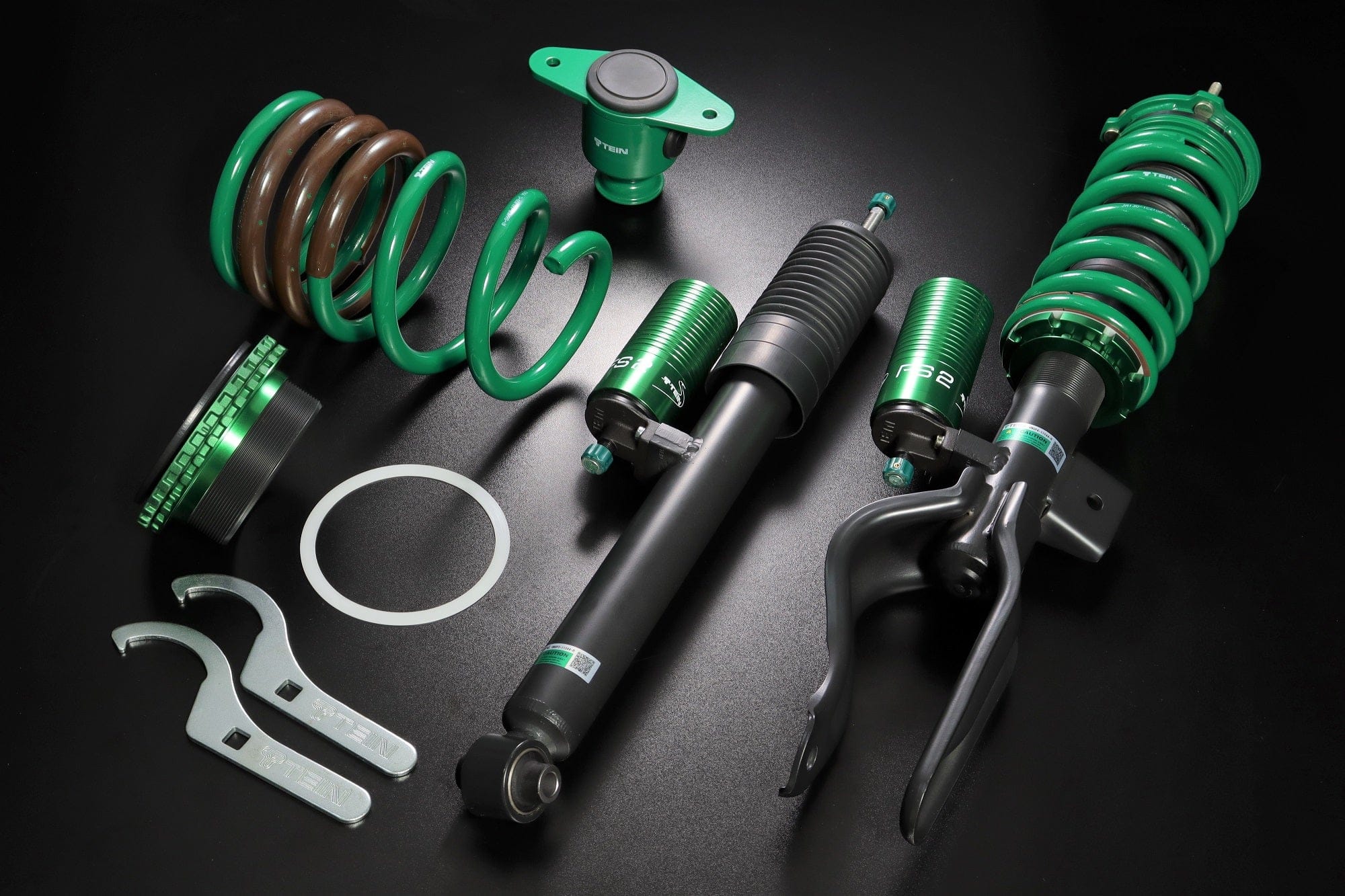

The TEIN FS2 Coilover Kit to your 2020-2025 Tesla Model Y Long Range / Performance 4WD is an advanced, high-performance suspension designed for drivers who demand both comfort and control. It features a twin-tube damper with external reservoirs, which boosts oil capacity and improves thermal dissipation for greater stability under hard driving. The FS2 offers 2-way damping adjustment: 16 levels of simultaneous compression/rebound tuning plus 16 more for compression only, allowing very fine control. It also uses TEIN’s Hydraulic Bump Stopper (H.B.S.) to convert hard impacts into heat, reducing harsh rebound and improving ride comfort, even during heavy loads. Ride height is adjustable via a threaded lower spring seat, and lower mounts include camber-adjustable brackets to dial in alignment. Upper mounts are included (pillow-ball or reinforced rubber, depending on vehicle), and for some models, there are eccentric sleeves for additional camber adjustment.
The FS2 is fully serviceable, with overhaul and revalving options available to customize or refresh its performance. It’s also compatible with TEIN’s EDFC electronic damping controller, letting you adjust damping from inside the car. Durability is a strong point: the kit uses no-sag SAE9254 steel springs, a corrosion-resistant ZTP coating plus TEIN-green powder-coat, and a robust dust boot. High-performance damper oil resists foaming, maintains stable viscosity across temps, and helps the suspension feel consistent - even in demanding driving conditions.
Standard Features
- External reservoir tank for greater oil capacity and better heat dissipation.
- 2-way damping adjustment: 16 levels combined compression & rebound + 16 levels compression-only.
- Hydraulic Bump Stopper (H.B.S.) to absorb large impacts and reduce rebound harshness.
- Camber-adjustable lower brackets via eccentric washer rotation.
- Threaded, ride-height adjustable lower spring seat.
- Twin-tube damper design for long stroke and smoother ride, especially on rough roads.
Specifications
| Part Number | VSGP4-N1AA3 |
| Part Name | FS2 Coilovers |
| Vehicle | 2020-2025 Tesla Model Y Long Range / Performance |
| Drivetrain | 4WD |
| Ride-Height Adjustable | No |
| Damping Adjustment | 2-Way |
| Damping Adjustable - Front | Yes |
| Damping Adjustable - Rear | Yes |
| Upper Mount - Front | Reinforced Rubber |
| Upper Mount - Rear | Reinforced Rubber |
| Ride Height Range - Front | -0.4 to -2.5 |
| Ride Height Range - Rear | -2.2 to -0.3 |
| Spring Rate - Front | 13 kg/mm (728 lbs/in) |
| Spring Rate - Rear | 13 kg/mm (728 lbs/in) |
| Notes | RR: Interior Needs to be Cut or Removed, to Avoid Interference. |
Vehicle Fitment
- 2020 Tesla Model Y Long Range / Performance 4WD
- 2021 Tesla Model Y Long Range / Performance 4WD
- 2022 Tesla Model Y Long Range / Performance 4WD
- 2023 Tesla Model Y Long Range / Performance 4WD
- 2024 Tesla Model Y Long Range / Performance 4WD
- 2025 Tesla Model Y Long Range / Performance 4WD
