Product Details

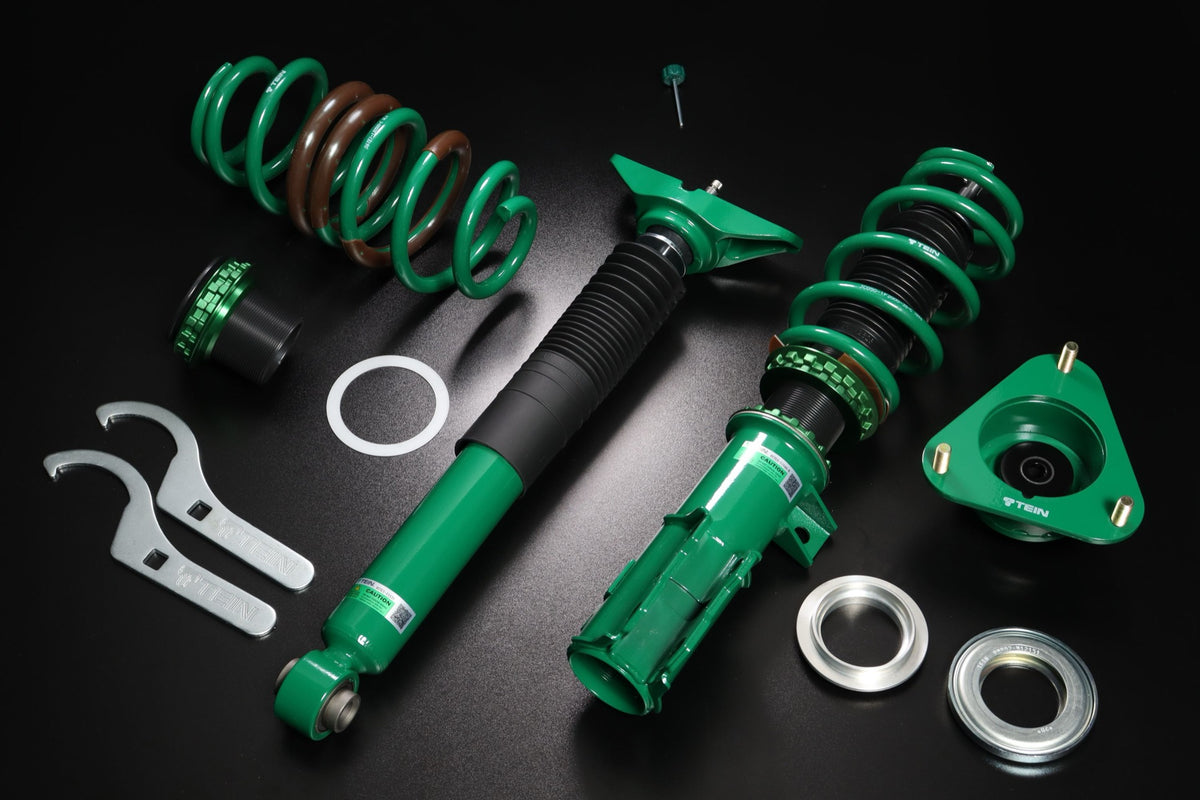

The TEIN Flex Z Coilovers for the 2019-2022 Lexus UX FWD/AWD (MZAA10L/MZAH15L) lower the car and sharpen its handling without giving up everyday comfort. Ride height and spring preload adjust separately, so the dampers keep their full stroke at any height.
Flex Z uses a sealed twin-tube damper that rides smoothly at low speed and stays accurate when you push harder. Each kit includes vehicle-specific upper mounts, a rust-resistant powder coat, and TEIN's ZT coating, and is backed by TEIN's 1-year warranty.
Features
- 16-Level Damping Adjustment - One dial changes compression and rebound together.
- Full-Length Ride Height Adjustment - Ride height changes with the case length, so damper stroke and spring preload stay the same.
- Sealed Twin-Tube Damper - Gives a supple ride on rough roads and accurate control in fast driving. Replacement is by complete damper unit.
- Upper Mounts Included - Vehicle-specific mounts; some applications reuse the factory mount.
- No-Sag Springs - High-tensile SAE9254 steel springs, cold formed and powder coated.
- Rustproof Finish - TEIN green powder coat on the mounts and brackets and ZT coating on the shell case.
- 1-Year Warranty - Backed by TEIN's 1-year warranty.
Specifications
| Part Number | VSTE0-C1AA3 |
| Part Name | TEIN Flex Z Coilovers |
| Vehicle | 2019-2022 Lexus UX |
| Quantity | 4 Coilovers (2 Front, 2 Rear) |
| Placement | Front & Rear |
| Chassis Code | MZAA10L/MZAH15L |
| Drivetrain | FWD/AWD |
| Damping Adjustment | 1-Way (16 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 5 kg/mm (280 lbs/in) |
| Spring Rate - Rear | 5 kg/mm (280 lbs/in) |
| Top Mounts - Front | Reinforced Rubber Mount |
| Top Mounts - Rear | Reinforced Rubber Mount |
| Ride Height Range - Front | +0.2 to -2.2 in |
| Ride Height Range - Rear | -0.1 to -3.1 in |
| EDFC Compatible | Yes |
| Notes |
|
