Product Details

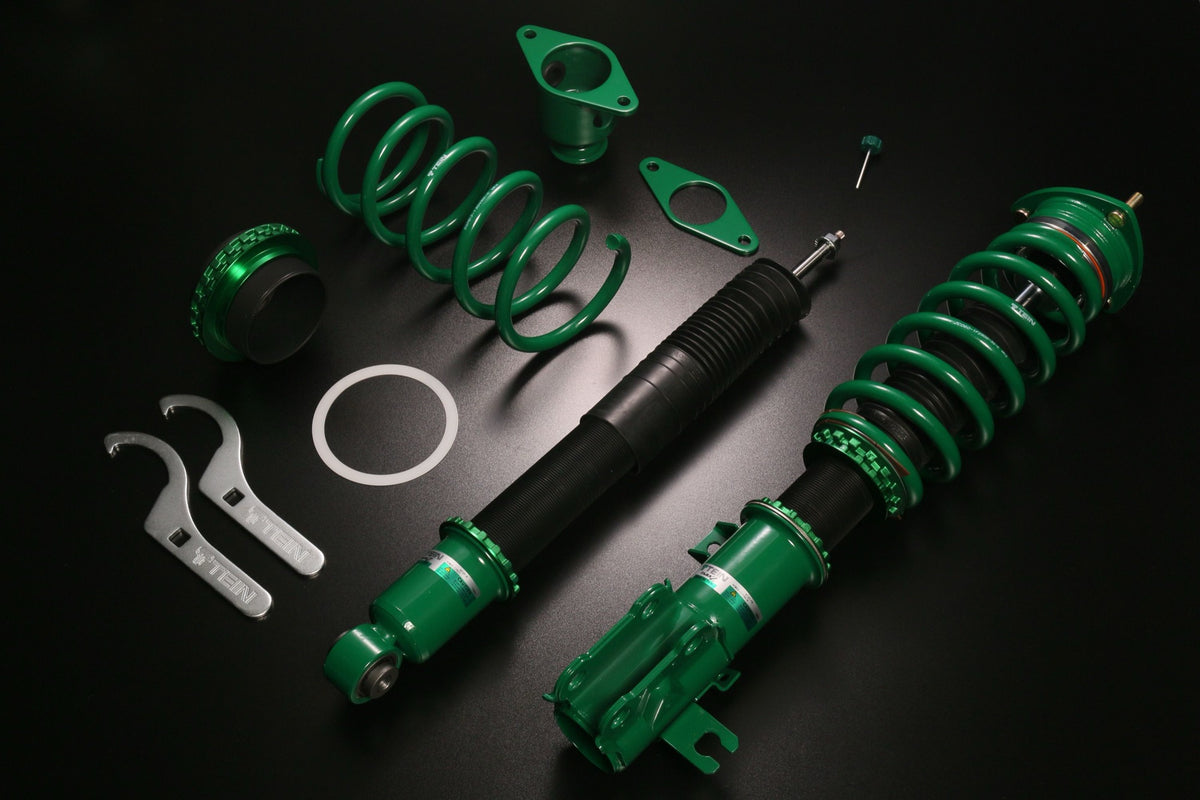

The TEIN Flex Z Coilovers for the 2017-2025 Mazda CX-5 FWD/AWD (KF) lower the car and sharpen its handling without giving up everyday comfort. Ride height and spring preload adjust separately, so the dampers keep their full stroke at any height.
Flex Z uses a sealed twin-tube damper that rides smoothly at low speed and stays accurate when you push harder. Each kit includes vehicle-specific upper mounts, a rust-resistant powder coat, and TEIN's ZT coating, and is backed by TEIN's 1-year warranty.
Features
- 16-Level Damping Adjustment - One dial changes compression and rebound together.
- Full-Length Ride Height Adjustment - Ride height changes with the case length, so damper stroke and spring preload stay the same.
- Sealed Twin-Tube Damper - Gives a supple ride on rough roads and accurate control in fast driving. Replacement is by complete damper unit.
- Upper Mounts Included - Vehicle-specific mounts; some applications reuse the factory mount.
- No-Sag Springs - High-tensile SAE9254 steel springs, cold formed and powder coated.
- Rustproof Finish - TEIN green powder coat on the mounts and brackets and ZT coating on the shell case.
- 1-Year Warranty - Backed by TEIN's 1-year warranty.
Specifications
| Part Number | VSMD2-C1AS3 |
| Part Name | TEIN Flex Z Coilovers |
| Vehicle | 2017-2025 Mazda CX-5 |
| Quantity | 4 Coilovers (2 Front, 2 Rear) |
| Placement | Front & Rear |
| Chassis Code | KF |
| Drivetrain | FWD/AWD |
| Damping Adjustment | 1-Way (16 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 6 kg/mm (336 lbs/in) |
| Spring Rate - Rear | 4.5 kg/mm (252 lbs/in) |
| Top Mounts - Front | Reinforced Rubber Mount |
| Top Mounts - Rear | Reinforced Rubber Mount |
| EDFC Compatible | Yes |
| Notes | - |
